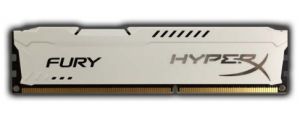

Kingston 4GB (1 x 4GB) PC3-10600 1333MHz Non-ECC DDR3 RAM - 9-9-9 - HyperX Fury White Series

IMG 1 of 1
No Longer Available
Part Number:
316369
(?) Brand:
Kingston Web Site
Manuf No:
HX313C9FW/4
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
HX313C9FW/4, 740617230338
HX313C9FW/4

4GB 512M x 64-Bit DDR3-1333

CL9 240-Pin DIMM

DESCRIPTION

HyperX HX313C9FW/4 is a 512M x 64-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 512M x 8-bit DDR3 FBGA components. This module has been tested to run at DDR3-1333 at latency timing 9-9-9 at 1.5V. The JEDEC standard electrical and mechanical specifications are as follows:

FEATURES

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE  < 95C
  • Asynchronous Reset
  • PCB : Height 1.180 (30.00mm), single sided component

Specifications

  • CL(IDD) 9 cycles
  • Row Cycle Time (tRCmin) 49.125ns (min.)
  • Refresh to Active/Refresh 260ns (min.)
  • Command Time (tRFCmin)
  • Row Active Time (tRASmin) 36ns (min.)
  • Maximum Operating Power TBD W*
  • UL Rating 94 V - 0
  • Operating Temperature 0oC to 85oC
  • Storage Temperature -55oC to +100oC
