All stock codes associated to this product
KR08VU, 9319866399564

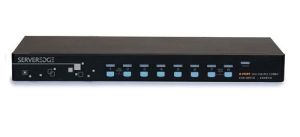

Serveredge 8-Port USB / PS/2 / VGA Combo KVM Switch
Product Description
The Serverdge KVM Switches offer the most reliable and efficient way of managing multiple computers in server rooms where space is at a premium. On Screen Display (OSD) features computer naming, computer selection, status indication, auto scan and much more. Up to 64 servers can be easily managed by cascading multiple KVM switches to expand capacity. Revolutionized video enhancement technology ensures superb quality at resolutions up to 1920 x 1440. For secured connections and space saving, all Serveredge KVM Switches require just one HDB15 connector for each computer connection.
Number of Computer Ports: 8
Number of Cascade Control PCs: 64
Control Buttons on Front Panel: 8
Applicable to computer: PS/2 PC, USB PC, USB-Sun, USB-Mac
On-Screen Display (OSD): Yes
Plug-n-Play: Yes
Hotkey Control: Yes
Computer Name: Entry 14-Character
Auto-Scan Interval: 3, 8,15, 30 Seconds
Programmable Scan Pattern: Yes
Video Resolution: 1920 x 1440, DDC2B
Computer Connectors: HDB15 Female (Grey) x 8
Console Connectors:
Keyboard + Mouse: PS/2 Mini-DIN 6 (Female) x 2
Monitor: HDB15 (Female) x 1
Size: 1U
Power Consumption (Max.): 9V DC, 500mA
- Cascade configuration expands system capability
- 1U-height form factor saves rack spaces
- Unique cables for secured connection
- Auto-scan function automatically selects computer sequentially
- Supports Microsoft IntelliMouse (Pro)
- Assigns computers with individual names
- Identifies and selects computers by chosen names
- Programmable scan filters unused computers
- Stores system settings and name entries to nonvolatile memory
- Password security locks computer from unauthorized access
- Complete control with easy-to-use OSD interface
- Hotkey functions allow easily computer access
- Keyboard states automatically saved and restored while switching computers
- Operating system independent and transparent to all applications
- Plug-n-play system configuration
- Keyboard and mouse can be hot plugged at any time
- DDC2B compatible
- Supports SUN keyboard emulation
- Manages multiple computers from two locations (Two-Access)
