VC812
Overview

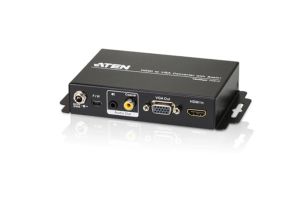

HDMI to VGA Converter with Scaler

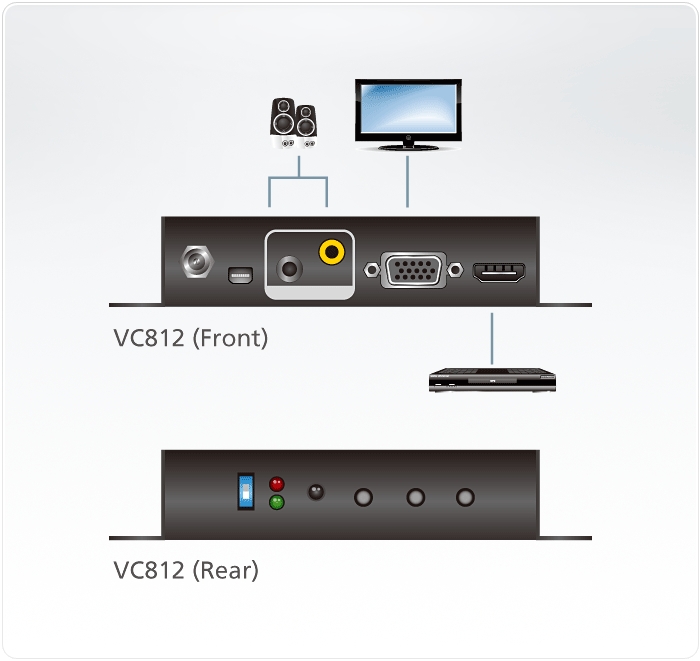

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.
You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.
Package Contents
- 1x VC812 HDMI to VGA Converter with Scaler
- 1x Power Adapter
- 1x Software CD
- 1x User Instructions
Features
- Converts HDMI signals to VGA output
- Supports analog/digital audio
- Superior video quality up to 1080p; 1920 x 1200
- Features a built in high-performance scaler function for best image quality
- Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
- 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
- Features a superior de-interlacer function for smooth video playback quality
- Built-in OSD function for video and system settings configuration
- Integrated superior video noise reduction
- Integrated next generation color engine automatic picture quality/color adjustment and enhancement
- Automatically detects video input signals
- LED indication of power status and source device
- No software required eliminates incompatibility and installation issues
Specifications:
| Connectors |
Input |
HDMI In |
1 x HDMI Type A Female (Black) |
| Output |
Video Out |
1 x HDB-15 Female (Black) |
| Digital |
Coaxial Audio |
1 x RCA female (Yellow) |
| Analog |
Stereo Audio |
1 x mini stereo jack (Black) |
| Power |
1 x DC Jack |
| Switches |
Firmware Upgrade |
1 x Dip Switch |
| LEDs |
Power |
1 (Red) |
| On Line |
1 (Green) |
| Video |
1920 x 1080 |
| Power Consumption |
DC5V, 10W |
| Environment |
Operating Temp. |
0-40C |
| Storage Temp. |
-20-60C |
| Humidity |
2090% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.29 kg |
Dimensions
(L x W x H) |
11.00 x 8.30 x 2.80 cm |
