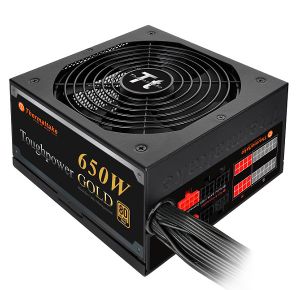

The Thermaltake Toughpower series is a premium 80 PLUS GOLD certified power supply that uses the highest quality components for stable performance, exvellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions. With the 80Plus Gold certification for its high power efficiency, and a single strong 12V rail flexibly routes the maximum available power to your CPU and graphics card, offering maximized power usage and easy setup. Toughpower 650W GOLD (Modular) comes with modular design to reduce cable clutter; and ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate at its peak moment.

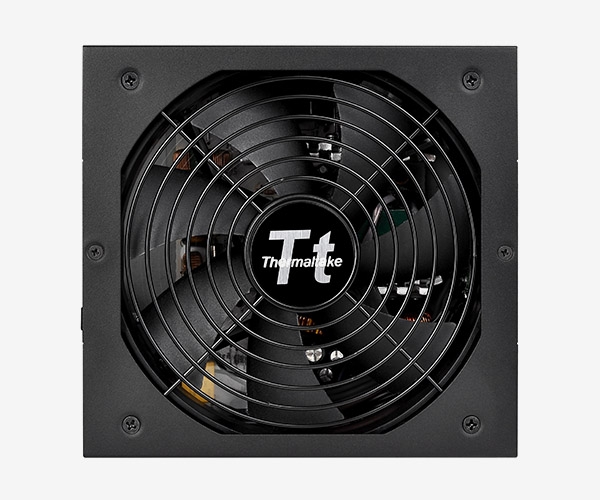

Silent Cooling Minimizes Noise Levels
Ultra-quiet 14cm fan comes with a noise level of around 18dB at typical load to provide silent cooling for your PC.
80 PLUS Gold Certified and Haswell Ready
Deliver up to 87%-92% efficiency under real world load conditions to promise lowest power losses. Besides, Toughpower Grand is already prepared for the new Intel processors Haswell to achieve maximum energy savings.
Flat Modular Cables
All new low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.
High Quality Japanese Capacitor
High quality Japanese capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.
Massive and Dedicated +12V Output
Toughpower series is equipped with a pure and powerful single +12V rail to provide the best compatibility for your PC.
Specifications
| P/N |
TP-650P |
| Model |
PS-TPD-0650MPCGAU-1
|
| Type |
Intel ATX 12V 2.3 & EPS 12V 2.92 |
| Max. Output Capacity |
650W |
| Peak Output Capacity |
780W |
| Color |
Black |
| Dimension (H x W x D) |
86mm x 150mm x 140mm |
| PFC Power Factor Correction |
Active PFC |
| Power Good Signal |
100-500 msec |
| Hold Up Time |
17msec (minimum) @ full load at 115Vac/ 60Hz input |
| Input current |
10A 5A |
| Input Frequency Range |
47 Hz - 63 Hz |
| Input Voltage |
100 Vac- 240 Vac |
| Operating Temperature |
+0 to +40 |
| Operating Humidity |
To 85% relative humidity,non-condensing |
| Storage Temperature |
-40 to +70 |
| Storage Humidity |
To 95% relative humidity, non-condensing |
| Cooling System |
120mm Fan: 2400 R.P.M. 10% |
| Efficiency |
87-92% efficiency @ 20-100% load |
| MTBF |
100,000 hrs minimum |
| Safety Approval |
UL/CUL, CE, FCC, TUV, CB, GOST and BSMI certified |
| PCI-E Connector |
PCI-E 6+2pin X 4 |
