All stock codes associated to this product
AVXAVD3U16001008G2BZ1, AVX-AVD3U16001008G-2BZ1
AVD3U16001008G-2BZ1
16GB (8GB1024Mx 64-Bit x 2 pcs.)DDR3-1600MHz
CL10-240-Pin DIMM Kit
DESCRIPTION

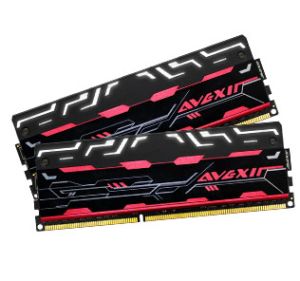

AVEXIR AVD3U16001008G-2BZ1 Blitz Series 16GB Kit (8GB x 2) dual channel 240-pin DDR3 1600MHz 10-10-10-24 DIMM desktop memory module.
The highly anticipated Blitz 1.1 is specifically designed for gamers and overclockers alike for extreme overclocking performance. The concept of Blitz 1.1 not only extends the fantastic LED light hue from the Core series but also with extraordinary design for heat spread.
The aluminium extrusion technique is deployed on every Blitz 1.1 module and together with its uncompromising design style; the Blitz 1.1 is ready for outstanding gaming and overclocking potential. Blitz also employs self-assembled, adjustable heat sink spreaders; gamers can uninstall external heat sink for ultimate performance.
With rich red and black heat sink as base, the AVEXIR logo is carved on the side and covered with alabaster white LED on the top. Its like the sharpest sword waiting and readying to fight for the forces from the dark side. This is aligned with AVEXIRs values, when its ready then we are momentum.
Avexir strictly adheres to quality standards set by JEDEC (the Joint Electron Devices Engineering Council) and ISO9001.
With 100% hand-tested extensively in multiple PC major-brand motherboard environments at its rated speed, Avexir makes sure that both stability and performance of every memory module reach the highest quality criteria.
JEDEC Standard : DDR3-1600K CL11-11-11-28 1.5V
XMP : DDR3-1600 CL10-10-10-24 1.5V
FEATURES
- JEDEC standard 1.5V 0.075VPowerSupply
- VDDQ = 1.5V 0.075V
- 800MHz fCKfor 1600Mb/sec/pin
- 8 independent internal bank
- Programmable CASLatency: 7,8,9,10,11
- Posted CAS
- ProgrammableAdditive Latency: 0, CL - 2, or CL - 1 clock
- Programmable CAS Write Latency(CWL) = 8 (DDR3-1600K)
- 8-bit pre-fetch
- Burst Length: 8 (Interleave)without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly usingA12 or MRS]
- Bi-directional Differential Data Strobe
- Internal(self) calibration : Internal self calibration through ZQ pin (RZQ: 240 ohm 1%)
- On Die Termination using ODT pin
- Average Refresh Period 7.8us at lower than TCASE 85, 3.9us at 85 < TCASE 95
- Asynchronous Reset
- PCB: Height 1.180"(30.00mm), double sided component
Extra Features
- Intel and AMD Chipset motherboards Optimized
- Every Avexir Memory is 100% tested on PC motherboard environment
- Dynamic white LED light
- High conductive light guide bar
- High performance voltage stabilizing generator
- AIST (every single IC examined by AVEXIR IC Sorting Technology)
- Golden Finger Protector
- 8 layers PCB for maximum thermal conduction
- Double Copper PCB to maximized overclocking ability
- Perfectly fit with ASUS ROG motherboard.
SPECIFICATIONS
| CL(IDD) |
10 cycles |
| Row Cycle Time (tRCmin) |
36ns (min.) |
Refresh toActive/Refresh
Command Time (tRFCmin) |
208ns |
| RowActive Time (tRASmin) |
24ns (min.) |
| Power |
1.800 W (operating per module) |
| ULRating |
94 V - 0 |
| Operating Temperature |
0 to 85 |
| Storage Temperature |
-55 to +100 |
