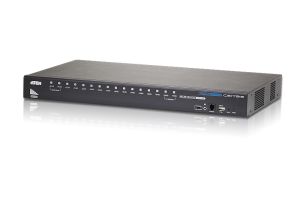

16-Port USB HDMI KVM Switch

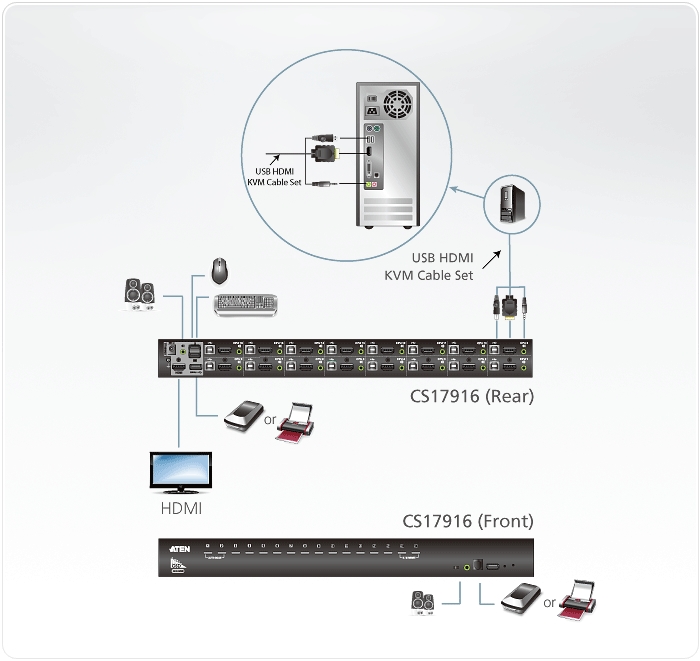

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
The CS17916 can be cascaded up to two levels to control up to 256 computers all from a single console.
In addition the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
Furthermore, the CS17916 comes with ATENs on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/back up the OSD settings and restore them as needed.
The CS17916 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Features
- One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
- HDMI compatible
- Cascadable to two levelscontrol up to 256 computers
- Multi-Display feature stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- 2-port USB 2.0 hub built in
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Independent switching of KVM and USB focus
- OSD Backup/Restore featureenables the administrator to back up the switchs configuration and user profile information
- Firmware upgradable
- Video DynaSync exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Superior video qualitysupports up to 1080p / 1920 x 1200@60Hz
- Supports widescreen resolutions
- Audio enabledfull bass response provides a rich experience for 2.1 channel surround sound systems
- Console audio ports on front panel for easy access
- Auto Scan Mode for monitoring all computers
- HDCP compatible
- Multiplatform supportWindows, Linux, Mac, Sun
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*1.2.
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Multilingual keyboard mapping supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
Note : Enable mouse emulation for independent switching
1. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.
2. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
Specifications
Computer
Connections |
Direct |
16 |
| Max. |
256 (via Cascade) |
| Port Selection |
OSD, Hotkey, Pushbutton |
| Connectors |
Console
Ports |
Keyboard |
1 x USB Type A Female (Black) |
| Video |
1 x HDMI Female |
| Mouse |
1 x USB Type A Female (Black) |
| Speakers |
2 x Mini Stereo Jack Female
(Green; 1 x front panel, 1 x rear panel) |
| KVM Ports |
Keyboard / Mouse |
16 x USB Type B Female (White) |
| Video |
16 x HDMI Female (White) |
| Speakers |
16 x Mini Stereo Jack Female (Green) |
| F/W Upgrade |
1 x RJ11 Female (Black) |
| Power |
1 x DC Jack |
| USB 2.0 Hub |
2 x USB Type A Female (White)
(1 x front panel, 1 x rear panel) |
| Switches |
Port Selection |
16 x Pushbutton |
| Reset |
1 x Semi-recessed Pushbutton |
| F/W Upgrade |
1 x Slide Switch |
| LEDs |
USB Link |
16 (Green) |
| On Line / Selected |
16 (Orange) |
| Power |
1 (Dark Green) |
| Emulation |
Keyboard / Mouse |
USB |
| Video |
up to 1080p / 1920 x 1200@60Hz |
| Scan Interval |
1255 Seconds (Default: 5 secs) |
| Power Consumption |
DC 5.0V; 12.2W |
| Environment |
Operating Temp. |
050C
|
| Storage Temp. |
-2060C |
| Humidity |
080% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
3.86 kg |
Dimensions
( L x W x H ) |
43.72 x 25.66 x 4.40 cm |
