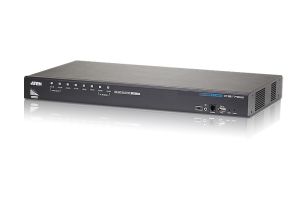

Aten CS1798 8-Port USB HDMI/Audio KVM Switch
The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that
consolidates access and control of up to 8 HDMI computers from a single USB
keyboard, USB mouse, and monitor console.
The CS1798 can be cascaded up to three levels to control up to 512 computers
all from a single console.
In addition the CS1798 features multi-display functionality, which enables
the use of standard USB cables to stack up to eight switches in a multi-display
installation where each computer is fitted with multiple video cards. It allows
you to contrast, analyse and monitor video output in convenient ways,
substantially simplifying the working environment.
Furthermore, the CS1798 comes with ATENs on-screen display (OSD) function,
which can access any computer connected to the installation, it also offers OSD
confi guration backup/restore to save/back up the OSD settings and restore them
as needed.
The CS1798 provides multimedia keyboard support and is audio enabled. You can
listen to the audio output of each computer on two sets of speakers (on a one
at- a-time basis).
Features
- One USB console controls up to eight HDMI interface computers and two
additional USB 2.0 devices
- HDMI compatible
- Cascadable to three levels–control up to 512 computers*1
- Multi-Display feature stack up to eight CS1798 units and display video
from up to eight monitors(dual display/triple display/quad
display/multi-display)
- 2-port USB 2.0 hub built in
- Computer selection via front panel pushbuttons, hotkeys, and multilingual
on-screen display (OSD)
- Independent switching of KVM and USB focus
- OSD Backup/Restore feature–enables the administrator to back up the
switch's configuration and user profile information
- Firmware upgradable
- Video DynaSync – exclusive ATEN technology eliminates boot-up display
problems and optimizes resolution when switching between ports
- Superior video quality–supports up to 1080p / 1920 x 1200@60Hz
- Supports widescreen resolutions
- Audio enabled–full bass response provides a rich experience for 2.1
channel surround sound systems
- Console audio ports on front panel for easy access
- Auto Scan Mode for monitoring all computers
- HDCP compatible
- Multiplatform support–Windows, Linux, Mac, Sun
- Console mouse port emulation/bypass feature supports most mouse drivers
and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*2.3.
- Multilingual OSD supports English, German, Japanese, Traditional Chinese,
Simplified Chinese, Spanish, Russian, and French
- Multilingual keyboard mapping – supports English (US), English (UK),
German (GER.), German (SWISS), French, Hungarian, Italian, Japanese,
- Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified
Chinese
- Supports hot-plugging
Note : Enable mouse emulation for independent switching
1. CS1798 cascade to CS1798 only.
2.
For PC compatible computers. Mac and Sun computers must be compatible with USB
connections.
3.
PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only
with their own computers.

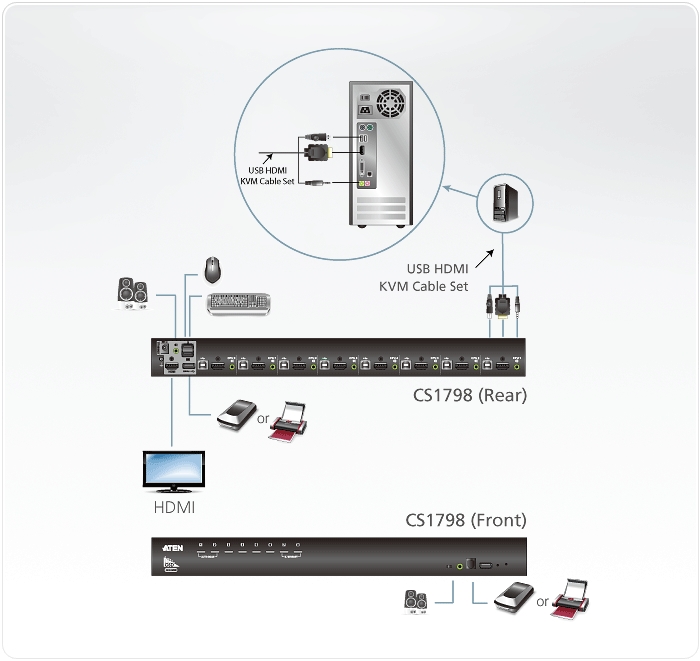

Diagram
Specifications
|
Computer Connections |
|
|
Direct |
8 |
|
Maximum |
512 (via Cascade) |
|
Port Selection |
OSD, Hotkey, Pushbutton |
|
Connectors |
|
|
Console Ports |
1 x HDMI Female |
|
|
2 x USB Type A Female |
|
|
2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear
panel) |
|
KVM Ports |
8 x HDMI Female |
|
|
8 x USB Type B Female |
|
|
8 x 3.5mm Audio Jack Female (Green) |
|
Firmware Upgrade |
1 x RJ11 Female (Black) |
|
Power |
1 x DC Jack |
|
USB Hub |
2 x USB Type A Female (1 x front panel, 1 x rear
panel) |
|
Switches |
|
|
Port Selection |
8 x Pushbutton |
|
Reset |
1 x Semi-recessed Pushbutton |
|
Firmware Upgrade |
1 x Slide Switch |
|
LEDs |
|
|
USB Link |
8 (Green) |
|
Power |
1 (Dark Green) |
|
On Line /Selected |
8 (Orange) |
|
Emulation |
|
|
Keyboard / Mouse |
USB |
|
Video |
1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz |
|
Scan Interval |
1 – 255 seconds (default: 5 secs.) |
|
Power Consumption |
DC5V:8.56W:66BTU |
|
Environmental |
|
|
Operating Temperature |
0 – 50°C |
|
Storage Temperature |
-20 – 60°C |
|
Humidity |
0 – 80% RH, Non-condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
3.49 kg ( 7.69 lb ) |
|
Dimensions (L x W x H) |
43.24 x 25.72 x 4.40 cm |
|
|
(17.02 x 10.13 x 1.73 in.) |
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
|
Package Contents |
1x 8-Port USB HDMI KVM Switch with Rack Mounting
Kit |
|
|
2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft) |
|
|
1x Firmware Upgrade Cable |
|
|
1x Power Adapter |
|
|
1x Foot Pad Set (4 pcs) |
|
|
1x User
Instructions |
