VC010
Overview
VGA EDID Emulator
The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a VGA source device to efficiently optimize video resolution.
The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
- Superior video qualityHDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizardallows a user an easy way to manage EDID settings
- EDID mode selectionDefault, Learning , Programming
- Automatically manages EDID communication between connected devices
- Signaling rates up to 2.25 Gbits in support of 1080p display
- LED indication of video source devices
- Supports wide screen
- Supports hot-plugging
- Non-Powered
- If the video source is not receiving enough power an external power cord should be connected.

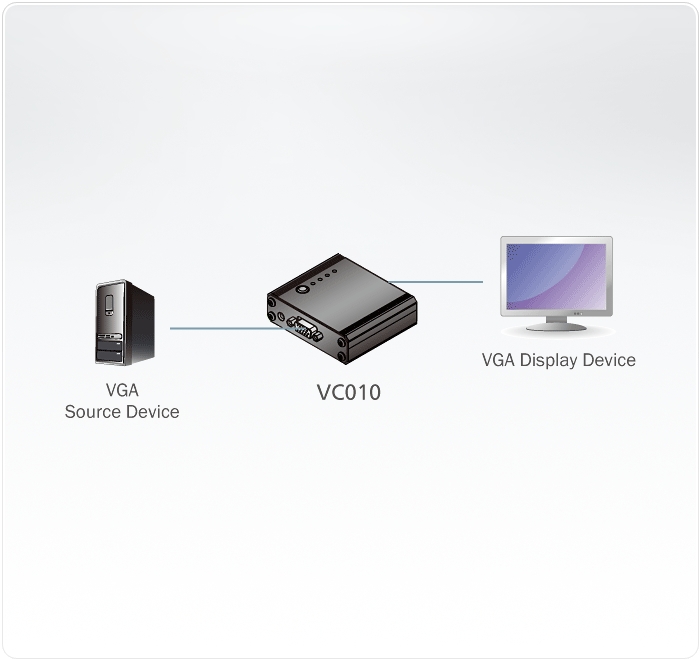

Diagram
Specifications
| Connectors |
Video In |
1 x HDB-15 Female (Blue) |
| Video Out |
1 x HDB-15 Female (Blue) |
| RS-232 Port |
1 x mini jack (Black) |
| Power |
1 x DC Jack |
| Switches |
Learn/Select |
1 x Pushbutton |
| LEDs |
EDID Set |
4 (Green) |
| Video |
1920 x 1200; 1080p |
| Power Consumption |
DC5V, 0.15W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
080% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.15 kg |
Dimensions
(L x W x H) |
7.90 x 7.76 x 2.45 cm |
