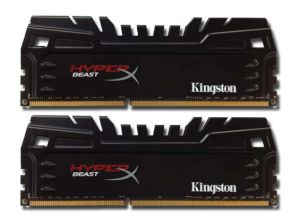

HX324C11T3K2/8
8GB (4GB 512M x 64-Bit x 2 pcs.)
DDR3-2400 CL11 240-Pin DIMM Kit
DESCRIPTION
HyperX HX324C11T3K2/8 is a kit of two 512M x 64-bit (4GB) DDR3-2400 CL11 SDRAM (Synchronous DRAM), 1Rx8 memory modules, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel® XMP (Extreme Memory Profiles). Total kit capacity is 8GB. Each module kit has been tested to run at DDR3-2400 at a low latency timing of 11-13-14 at 1.65V. The SPDs are programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
XMP TIMING PARAMETERS
JEDEC: DDR3-1600 CL11-11-11 @1.5V
XMP Profile #1: DDR3-2400 CL11-13-14 @1.65V
XMP Profile #2: DDR3-2133 CL11-13-13 @1.6V
FEATURES
- JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply
- VDDQ = 1.5V (1.425V ~ 1.575V)
- 800MHz fCK for 1600Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 11, 10, 9, 8, 7, 6
- Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
- On Die Termination using ODT pin
- Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE< 95°C
- Asynchronous Reset
- Height 1.827” (46.41mm) w/ heatsink, single sided component
Specifications
- CL(IDD): 11 cycles
- Row Cycle Time (tRCmin): 48.125ns (min)
- Refresh to Active/Refresh Command time (tRFCmin): 260ns (min.)
- Row Active Time (tRASmin): 35ns (min.)
- Maximum Operating Power: TBD W* (Per Module)
- UL Rating: 94V - 0
- Operating Temperature: 0 Degree C To 85 Degree C
- Storage Temperature: -55 Degree C to +100 Degree C
