Our Price:
$9,631.55
RRP:
$12,200.00
You Save:
$2,568.45
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
389657
(?) Brand:
Manuf No:
SRT6KRMXLI
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
SRT6KRMXLI, 2690206, 731304308515

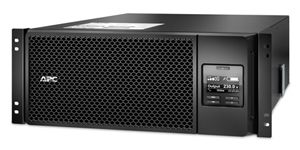

APC Smart-UPS SRT 6000VA RM 230V


Part Number: SRT6KRMXLI

Product Overview

SRT6KRMXLI Features

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPS On-Line Features & Benefits

Availability
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
Network manageable
Provides remote power management of the UPS over the network.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
Adaptability
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Protection
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Cold-start capable
Provides temporary battery power when the utility power is out.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Specifications


Output

Output Power Capacity
6000Watts /6000 VA
Max Configurable Power
6000Watts /6000 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave
Output Connections
(1) Hard Wire 3-wire (H N + G)
(6) IEC 320 C13 IEC 320 C13
(4) IEC 320 C19 IEC 320 C19
(2) IEC Jumpers
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
230V
Input Frequency
45 - 65 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275V
Other Input Voltages
220, 240

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
1.50hour(s)
Replacement Battery
APCRBC140, SRT10KXLT, SRT10KXLT-IEC, SRT10KRMXLT, SRT10KRMXLT-IEC, SRT5KXLT, SRT5KXLT-IEC, SRT5KRMXLW-HW, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT6KXLT, SRT6KXLT-IEC, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KXLT, SRT8KXLT-IEC, SRT8KRMXLT, SRT8KRMXLT-IEC
RBC Quantity
1
Extended Run Options
APC Smart-UPS SRT 6000VA RM 230V
Runtime Graph
Curve Part Number(s)
A SRT6KRMXLI
B SRT6KRMXLI
+ (1)SRT192RMBP
C SRT6KRMXLI
+ (2)SRT192RMBP
D SRT6KRMXLI
+ (3)SRT192RMBP
E SRT6KRMXLI
+ (4)SRT192RMBP
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
View Enlarged Graph
View Runtime Chart


Energy Use/Efficiency

Load Efficiency
25% 92.7%
50% 94.4%
75% 94.6%
100% 94.4%
Hover over the line on the graph above to view the efficiency at any desired load
Curve fit of data measured in accordance with the ENERGY STAR Program Requirements Product Specification for Uninterruptible Power Supplies (UPSs) - Eligibility Criteria Version 1.0. All measurements taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF = 1.0) output.
View Enlarged Graph


Communications & Management

Interface Port(s)
Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Available SmartSlot Interface Quantity
1
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
480Joules

Physical

Maximum Height
174.00mm
Maximum Width
432.00mm
Maximum Depth
719.00mm
Rack Height
4U
Net Weight
60.00KG
Shipping Weight
67.00KG
Shipping Height
370.00mm
Shipping Width
610.00mm
Shipping Depth
960.00mm
Color
Black
Units per Pallet
6.00

Environmental

Operating Environment
0 - 40C
Operating Relative Humidity
0 - 95% no%
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45C
Storage Relative Humidity
0 - 95% no%
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
55.00dBA
Online Thermal Dissipation
1300.00BTU/hr
Protection Class
IP 20

Conformance

Regulatory Approvals
CE, CE Mark
Standard Warranty
3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers (APC) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
