AeroCool 600W VX-600 Power Supply - ATX 12V v2.3, 120mm Fan, High-End SECC with Black Powdercoated Case, Supports C6/C7 Power Saving Mode On Intel Haswell CPU
  • 4x SATA, 2x PCI-E 6+2-Pin

IMG 1 of 1
No Longer Available
Part Number:
390726
(?) Brand:
AeroCool Web Site
Manuf No:
VX-600(230V)
VX600(230V)
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VX600(230V), VX-600(230V)

Information

Features

1.  The most valuable power supply for entry-level system builder.
2.  Compatible with ATX 12V 2.3.

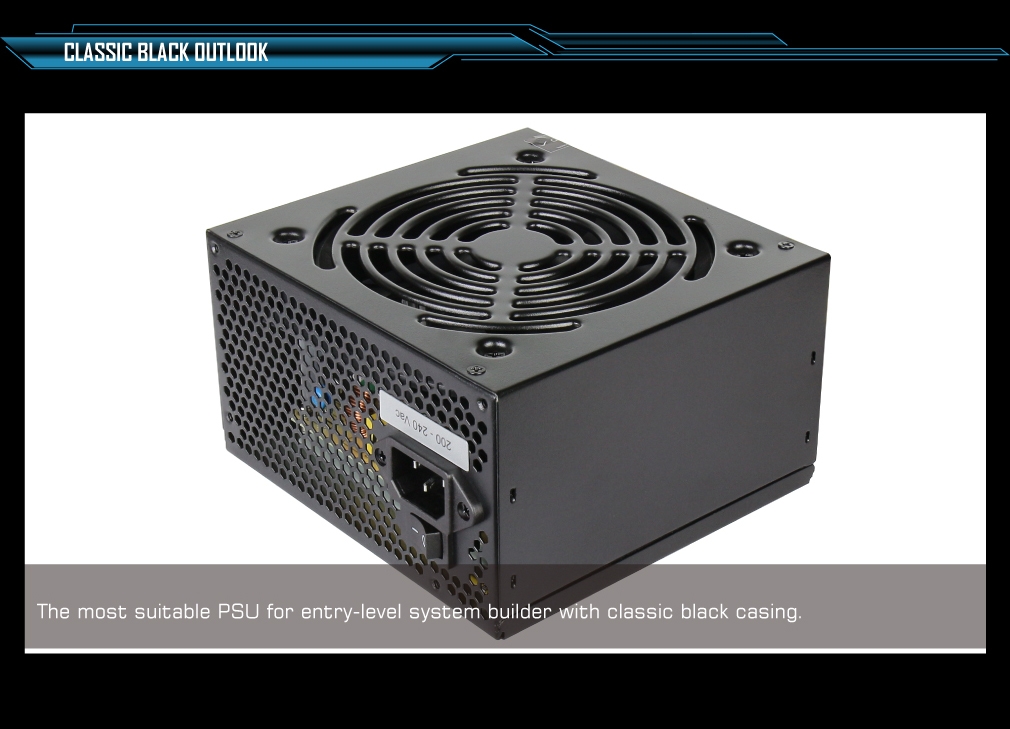

3.  High-end SECC with black coating casing.

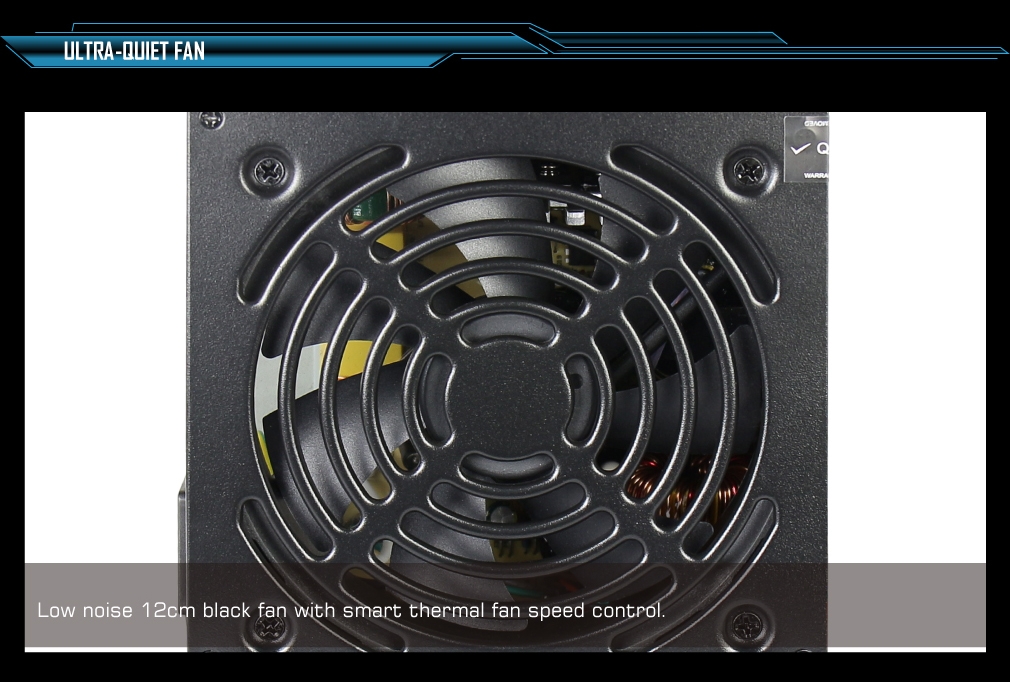

4.  Silence 12cm fan with smart fan speed control.
5.  Support C6/C7 power saving mode on Intel Haswell CPU.
6.  Powerful single +12V rails offer the most compatible DC output to support high-end graphic card and CPU.
7.  Long cable length at least 450mm supports high-end case with "Bottom" PSU position.
8.  OPP/OVP/UVP/SCP electrical protection included.


Technical Spec

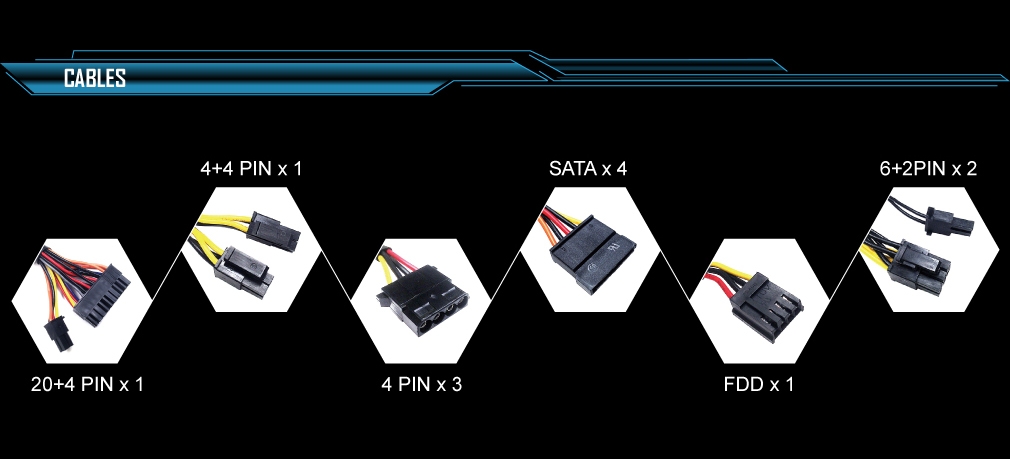

Cables:

  • 1 x 20 + 4 PIN
  • 1 x 4 + 4 PIN
  • 3 x 4 PIN
  • 4 xSATA
  • 1 xFDD
  • 2 x 6 + 2 PIN

Power Specifications:

  • AC Input:230VAC6A47-63Hz
  • DC Output:Max Current/Wattage
  • +3.3V:20A/120W
  • +5V:17A/120W
  • +12V:46A/552W
  • -12V:0.3A/3.6W
  • +5Vsb:2.5A/12.5W
  • Total Combined Wattage:600W

Environmental Requirements:

  • Operating / Storage Temperature Range:
  • Operating ambient:0Cmin ~ +40Cmax
  • Non operating ambient:-20C~ +60C
  • Humidity (non condensing):
  • Operating ambient:10% ~ 90% relative humidity
  • Non operating ambient:5% ~ 95% relative humidity

Altitude:

  • Operating ambient:0 to 10,000 ft
  • Non operating ambient:0 to 50,000 ft

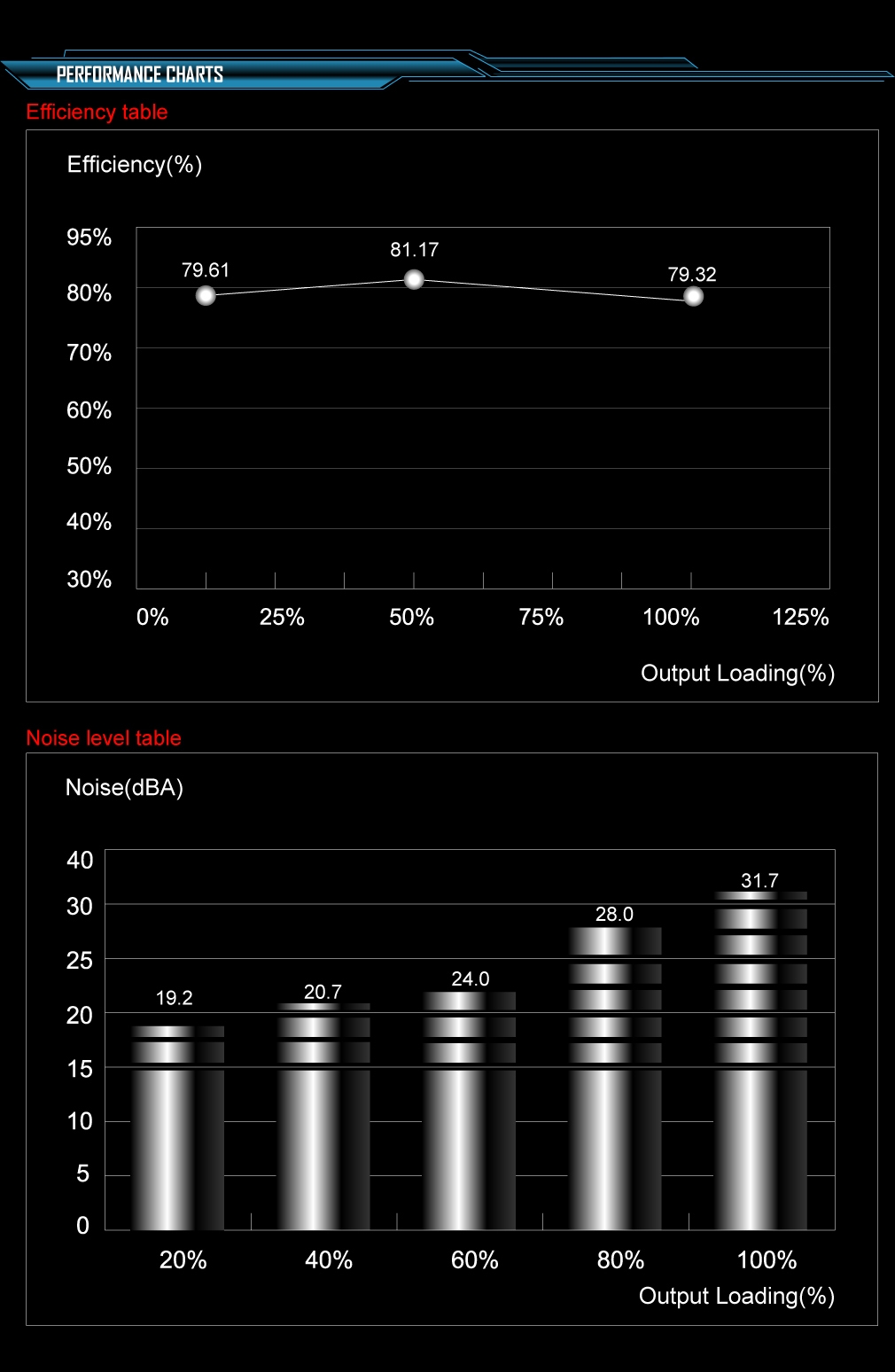

Noise Level Output:Loading(%) / Noise (dBA)

  • 20%/19.2dBA
  • 40% / 20.7dBA
  • 60% / 24.0dBA
  • 80% / 28.0dBA
  • 100% / 31.7dBA

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (AeroCool) web site.
