All stock codes associated to this product
AF651A, 2903807, 888182748923

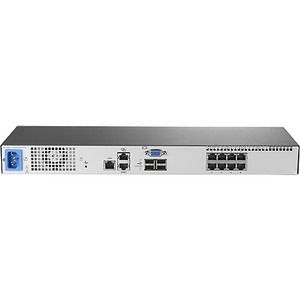

Looking for a simple and intuitive solution that allows you to access and manage servers in your data center? HP KVM Analog Console Switches allow you to view and manage up to 256 rackmount servers in your data center through a single user interface. HP KVM Analog Console Switches utilize a local On-Screen Display (OSD) interface, accessed through a rack console such as the HP LCD8500, that provides intuitive menus for accessing each attached server or serial managed device. HP G3 KVM Analog Console Switches support an optional USB Remote Access Key that allow you to upgrade to KVM-over-IP functionality, providing remote access and management via the On-Board Web Interface (OBWI). HP KVM Analog Console Switches are available in 4, 8 and 16-Port models. Standard rack mounting of the KVM Console Switch will share 1U (1.75-inch) of front panel rack space with the rack console. However, each model can also be mounted in a "zero U" profile by mounting in the side rails of the rack.
View and Manage up to 256 Servers through a Single User Interface.
HP KVM Analog Console Switches utilize a local On-Screen Display (OSD) that provides access to system-related information such as selected server name, status, power-up test data and configuration menus. G3 models support an optional USB Remote Access Key that allow you to upgrade to KVM-over-IP functionality, providing remote access and management via the On-Board Web Interface (OBWI). Includes Programmable Scanning, a utility that allow you to evaluate system performance by sequentially scanning any or all servers managed through the console switch. Features support for HP Location Discovery Services (LDS) and Power Discovery Services (PDS) support when connected to an HP Intelligent Power Distribution Unit (iPDU) and the HP LCD8500 1U Rackmount Console Kit (HP Location Discovery Services LCD8500 Kit required). For protection against unauthorized users, HP KVM Analog Console Switches provide a password option for security purposes.
4-Port, 8-Port and 16-Port Models with Multiple Installation and Server Connection Options.
HP KVM Analog Console Switches include mounting hardware that support “Zero U” installations on both the side and rear of standard IT racks, saving valuable space within your racks. Supports a variety of server connections with interface adapters for PS/2, USB, and VT 100 (serial console support), as well as HP BladeSystems support via the front diagnostics connector.
Specifications
| Copyright notice |
Copyright 2015 Hewlett-Packard Development Company, L.P. |
| Product dimensions (W x D x H) |
17 x 6.5 x 1.72 in |
| Warranty standard statement |
3 year warranty |
| Weight ( Imperial ) |
4.6 lb |
| Weight ( Metric ) |
2.04 kg |
|
