HX321C11SR/8
HX321C11SR/8
8GB (8GB 1G x 64-Bit)
DDR3-2133 CL11 240-Pin DIMM
DESCRIPTION

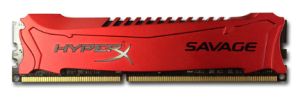

HyperX HX321C11SR/8 is a 1G x 64-bit (8GB) DDR3-2133CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module supports Intel® XMP (Extreme Memory Profiles). Each module has been tested to run at DDR3-2133
at a low latency timing of 11-12-12 at 1.6V. The SPDs are programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
XMP TIMING PARAMETERS
JEDEC: DDR3-1600 CL11-11-11 @1.5V
XMP Profile #1: DDR3-2133 CL11-12-12 @1.6V
XMP Profile #2: DDR3-1600 CL9-9-9 @1.5V
FEATURES
JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply
VDDQ = 1.5V (1.425V ~ 1.575V)
800MHz fCK for 1600Mb/sec/pin
8 independent internal banks
Programmable CAS latency: 11, 10, 9, 8, 7, 6
Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
8-bit pre-fetch
Burst Length: 8 (interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS)
Bi-directional Differential Data Strobe
Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm 1%)
On Die Termination using ODT pin
Average Refresh Period 7.8us at lower than TCASE 85C,3.9us at 85C < TCASE < 95C
Asynchronous Reset
PCB: Height 1.180 (30.00mm), double sided component
Specifications
CL(IDD): 11 cycles
Row Cycle Time (tRCmin): 48.125ns(min.)
Refresh to Active/Refresh: Command Time (tRFCmin): 260ns(min.)
Row Active Time (tRASmin): 35ns(min.)
Maximum Operating Power: TBD W*
UL Rating: 94 V - 0
Operating Temperature: 0oC to +85oC
Storage Temperature: -55oC to +100oC
