HOME / Back -> Power Protection/UPS -> Batteries -> EATON

EATON 9E20KIXL 9E 6KVA Extended Battery Module 180VDC

IMG 1 of 1
Our Price:
$8,471.95
RRP:
$11,315.70
You Save:
$2,843.75
or quickly purchase this product
Backorder
Part Number:
396745
(?) Brand:
EATON Web Site
Manuf No:
9E20KIXL
Shipping Weight:
47.8 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
9E20KIXL, 2741769
9E20KiXL

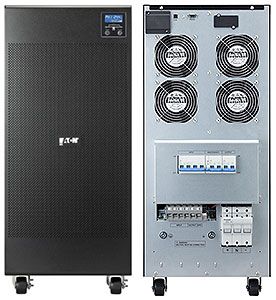

Eaton 9E 20kVA 1:1 and 3:1 with supercharger

Specifications

General

Topology Online double conversion
Configuration Tower
Part Number 9E20KiXL
Rating (VA/Watts) 20000/16000
Dimensions (H x W x D, mm) 815.5 x 350 x 706
Weight (kg) 47.8
Warranty 1 year

Electrical Input
Connection
Hardwired - see manual for terminal block layout
Hardwired - example layout only
Input Voltage Range 176-276V without derating (up to 110-276V with derating)
Nominal Voltage 220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 45-66 Hz
Short Circuit Current 273 A

Electrical Output
Voltages 220V/230V/240V 2 %
Voltage THD <3%
Outlets
Hardwired - see manual for terminal block layout
Hardwired - example layout only
Overload Capacity 105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms
Efficiency (Normal Mode) Up to 93% in Online mode, 97% in ECO mode
Output Frequency 50/60 Hz autoselect, frequency converter as standard

Communications
Communication Ports 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communications Slot 1 slot for Network-MS, ModBus-MS or Relay-MS cards
Power Management Software Intelligent Power Software

Environmental & Standards
Audible Noise <55dB
Operating Temperature 0 to 40C
Safety markings IEC/EN 62040-1
EMC Markings IEC/EN 62040 -2
Approvals CE, CB report (TUV)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (EATON) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
