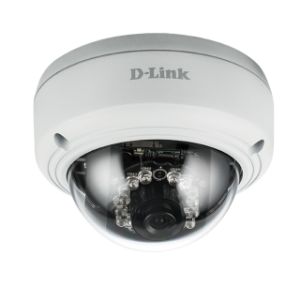

D-Link DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera - 1/3 Megapixel Progessive CMOS Sensor, 10x Digital Zoom, IP-66 Compliant Weatherproof Housing, IK10 Vandal-Proof Housing - White

IMG 1 of 1
No Longer Available
Part Number:
398943
(?) Brand:
D-Link Web Site
Manuf No:
DCS-4602EV
DCS4602EV
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DCS-4602EV, DCS4602EV, 16DCS4602EV, 790069415326, 790069417603

Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera


DCS-4602EV

Overview

High-Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-4602EV provides realtimevideo compression using the H.264 and MJPEG codecs, and supports three separateprofiles for simultaneous video streaming and recording. This versatility enables a wide varietyof security applications, such as monitoring public areas to detect incidents and to coordinateresponses, enforcing access control to restricted areas, deterring criminal activity, or monitoringinventory.

Continuous Monitoring

The DCS-4602EVs WDR image enhancement gives you improved image quality inenvironments with uneven or difficult lighting, so you can identify subjects that are backlit or inbrightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to useall available light. The DCS-4602EV also has built-in IR LED illuminators with a 20 meter range,allowing the camera to keep watch even in complete darkness. These features work together togive you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Robust Management Software

The DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Cameraincludes D-ViewCam, a complete surveillance software package that enablesyou to view, manage, and record from up to 32 cameras on a single computerin a central location. Recordings and e-mail alerts can be triggered throughmotion detection or events triggered by digital input devices, keepingadministrators informed of any unusual activity.

Flexible Connectivity

The DCS-4602EV has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a singlecable, reducing the need to drill holes or lay additional cabling.

Features

Dimensions

110.9 mm x 45 mm x 78.7 mm

SD Card Slot

NA

PTZ Functionality

NA

Video Resolution

4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640x480, 480 x 352, 320 x 240 up to 30 fps

Max. Resolution

16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360, 480x272, 320 x 176 up to 30 fps

Image sensor

1/3 1.3 megapixel progressive CMOS sensor

Ethernet Port Interface

10/100

Wireless

NA

Day & Night- ICR

Yes

Day & Night- IR LED

Yes

Angle of View

(H) 96 (V) 54 (D) 108

Digital Zoom

10x

Built-in Microphone

NA

Max. Power Consumption

5.5 watts 5% (PoE)

Operating Temperature

-30 to 50 C (-22 to 124 F)

ONVIF Compliant

Yes

Outdoor Usage (IP65,IP66)

Yes

mydlink enabled(Cloud)

NA

Specifications

Camera Hardware Profile

1/3 Megapixel progressive CMOS sensor

20 meter IR illumination distance

Minimum illumination:

1.0 lux / F2.0 (color)

0.5 lux /F2.0 (B/W)

0 lux / F2.0 (IR-LED on)

Built-in Infrared-Cut Removable (ICR) Filter module

10x digital zoom

Minimum object distance 0.2M

Focal length: 2.8 mm

Aperture: F2.0

Angle of view:
(H) 96
(V) 54
(D) 108

Adjustment angle (non-motorized):

Vertical: 60

Horizontal: 350

Camera Housing
IP-66 compliant weatherproof housing IK10 vandal-proof housing

Image Features
Configurable image size, quality, frame rate, and bit rate

Time stamp and text overlays

Configurable motion detection windows

Configurable privacy mask zones

Configurable shutter speed, brightness, saturation, contrast, sharpness, WDR, and 3D filter.

Video Compression
Simultaneous H.264/MJPEG format compression

H.264/MJPEG multicast streaming

JPEG for still images

Video Resolution
16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps

4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps

External Device Interfaces
10/100 BASE-TX Fast Ethernet port Supports 802.3af PoE Class 2

Network Protocols
IPv6 IPv4 ARP TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client HTTP/HTTPS Samba client PPPoE UPnP port forwarding RTP/RTSP/RTCP IP filtering Multicast CoS QoS/DSCP SNMP ONVIF compliant

Security
Administrator and user group protection Password authentication HTTP and RTSP authentication

System Requirements for Web Interface Browser: Internet Explorer, Firefox, Safari

Event Management
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup

Remote Management
Take snapshots/video clips and save to local hard drive
Configuration interface accessible via web browser

D-ViewCam System Requirements
Operating System: Microsoft Windows 8/7/Vista

Web Browser: Internet Explorer 7 or higher

Protocol: Standard TCP/IP

D-ViewCam Software Functions
Remote management/control of up to 32 cameras
Supports all management functions provided in web interface

Viewing of up to 32 cameras on one screen
Scheduled motion triggered, or manual recording options

Weight 525 g 5%

Power Input: 100 to 240 V AC, 50/60 Hz Output: 12 V DC 1.5 A

Power Consumption 5.5 watts 5% (PoE)

Temperature
Operating: -30 to 50 C (-22 to 124 F) Storage: -20 to 70 C (-4 to 158 F)

Humidity
Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing

Certifications
CE CE LVD FCC C-Tick
