All stock codes associated to this product
DVIS04, 9350784007971

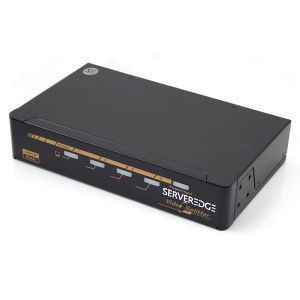

Serveredge 4 Port DVI Video Splitter
Product Description
The Serveredge 4 Port DVI Video Splitter is an easy andaffordable solution for duplicating one video input into multipleDVI outputs.
Product Specification
Number of Video Outputs : 4
Video Resolution (max.) / Signal Type : Full HD 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)
LED Indicators Power active Video OK : Dual color x 1
LED Indicators Video outputs : 4
Rack Mountable (optional) : Yes
Cable Length (max.) : 10M (depends on cable quality)
Connectors Input : DVI Female x 1
Connectors Output : DVI Female x 4
Enclosure : Metal
Power Consumption (Max.) : 4.0W, 4.1W
Operating Voltage : DC 9~12V
Dimensions H X W x D (mm) : 44 x 220 x 135
Package Includes
(1) DVI Video Splitter
(1) Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter)
(1) User's Manual
(1) Foot Pad Set
Product Feature
Easy and affordable way to duplicate one video input to multiple DVI outputs
Automatic power-save when signal input is lost
Cascaded operation for increased signal outputs
Crisp clear video images
Support EDID, HDCP, and is Blu-ray ready for high definition display
Support DVI / HDMI display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), Full HD 1080p (1920 x 1080)
Support audio function for HDMI / Audio over DVI source devices
Rack mountable ( compatible for 4-Port only )
LED indicators for signal activity monitoring
Accurate and reliable reproduction of digital video signals without attenuation and distortion
Installs in seconds
