| Model |

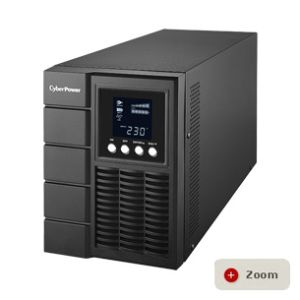

OLS1500E |
| Capacity(VA/W) |
1500VA / 1350W |
| Typology |
Online (Double Conversion) |
| Energy-Saving Technology |
Yes, ECO Mode Efficiency > 95% |
| Input |
| Voltage Range |
120~139Vac for 0~25% Load
140~159Vac for 0~50% Load
160~179Vac for 0~75% Load
180~280Vac for 0~100% Load
|
| Input Type |
IEC C14 |
| Frequency Range |
40~70Hz |
| Output |
| UPS Outlets (Numbers) |
(4) IEC C13 |
| On Battery Output Voltage |
Pure Sine Wave at 208, 220, 230, 240 Vac (Configurable) |
| On Battery Output Voltage Distortion
(@Nominal Battery Voltage) |
?3%(Linear Load), ?5%(Non-Linear Load) |
| On Battery Output Frequency |
50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5% |
| Transfer Time (Typical) |
0ms |
| Overload Protection |
AC Mode: Warning only @ 110%>Load>105%,
Transfer to bypass after 60sec @ 120%>Load>110%,
Transfer to bypass immediately@ Load>120%
Battery Mode: Warning only @ 110%>Load>105%,
Shutdown after 10sec @ 120%>Load>110%,
Shutdown immediately @ Load>120%
Bypass Mode: Warning only @ 130%>Load>105%,
Shutdown immediately @ Load>130% |
| Surge Protection and Filtering |
| Surge Protection |
Yes |
| DSL/Phone/Fax/Modem protection |
RJ11/RJ45(One In/One Out) |
| Short Circuit Protection |
UPS Output Cut off Immediately or Circuit Breaker Protection |
| Physical |
| Dimensions(H x W x D)(mm) |
225 x 151 x 394 |
| Weight(kg) |
15.3 |
| Battery |
| Sealed Maintenance Free Lead Acid Battery |
(3) 12V / 9AH |
| Configurable External Battery Pack (Max.) |
3 |
| Typical Recharge Time |
5 |
| Runtimes |
| Half load-Full load (mins) |
14/5 |
| Status Indication |
| Indicators |
Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode,C/F Mode, Fault, Replace Battery |
| Audible Alarms |
Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Communication |
| Power Management Software |
PowerPanel® Business Edition |
| Management |
| Self-Test |
Yes |
| Auto-Charge/Auto-Restart |
Yes |
| Auto-Overload Recovery |
Yes |
| Cold Start(DC Start) |
Yes |
| Connectivity Ports |
(1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO |
| SNMP/HTTP Capable |
Optional |
