All stock codes associated to this product
HDEXR100HDBT, HD-EXR-100-HDBT, 9352399003027

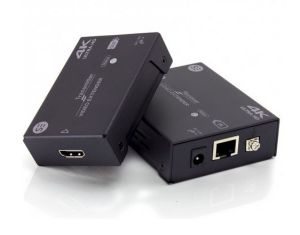

4K2K HDMI HDBaseT Extender Kit Over Single Cat5e/CAT6 with 3D - Upto 100 meters
The Serveredge 3D HDMI HDBaseT Extender transmits full uncompressed 3D HD video and audio over CAT5e / 6 cable of up to 100/70 meters.
PART NUMBER: HD-EX-100-HDBT
Product Description
The Serveredge HD-EXR-100-HDBT is a 4K2K HDMI over HDBaseT extender kit (Tx/Rx) for HDMI transmission up to 100 meters (UHD resolution up to 70m) over a single CAT5e/CAT6/CAT6A cable with Bi-directional IR control capability. The kit is HDCP compliant and supports HDMI up to 10.2Gps, including support for 1080p 60, Deep Colour, HD-3D, 4Kx2K video, HD Audio Formats and Audio Return Channel. It only needs power supply at either Transmitter or Receiver end.
It’s an advanced and inexpensive all-in-one connectivity solution to minimise-cost with use of only a single CAT cable betweenTransmitter and Receiver. its perfect for applications like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.
PRODUCT FEATURE
4K/UHD capability
Supports Ultra High Definition
sources and displays. Future proofs AV systems in preparation for
technology improvements, 4K/UHD streaming services and playback devices
HDCP Compliant
Adheres to latest specification for High-bandwidth Content Protection. Allows protected content stream to pass between devices
Only Single Power Supply Required
Only requires single power supply at either transmitter or receiver end. Saves time and integration costs
Extended distance HDMI extension
Transmits HDMI signals up to 70m @ 1080P over CAT5e/6/6A or 4K/UHD up to 35m. Uses easy-to-integrate category cable for low-cost, reliable system installation
PRODUCT SPECIFICATION
| |
Transmitter Unit
HD-EXL-100-HDBT
|
Receiver Unit
HD-EXR-100-HDBT
|
| Input ? Output |
HDMI x 1 ? RJ-45 x 1 |
RJ-45 x 1 ? HDMI x 1 |
| LED (Link / Video status) |
Dual Colour x 1 |
Dual Colour x 1 |
| Video Resolution (max)* |
UHD (3840 x 2160) |
| Extension Distance* |
Full HD 1920 x 1080 @ 100M
UHD 3840 x 2160 @ 70M |
| Power Supply |
DC 12V
(Single power supply at either one end of
two units (Tx & Rx)) |
| Enclosure |
Metal |
| Weight |
120 |
195 |
| H x W x D (mm) |
22 x 52 x 80 |
25 x 67 x 80 |
PACKAGING INCLUDES
| HDMI Extender Transmitter Unit |
1 |
| HDMI Extender Receiver Unit |
1 |
| Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) |
1 Set/Pc |
| Grounding Wire |
2 |
| User's Manual |
1 |
| Foot Pad Set |
2 |
