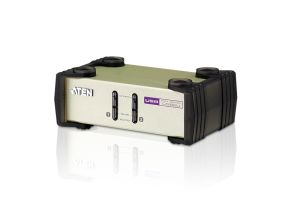

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows
users to access two computers from a single KVM console (PS/2 or USB
keyboard and mouse, and VGA monitor). In addition, CS82U comes with
ATEN's new Video DynaSyncâ„¢ technology, which eliminates boot-up display
problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.
Features
One PS/2-USB VGA console controls two VGA interface computers.
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Computer selection via front panel pushbuttons, hotkeys, and mouse
Multiplatform support - Windows, Linux, Mac, and Sun
Superior video quality - 2048 x 1536; DDC2B
Video DynaSyncâ„¢ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping - supports English, Japanese, and French keyboards
Gaming keyboard support
Auto Scan Mode for monitoring all computers
Firmware upgradable
Non-powered
1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, USB Mouse |
| Connectors |
| Console Ports | 2 x USB Type A Female (Black)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue) |
| KVM Ports | 4 x SPHD-18 Female (Yellow) |
| Power | 1 x DC Jack |
| Switches |
| Selected | 4 x Pushbutton |
| LEDs |
| Online | 4 (Orange) |
| Selected | 4 (Green) |
| Emulation |
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536 @ 60 Hz; DDC2B |
| Scan Interval | 3, 5, 10, 20 secs. (5 secs. default) |
| Power Consumption | DC 5V, 1.2W |
| Environmental |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties |
| Housing | Metal |
| Weight | 0.77 kg |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm |
