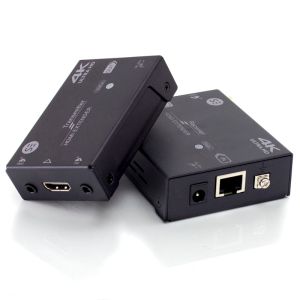

Serveredge HDBaseT 4K2K HDMI Extender Kit (Tx/Rx) with Bi-directional IR - 70m

The Serveredge HD-EXR-70-HDBT is a 4K2K HDMI over HDBaseT extender kit (Tx/Rx) for HDMI transmission up to 70 meters (UHD resolution up to 35m) over a single CAT5e/CAT6/CAT6A cable with Bi-directional IR control capability. The kit is HDCP compliant and supports HDMI up to 10.2Gps, including support for 1080p 60, Deep Colour, HD-3D, 4Kx2K video, HD Audio Formats and Audio Return Channel. It only needs power supply at either Transmitter or Receiver end.

It's an advanced and inexpensive all-in-one connectivity solution to minimise-cost with use of only a single CAT cable between Transmitter and Receiver. its perfect for applications like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.



PRODUCT SPECIFICATION

HD-EXR-70-HDBT

Transmitter Unit

Receiver Unit

Input -> Output

HDMI x 1 ? RJ-45 x 1

RJ-45 x 1 ? HDMI x 1

Video Resolution (max.)

70M (Full HD 1920 x 1080)
35M (UHD 3840 x 2160)

Extension Distance

Power Supply

DC 12V (Single power supply at either one end of two units (Tx &Rx))

Enclosure

Metal

Weight

170~180

250~265

H x W x D (mm)

20 x 80 x 50

23 x 80 x 67


Package Includes
* 1 x 3D HDMI Extender Transmitter Unit
* 1 x 3D HDMI Extender Receiver Unit
* 1 x Power Adapter (Set / Pc)
* 1 x User’s Manual
* 1 x CAT5 Cable
* 1 x IR Extension Kit
* 2 x Foot Pad Set


Connection Guide
HD-EXR-70-HDBT Connection guide


PRODUCT FEATURE

4K/UHD capability
Supports Ultra High Definition sources and displays. Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices

HDCP Compliant
Adheres to latest specification for High-bandwidth Content Protection. Allows protected content stream to pass between devices

Only Single Power Supply Required
Only requires single power supply at either transmitter or receiver end. Saves time and integration costs

Extended distance HDMI extension
Transmits HDMI signals up to 70m @ 1080P over CAT5e/6/6A or 4K/UHD up to 35m. Uses easy-to-integrate category cable for low-cost, reliable system installation

Bi-directional IR
Delivers 4K/UHD video, audio and Bi-directional 1IR over a single cable. Eliminates multiple cable runs between source and display
