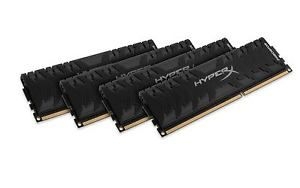

HX318C9PB3K4/32 | Kingston 32GB (4 x 8GB) DDR3-1866MHz RAM Memory Kit - 9-10-11 - HyperX Predator Series - Black

Overview

HyperX HX318C9PB3K4/32 is a kit of four 1G x 64-bit (8GB) DDR3-1866 CL9 SDRAM (Synchronous DRAM), 2Rx8 memory modules, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports (Extreme Intel XMP ® Memory Profiles). Total kit capacity is 32GB. Each module kit has been tested to run at DDR3-1866 at a low latency timing of 9-10-11 at 1.5V. The SPDs are programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

XMP TIMING PARAMETERS

• JEDEC: DDR3-1600 CL11-11-11 @1.5V
• XMP Profile #1: DDR3-1866 CL9-10-11 @1.5V
• XMP Profile #2: DDR3-1600 CL9-9-9 @1.5V

Features

• JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11,10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C
• Asynchronous Reset
• Height 1.614 (41.00mm) w/heatsink, single sided component
