Overview

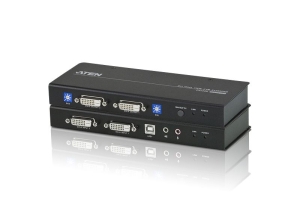

The CE604 is a DVI Dual View USB based KVM Extender that features Dual View
functionality, which enables the video output to seamlessly display on two
monitors. With RS-232 serial functionality, it allows access to a computer
system from a remote console up to 60 m away. The CE604 is built for control and
security purposes, and is targeted towards financial and industrial markets.
The CE604 is equipped with an RS-232 serial channel that connects to a serial
terminal or to serial devices, such as touch screens and barcode scanners. In
addition, it supports an advanced PC Wake Up feature, which allows you to simply
press a pushbutton from the remote dual view console to wake a PC at the local
site. The CE604 eliminates the need for traveling back and forth between the
local computer and remote console, making it an effi cient and flexible
solution.
The CE604 is ideal for applications that require the console to be in a
conveniently accessible location, while the system equipment needs to reside in
a safe place away from dust, dirt and harsh environmental influences. It also
provides a cost-effective way of keeping sensitive data, such as financial and
personal information, safe in a heavily
secured
data center, while still allowing remote access to users.
Compatible Accessories
KVM Cables
- 2L-7D02U - Length: 1.8 m
- 2L-7D03U - Length: 3 m
- 2L-7D05U - Length: 5 m
Cat 5 Cables
Compatible Products
Package Contents
1x CE604L
(Local Unit) |
1x CE604R
(Remote Unit) |
1x USB DVI
KVM Cable Set |
1x DVI
Cable |
2x Power
Adapters |
1x Mounting
Kit |
1x User
Instructions |
Patent No.
I389479 , ZL200910207082.6
Features
Local and
Remote Units connect at distances up to 60 m using two Cat 5e cables |
Transmit
speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232,
microphone and another DVI by adding a second Cat 5e cable |
Supports Dual
View video source transmission (one PC with two video output ports) |
Audio
Enabled supports stereo speakers and microphone |
Supports Real
DDC bypass and ATEN default EDID technology set up various confi
gurations via hotkeys |
Supports PC
wakeup function via one pushbutton or hotkey |
RS-232 serial
channel connect to a serial terminal, or serial devices such as
touchscreens and barcode scanners (Baud Rate up to 9600 bps) |
Compatible
with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and
CS1762A/CS1764A |
Superior
video quality up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz
at 60 m |
Manual
compensation control to adjust video signal quality in order to compensate for
distance |
Built-in
8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge
protection |

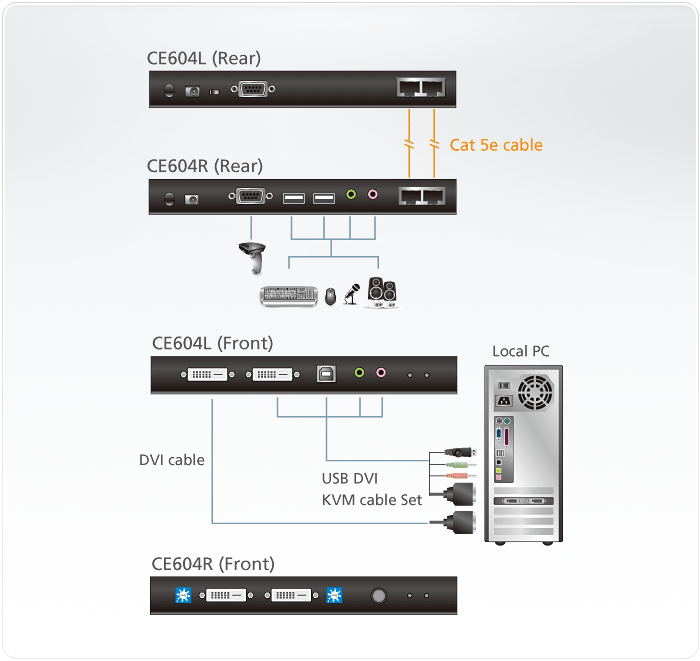

Diagram
Specifications
Function |
CE604L |
CE604R |
Connectors |
Console
Ports |
N/A |
2 x USB Type A Female
(White) |
2 x DVI-D Female
(White) |
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Pink) |
KVM
Ports |
1 x USB Type B Female
(White) |
N/A |
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Pink) |
2 x DVI-D Female
(White) |
RS-232 |
1 x DB-9 Female
(Black) |
1 x DB-9 Male
(Black) |
Power |
1 x DC Jack
(Black) |
1 x DC Jack
(Black) |
Sub /
Main |
2 x RJ-45 Female
(Black) |
2 x RJ-45 Female
(Black) |
LEDs |
Link |
1
(Green) |
1
(Green) |
Power |
1
(Green) |
1
(Green) |
Switches |
Compensation |
N/A |
2 x 8-position
switch |
Firmware
Upgrade |
1 x Slide
Switch |
N/A |
Pushbuttons |
Wakeup
button |
N/A |
1 x
pushbutton |
Video |
1920x1200 @ 60Hz (30
m); 1024x768 @ 60Hz (60 m) |
1920x1200 @ 60Hz (30
m); 1024x768 @ 60Hz (60 m) |
Power
Consumption |
DC5.3V,
3.4W |
D5.3V,
4.3W |
Environmental |
Operating
Temperature |
050C |
050C |
Storage
Temperature |
-2060C |
-2060C |
Humidity |
080% RH,
Non-condensing |
080% RH,
Non-condensing |
Physical
Properties |
Housing |
Metal |
Metal |
Weight |
0.49 kg ( 1.08 lb
) |
0.49 kg ( 1.08 lb
) |
Dimensions (L x W x
H) |
20.20 x 8.53 x 2.50
cm |
20.20 x 8.67 x 2.50
cm |
(7.95 x 3.36 x 0.98
in.) |
(7.95 x 3.41 x 0.98
in.) |
* The specification and
pictures are subject to change without notice. |
|
|
