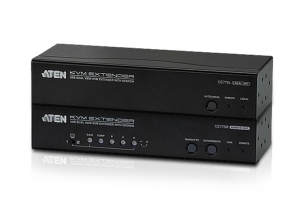

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a
computer system from a remote Dual View console up to 300 m away. The dual view
function provides support for two displays, allowing the video output to
seamlessly display on two monitors. Its advanced PC Wake - Up feature that
allows you simply uses a pushbutton from the remote dual view console to wake a
PC at the local site via RS-232, no need to go to the local site to wake up the
PC. It eliminates the need for traveling back and forth between the local
computer and remote console, effi cient and flexible.
Use the improved built-in front panel tuners to easily adjust the picture
quality. In addition, you can automatically synchronize the time delay of RGB
signals in order to compensate for distance, easy and fast than ever.
Compatible Accessories
Converters
KVM Cables
- 2L-5301U - Length: 1.3m
- 2L-5302U - Lenght: 1.8m
- 2L-5303U - Lenght: 3m
- 2L-5305U - Lenght: 5m
Cat 5 Cables
Package Contents
Patent No.
CN ZL 01124239.6 , CN ZL 200410042772.8 , CN ZL 200710181531.5 , CN ZL
201010119482.4 , DE 102004058233 , JP 4160936 , JP 5244448 , TW 150098 , TW
I243890 , TW I339467 , TW I404425 , US 6160543 , US 6489854 , US 7532998 , US
7585176 , US 8090553 , US 8106898
Features
| Dual View
Support - connect two screens to transmit two video output signals to a remote
site up to 300 m away using inexpensive Cat 5e/6 cables |
| Dual Console operation - control your system from both
the local and remote USB keyboard, monitor, and mouse consoles |
| Deskew Function automatically synchronizes the time delay of RGB
signals to compensate for distance |
| PC Wakeup support - from the remote console, simply use
a pushbutton to wake a computer at the local site via RS-232 |
| Superior
video quality 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m) |
| Gain/Compensation Control adjusts signal strength in order to
compensate for distance |
| On Screen
Display conveniently adjust video quality with the intuitive OSD menu
system |
| RS-232
Channel allow you to connect to a serial terminal, or serial devices such as
touchscreens and barcode scanners |
| Built-in 8KV/15KV ESD protection (Contact voltage 8KV;
Air voltage 15KV) |
| Sun/Mac
keyboard support and emulation * |
| Supports Wide
Screen formats ** |
* 1. PC keyboard combinations emulate
Sun/Mac keyboards |
2. Sun/Mac keyboards only work with their
own computers |
** The EDID data for a widescreen is sent
from the local video output port. For widescreen modes and displays connect the
monitor to the local video output port or use an ATEN EDID emulator. |

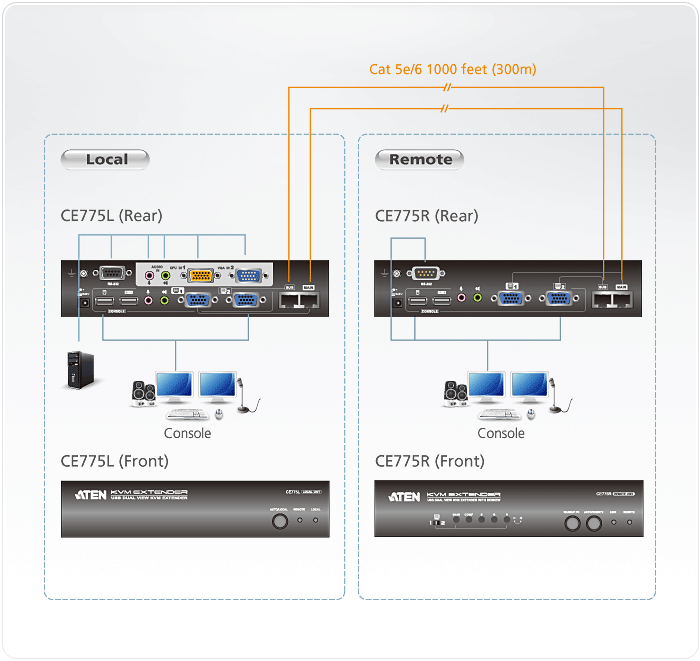

Diagram
Specifications
|
Function |
CE775L |
CE775R |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(White) |
2 x USB Type A Female
(White) |
|
2 x HDB-15 Female
(Blue) |
2 x HDB-15 Female
(Blue) |
|
2 x RJ-45 Female
(Black) |
2 x RJ-45 Female
(Black) |
|
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
1 x Mini Stereo Jack
Female (Pink) |
|
KVM
Ports |
1 x SPHD-17 Female
(Yellow) |
N/A |
|
1 x Mini Stereo Jack
(Green) |
|
1 x Mini Stereo Jack
(Pink) |
|
1 x HDB-15 Male
(Blue) |
|
RS-232 |
1 x DB-9 Female
(Black) |
1 x DB-9 Male
(Black) |
|
Power |
1 x DC Jack
(Black) |
1 x DC Jack
(Black) |
|
Switches |
|
Operation Mode
Selection |
1 x
Pushbutton |
1 x
Pushbutton |
|
Wakeup
PC |
N/A |
1 x
Pushbutton |
|
Video Output Port
Selection |
N/A |
1 x Slide
Switch |
|
Video Gain
Tuner |
N/A |
1 x
Knob |
|
Video Compensation
Tuner |
N/A |
1 x
Knob |
|
RGB
Tuner |
N/A |
3 x
Knob |
|
LEDs |
|
Local |
1
(Green) |
N/A |
|
Remote |
1
(Green) |
1
(Green) |
|
Link |
N/A |
1
(Green) |
|
Emulation |
|
Keyboard /
Mouse |
USB |
USB |
|
Video |
1920 x 1200 @ 60Hz (150
m); |
1920 x 1200 @ 60Hz (150
m); |
|
1280 x 1024 @ 60Hz (300
m) |
1280 x 1024 @ 60Hz (300
m) |
|
Power
Consumption |
DC5.3V/4.38
W |
DC5.3V/10.27
W |
|
Environmental |
|
Operating
Temperature |
050C |
050C |
|
Storage
Temperature |
-2060C |
-2060C |
|
Humidity |
080% RH,
Non-condensing |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
Metal |
|
Weight |
0.69 kg ( 1.52 lb
) |
0.69 kg ( 1.52 lb
) |
|
Dimensions (L x W x
H) |
20.00 x 7.62 x 4.20
cm |
20.00 x 7.63 x 4.20
cm |
|
(7.87 x 3 x 1.65
in.) |
(7.87 x 3 x 1.65
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
|
