Overview

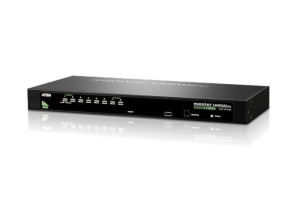

The CS1308 KVM switch allows access and control up to 64 computers from a
single console (keyboard, mouse, and monitor). As many as 8 additional switches
can be cascaded bringing the total number of connected computers to 64 computers
that can be controlled from a single keyboard-monitor-mouse console. The switch
supports both USB and PS/2 connections for the console and computers.
Compatible Accessories
KVM Cables
- 2L-5201P - Lenght: 1.2m
- 2L-5202P - Lenght: 1.8m
- 2L-5702P - Lenght: 1.8m
- 2L-5203P - Lenght: 3m
- 2L-5206P - Length: 6m
- 2L-5201U - Lenght: 1.2m
- 2L-5202U - Lenght: 1.8m
- 2L-5203U - Lenght: 3m
KVM Modules & Accessories
Compatible Products
KVM Extenders
- CE700A
- CE750
- CE770
- CE790
- CE880B
- CE370
- CE350
- CE252
- CE250A
KVM over IP Switches
- KN4140v
- KN4132v
- KN4132
- KN4124v
- KN4116v
- KN4116
- KN2116VA
- KN2140v
- KN2132v
- KN2132
- KN2124v
- KN2116v
- KN2116A
- KN1116v
- KN1108v
- KN2132VA
- KN4116A
LCD KVM Switches
Rack KVM Switches
- CS1758
- CS1754
- CS1316
- CS1308
Package Contents
Patent No.
US 7585176 , TW I339467 , CN ZL 200710181531.5
Features
| One USB-PS/2
console controls 8 computers |
| Cascade up to
2 levels - control up to 64 computers |
| Dual
Interface - supports computers with PS/2 or USB keyboards and mice |
| Multiplatform
support - Windows 2000/XP/Vista, Linux, Mac, and Sun |
| Video
DynaSync - Exclusive ATEN technology eliminates boot-up display problems and
optimizes resolution when switching between ports |
| Supports USB
keyboards for PC, Mac and Sun |
| Auto PS/2 and
USB interface detection |
| USB or PS/2
keyboard and mouse emulation - computers boot even when the console focus is
elsewhere |
| Superior
video quality - up to 2048 x 1536; DDC2B |
| Computer
selection via front panel pushbuttons, hotkeys and multilingual on-screen
display (OSD) menu |
| Two level
password security - only authorized users view and control computers; up to
four users and an administrator with a separate profile for each |
| Auto Scan
feature for monitoring user-selected computers |
| Hot pluggable
- add or remove computers without having to power down the switch |
| Buzzer on/off
via hotkey and OSD |
| Firmware
upgradeable |
| No software
installation required |
| Designed for
desktop or rack mount (19" system rack, 1U) |

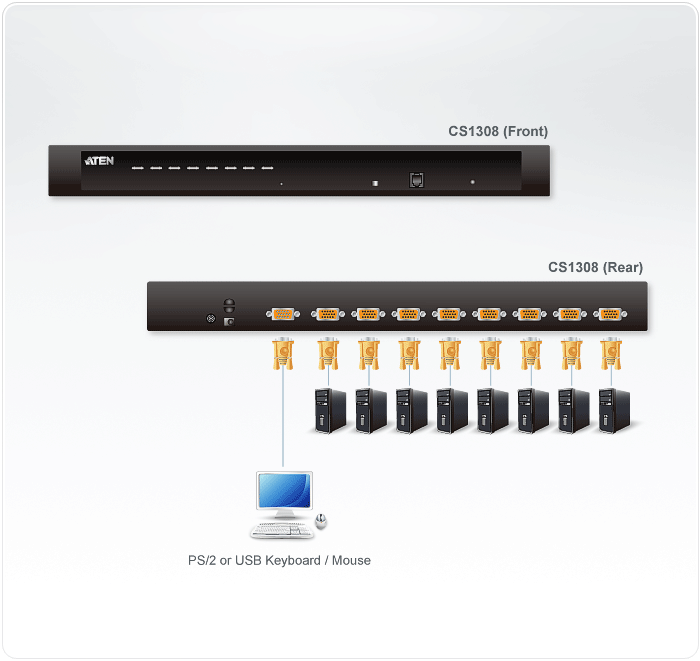

Diagram
Specifications
|
Computer
Connections |
|
Direct |
8 |
|
Maximum |
64 (via
Cascade) |
|
Port
Selection |
OSD, Hotkey,
Pushbutton |
|
Connectors |
|
Console
Ports |
1 x SPHD-18 Male
(Yellow) |
|
KVM
Ports |
8 x SPHD-15 Female
(Yellow) |
|
Firmware
Upgrade |
1 x RJ-11 Female
(Black) |
|
Power |
1 x DC
Jack |
|
Switches |
|
Ports |
8 x
Pushbutton |
|
Firmware
Upgrade |
1 x
Slide |
|
LEDs |
|
Online |
8
(Orange) |
|
Selected |
8
(Green) |
|
Power |
1 (Dark
Green) |
|
Emulation |
|
Keyboard /
Mouse |
PS/2,
USB |
|
Video |
2048 x 1536;
DDC2B |
|
Scan
Interval |
1 255 Seconds (Default:
5 secs) |
|
Power
Consumption |
DC 5.3 V; 5
W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
1.89 kg ( 4.16 lb
) |
|
Dimensions (L x W x
H) |
43.72 x 16.13 x 4.40
cm |
|
(17.21 x 6.35 x 1.73
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
