Overview

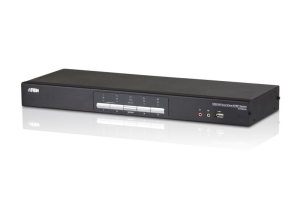

The CS1644A 4-Port USB DVI Dual View KVMPâ„¢ Switch is a multi-application
device that integrates a 4-port KVM switch with 2-port USB hub. The newest
version now supports Quad-View functionality with two Dual View KVM Switches
connected.
The new CS1644A features multi-view capabilities, which allow two switches to
be daisy chained for a dual, triple, or quadview display across multi-monitor
installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D
displaying,allowing you to manage various 3D visual effects. It allows you to
manipulate all connected computers from a single console to save resources and
work space. It enables each computer to access connected peripherals on a
one-computer-at-a-time basis, making it ideal for users who need delicate visual
effects and multi-tasking on several computers. The CS1644A is perfect for
graphic designers, banking and financial consultants, gamers and medical
professionals- demanding a high quality switch that provides stunning color,
clarity and functionality.
Compatible Accessories
KVM Cables
- 2L-7D02U - Lenght: 1.8m
- 2L-7D05U - Lenght: 5m
- 2L-7D03U - Lenght: 3m
- 2L-7D05UD - Lenght: 5m
- 2L-7D03UD - Lenght: 3m
- 2L-7D02UD - Lenght: 1.8m
DVI Cables
Compatible Products
KVM Extenders
Package Contents
Patent No.
EP1451696 , JP 5232209 , CN ZL 02824593.8 , CN ZL 200910147872.X , JP 4558319
, JP 4651633 , TW 203183 , TW I220489 , US 6564275 , US 6957287 , US 7340556 ,
US 7472217 , US 8176226 , US 8140734 , US 8195853
Features
| One
dual-screen USB console controls two/four dual-screen computers and two
additional USB devices |
| Multi-View
Display Easily connect two CS1642A/1644A's units for a second
dual-screen setup controlled through a single connection |
| Superior
video quality 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays
up to 1920 x 1200 at 120Hz (DVI Single link) |
| Supports
widescreen resolutions |
| Independent
switching of KVM, USB, and Audio focus |
| DVI digital
and analog monitor support fully compliant with DVI specifi
cations; and HDCP compliant |
| Multiplatform
support Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD |
| Sun/Mac
keyboard support and emulation ** |
| Video
DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and
optimizes resolution when switching between ports |
*
Supports Linux Kernel 2.6 and higher. The CS1644A has a builtin USB 2.0 hub, so
will not support PCs or OS that do not support USB 2.0. |
**
PC keyboard combinations emulate Mac keyboards. |
**
Mac keyboards only work with their own computers. |

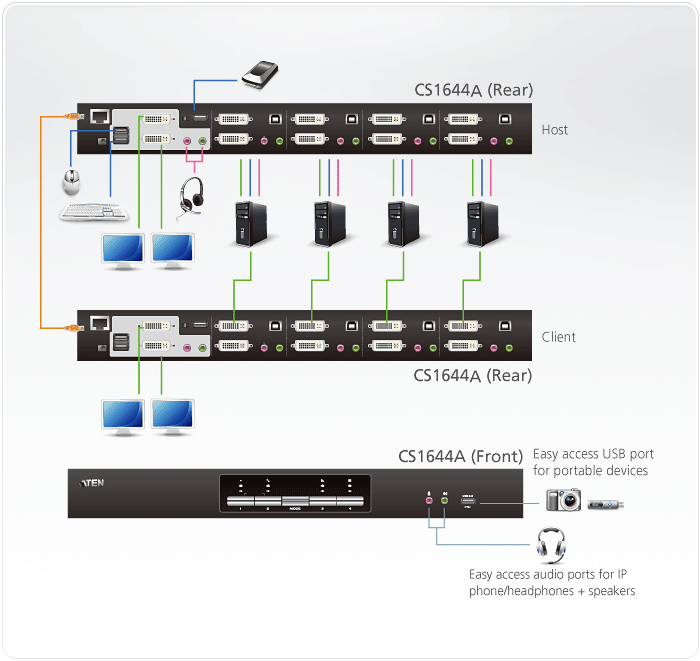

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Hotkey, Pushbutton,
Mouse |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(White, rear panel) |
|
2 x DVI-I Female
(White) |
|
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
|
KVM
Ports |
4 x USB Type B Female
(white) |
|
8 x DVI-I Female
(white) |
|
4 x Mini Stereo Jack
Female (Green) |
|
4 x Mini Stereo Jack
Female (Pink) |
|
Daisy Chain
Ports |
1 x RJ-45 Female (rear
panel) |
|
Power |
1 x DC
Jack |
|
USB
Hub |
2 x USB Type A Female
(Black; 1 x front panel; 1 x rear panel) |
|
Switches |
|
Selected |
5 x
Pushbutton |
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
DVI Dual Link: 2560 x
1600 at 60Hz; 1920 x 1200 at 120Hz (3D Display) |
|
Scan
Interval |
1-99 secs. (5 secs.
default) |
|
Power
Consumption |
DC 5.3 V, 12.19
W |
|
Environmental |
|
Operating
Temperature |
050C |
|
Storage
Temperature |
-2060C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Plastic +
Metal |
|
Weight |
2.32 kg ( 5.11 lb
) |
|
Dimensions (L x W x
H) |
43.72 x 15.98 x 4.40
cm |
|
(17.21 x 6.29 x 1.73
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
