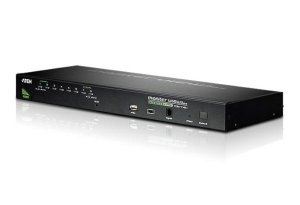

The CS1708A KVM switch is a control unit that allows access to multiple
computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A
single CS1708A can control up to 8 computers. As many as 31 additional switches
can be daisy-chained to each other, so that up to 256 computers can all be
controlled from a single keyboard-monitor-mouse console. Additionally, a front
panel USB port is available for each computer to access any peripherals
connected to it on a one-at-a-time basis.
Compatible Accessories
KVM Cable
- 2L-5702P - Lenght: 1.8m
- 2L-5207U - Lenght: 5m
- 2L-5203U - Lenght: 3m
- 2L-5202U - Lenght: 1.8m
- 2L-5201U - Lenght: 1.2m
- 2L-5206P - Lenght: 6m
- 2L -5203P - Lenght: 3m
- 2L-5202P - Lenght: 1.8m
- 2L-5201P - Lenght: 1.2m
KVM Modules & Accessories
Daisy Chain Cables
- 2L-1715 - Lenght: 15m
- 2L-1705 - Lenght: 5m
- 2L-1703 - Lenght: 3m
- 2L-1701 - Lenght: 1.8m
- 2L-1700 - Lenght: 0.6m
Compatible Products
Cat 5 KVM Switches
KVM Extenders
- CE800B
- CE790
- CE770
- CE750
- CE700A
- CE370
- CE350
- CE252
- CE250A
KVM over IP Switches
- KH1516Ai
- KH1508Ai
- CS1716i
- CS1708i
LCD KVM Switches
- KL1516Ai
- KL1516A
- KL1508Ai
- KL1508A
- CL5816
- CL5808
- CL5716
- CL5708
- CL1316
- CL1308
- CL1016
- CL1008
Package Contents
Matrix KVM Switches
Rack KVM Switches
- ACS1216A
- ACS1208A
- CS1716A
- CS1708A
- KH0116
Package Contents
Patent No.
CN ZL 02122202.9 , CN ZL 200710181531.5 , TW 183765 , TW I339467 , US 6564275
, US 7386584 , US 7585176 , US 7640289
Features
| One USB-PS/2
console controls up to 8 computers |
| Daisy-chain
up to 31 additional units - control up to 256 computers from a single
console |
| Front
accessible USB port allows each computer to access USB peripherals * |
| Dual
Interface - supports computers and console with PS/2 or USB keyboards and
mice |
| Multiplatform
support - Windows, Linux, Mac and Sun |
| Video
DynaSync - stores the console monitor's EDID (Extended Display Identification
Data) to optimize display resolution |
| Supports USB
keyboards for PC, Mac and Sun |
| Auto PS/2 and
USB interface detection |
| USB / PS/2
keyboard and mouse emulation - computers boot even when the console focus is
elsewhere |
| Superior
video quality - up to 2048 x 1536; DDC2B |
| No software
required - convenient computer selection via front panel pushbuttons, hotkeys
and multilingual on-screen display (OSD) menus |
| Auto-senses
station's position on daisy-chained installations; no need for manual dip
switch setting; front panel led indicates station's position |
| Port names
automatically reconfigured when station sequence is changed |
| Two level
password security; only authorized users view and control computers; up to
four users and an administrator with separate profiles for each |
| Auto Scan
feature for monitoring user-selected computers |
| Broadcast
Mode - operation simultaneously performed on all selected computers...
etc |
| Hot pluggable
- add or remove computers without having to power down the switch |
| Buzzer on/off
via hotkey and OSD |
| Firmware
upgrades to all the chained KVM switch at the same time via the daisy-chain
cable |
| Rack
mountable in 19" system rack (1U) |
*
The USB peripheral function only works with USB cable set connections. It will
not work with PS/2 cable set connections. |

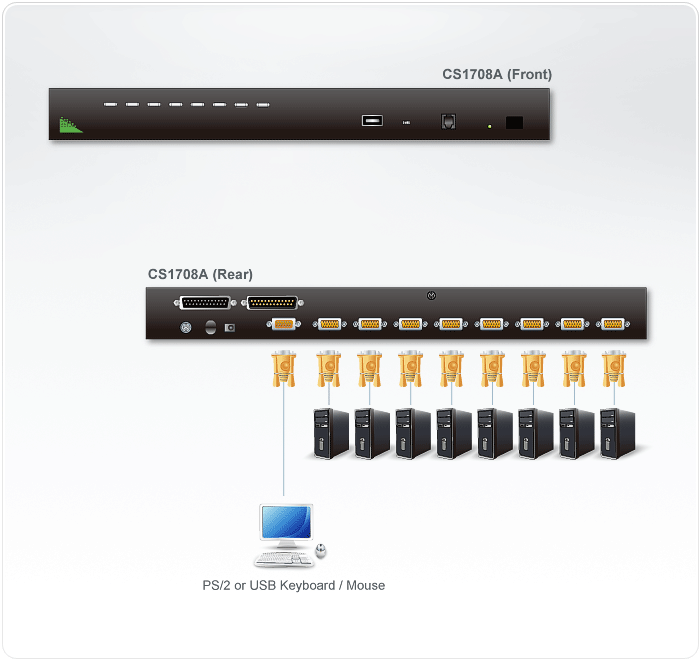

Diagram
Specifications
|
Computer
Connections |
|
Direct |
8 |
|
Maximum |
256 (via
Daisy-chain) |
|
Port
Selection |
OSD, Hotkey,
Pushbutton |
|
Connectors |
|
Console
Ports |
1 x SPHD-18 Male
(Yellow) |
|
KVM
Ports |
8 x SPHD-15/17 Female
(Yellow) |
|
Daisy Chain
Ports |
1 x DB-25 Female
(Black) |
|
1 x DB-25 Male
(Black) |
|
Firmware
Upgrade |
1 x RJ-11 Female
(Black) |
|
USB
Port |
1 x USB Type A
Female |
|
Power |
1 x DC Jack Female
(Black) |
|
LEDs |
|
Online |
8
(Orange) |
|
Selected |
8
(Green) |
|
Station
ID |
1 x 2-digit, 7-segment
(Orange) |
|
Power |
1 (Dark
Green) |
|
Switches |
|
Port
Selection |
8 x
Pushbutton |
|
Firmware Upgrade
Recovery |
1 x
Slide |
|
Emulation |
|
Keyboard /
Mouse |
PS/2,
USB |
|
Video |
2048 x 1536;
DDC2B |
|
Scan
Interval |
1 255 Seconds (Default:
5 secs) |
|
Power
Consumption |
DC 5.3 V; 5
W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
2.66 kg ( 5.86 lb
) |
|
Dimensions (L x W x
H) |
43.72 x 15.99 x 4.40
cm |
|
(17.21 x 6.3 x 1.73
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
