Overview

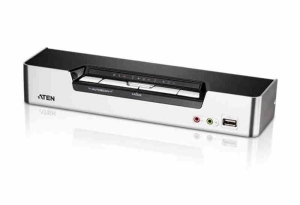

With its unique design and innovative features, the CubiQâ„¢ CS1794 USB 2.0
HDMI KVMPâ„¢ Switch provides both style and functionality for today's multimedia
SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the
CS1794 provides seamless HDMI signal switching between 4 PCs or other
HDMI-enabled devices, such as gaming consoles, and allows users to share USB
peripherals from a single console.
The CS1794 provides enhanced independent switching via front panel
pushbuttons and keyboard hotkeys, and features Video DynaSyncâ„¢ technology to
ensure that HDMI display resolution is always optimized. With integrated digital
audio, the CS1794 also allows users to experience high-definition sound, such as
Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the
home or office, the CubiQâ„¢ CS1794 offers the ultimate in space-saving,
streamlined KVM technology for the desktop.
Compatible Accessories
KVM Modules & Accessories
Package Contents
Patent No.
CN ZL 02824593.8 , EP 1451696 , JP 4558319 , JP 4651633 , JP 5232209 , TW
203183 , TW I220476 , TW I220489 , TW I285828 , TW I467380 , US 6564275 , US
6934398 , US 6957287 , US 7047344 , US 7269265 , US 7340556 , US 7472217 , US
8140734 , US 8176226
Features
-
4-port HDMI USB 2.0 KVMP
Switch
-
One USB console controls four
HDMI-interface computers and two additional USB devices
-
2-port USB 2.0 hub built in; fully
compliant with the USB 2.0 specification
-
Independent switching of KVM, USB
peripheral, and audio focus via front panel pushbuttons and
hotkeys
-
HDMI digital monitor support -
fully compliant with HDMI; also HDCP compliant
-
Dolby True HD and DTS HD Master
Audio support
-
Superior video quality - supports
480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
-
Power on detection - If one of the
computers is powered off, the CS1794 will automatically switch to the next
powered-on computer
-
Supports widescreen
resolutions
-
Multiplatform support - Windows,
Linux,and Mac
-
Console mouse port
emulation/bypass feature supports most mouse driver and multifunction
mice
-
Video DynaSync - stores the
console monitor's EDID (Extended Display Identification Data) to optimize
display resolution
-
Complete keyboard emulation for
error-free booting
-
Mac keyboard support and
emulation*
-
Auto Scan Mode for monitoring all
computers and HDMI devices
-
Firmware Upgradable
*
1. PC keyboard combinations emulate Mac Keyboards
2.
Mac keyboards only work with their own computers

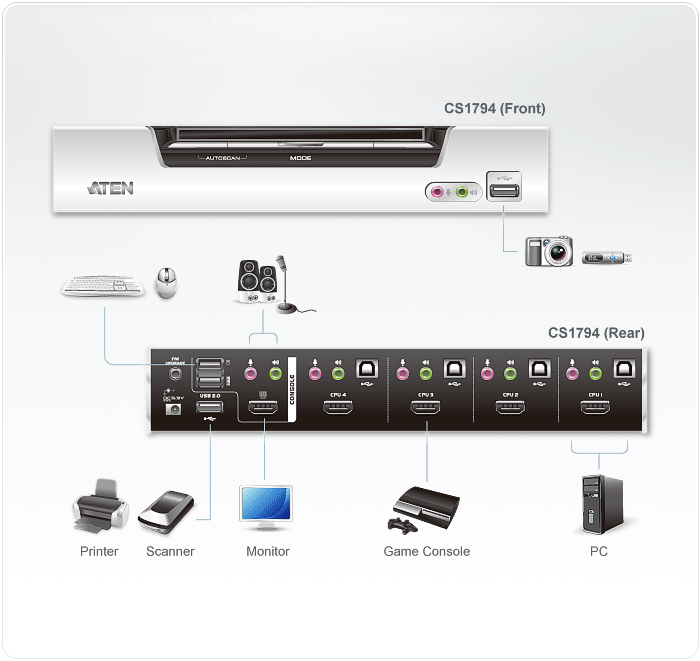

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Hotkey,
Pushbutton |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black; rear panel) |
|
1 x HDMI Type A Female
(Black) |
|
2 x Mini Stereo Jack
Female (Green; 1 x front, 1 x rear) |
|
2 x Mini Stereo Jack
Female (Pink; 1 x front, 1 x rear) |
|
KVM
Ports |
4 x USB Type B Female
(White) |
|
4 x HDMI Type A Female
(Black) |
|
4 x Mini Stereo Jack
Female (Green) |
|
4 x Mini Stereo Jack
Female (Pink) |
|
Firmware
Upgrade |
1 x 4-conductor 3.5mm
Jack (Black) |
|
Power |
1 x DC
Jack |
|
USB
Hub |
2 x USB Type A Female
(White; 1 x front panel; 1 x rear panel) |
|
Switches |
|
Selected |
5 x
Pushbutton |
|
LEDs |
|
Audio |
5
(Green) |
|
KVM |
5
(Orange) |
|
USB |
5
(Green) |
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
1080p / 1920 x 1200
(DVI) |
|
Scan
Interval |
1-99 Seconds (Default:
5 sec.) |
|
Power
Consumption |
DC 5.3 V, 4.8
W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal,
Plastic |
|
Weight |
0.53 kg ( 1.17 lb
) |
|
Dimensions (L x W x
H) |
26.23 x 7.68 x 4.40
cm |
|
(10.33 x 3.02 x 1.73
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
