All stock codes associated to this product
SSTST60FES230, SST-ST60F-ES230, II35257
Overview
| High
efficiency with 80 PLUS certification |
| 24/7
continuous power output with 40 operating temperature |
| Class-leading
single +12V rail |
| Active PFC
Circuitry |
| PCI-E 8pin
and PCI-E 6pin connector support |
| Silent
running 120mm fan with 18dBA |
The Strider Essential series is a line of power supplies designed with high
affordability and great performance. They have 80 PLUS certification with
maximum efficiency of up to 85% under 230V. Equipped with powerful single +12V
rail and quiet running fan, they also provide stable performance with minimum
noise. For longevity, they are based on proven design and built with quality
components to support 24/7 operation at up to 40 degrees Celsius. Even high-end
systems with powerful graphics cards can be powered easily by Strider Essential
PSUs standard 8pin/6pin PCI-E connectors, making them an outstanding choice for
those seeking best value and performance for their money.
Remark

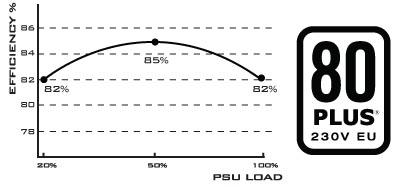

Designed for 80 PLUS level of efficiency to reduce wasted heat and save on
electricity.

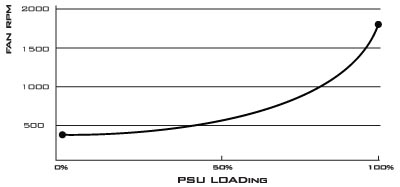

Built-in 120mm fan has excellent airflow and low noise, perfect for quiet
home or office use.
Powerful single +12V rail design, perfect for future high-end component
upgrades or overclocking.

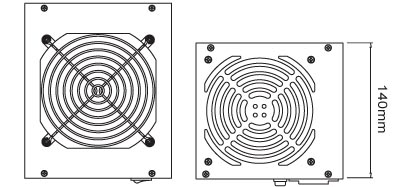

Compact 140mm depth design for easier installation in small from factor.
Specifications
|
Model
No. |
SST-ST60F-ES230 |
|
Max. DC
Output |
600W |
|
Power
density |
332W per
liter |
|
Load Range |
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
Max.(Amps) |
20A |
20A |
46A |
2.5A |
0.3A |
|
Peak
(Amps) |
/ |
/ |
/ |
/ |
/ |
|
Min.(Amps) |
0A |
0A |
0A |
0A |
0A |
|
Range
(%) |
5% |
5% |
5% |
5% |
10% |
|
Line
Reg.(%) |
1% |
1% |
1% |
1% |
1% |
|
Ripple(mVp-p) |
50mV |
50mV |
120mV |
50mV |
120mV |
|
Color |
BlackLead-Free
Paint |
|
combined +3.3,
+5V |
120W |
|
combined
+12V |
552W |
|
Input
Voltage |
180V~264V |
|
Input Frequency
Range |
47Hz~63Hz |
|
PFC |
Active PFCPF>0.9
at full load |
|
Efficiency |
82% ~ 85% at 20% ~ 100%
loading |
|
MTBF |
100,000
hours |
|
Operating
temperature |
0C ~
40C |
|
Protection |
Over Power
Protection |
|
Over Voltage
Protection |
|
Short Circuit
Protection |
|
Connectors |
1 x 24 / 20-Pin
motherboard connector500mm |
|
1 x 8 / 4-Pin EPS / ATX
12V connector750mm |
|
2 x 8 / 6-Pin PCIE
connector"500mm / 150mm" x 2 |
|
4 x SATA connector"500mm
/ 150mm" x 2 |
|
3 x 4-Pin Peripheral
connector500mm / 150mm / 150mm |
|
1 x 4-Pin Floppy
connector500mm / 150mm / 150mm / 150mm |
|
Cooling
System |
Single 120mm silent
fan |
|
Noise
Level |
18 dBA
minimum |
|
Dimension |
150 mm (W) x 86 mm (H)
x 140 mm (D) |
|
Weight |
1.41
kg |
|
Form
factor |
ATX |
|
Certification |
80
PLUS |
|
Other |
GPU Support list |
|
Compatible with ATX12V
v2.4 |
