All stock codes associated to this product
X99EXTREME4/3.1, X99EXTREME4/31
Overview
Supports NVIDIA® Quadro and AMD FirePro Workstation Graphics
Cards
Three PCIe Gen3 x16 slots that not only support ordinary graphics cards, but
are also fully compatible with professional NVIDIA® Quadro and AMD FirePro
workstation graphics solutions.
XXL Aluminum Alloy Heatsink Design
The extra large aluminum alloy heatsinks take away heat dramatically. As the
MOSFETs and chipsets areas are well covered by these heatsinks to protect them
from overheating, MOSFET and chipsets can perform with lower temperature, and
your motherboard and system will be more stable and reliable.
Premium 60A Power Choke
Compared to traditional chokes, ASRocks new-gen premium power chokes
effectively increase up to 3 times better saturation current, providing enhanced
and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specially designed for memory power delivery, the new-gen alloy chokes
feature a highly magnetic and heat resistant design, thus delivering more stable
and reliable power to the motherboard.
Ultra Dual-N MOSFET
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides
larger die area and lower Rds(on), so the power supply for the CPU Vcore is more
efficient.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours.
Compared to other counterparts on high-end motherboards that merely have
lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that
offer 20% longer lifespans and provide more stability and reliability.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid
quality and gives the motherboard a more mysterious touch.

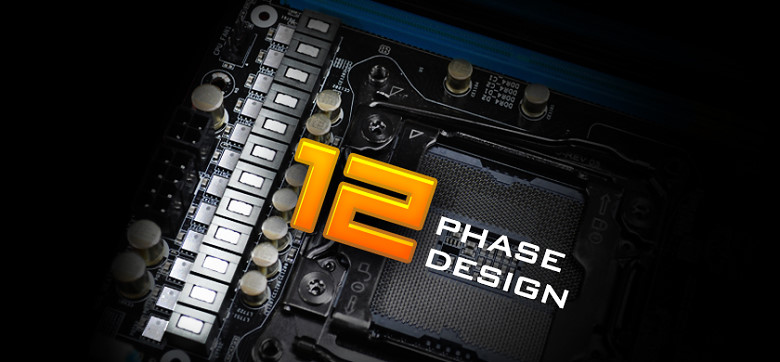

12 Power Phase Design
Designed with a 12 Power Phase design, this motherboard features sturdy
components and completely smooth power delivery to the CPU. Plus, it offers
unmatched overclocking capabilities and enhanced performance with the lowest
temperature for advanced gamers as well.

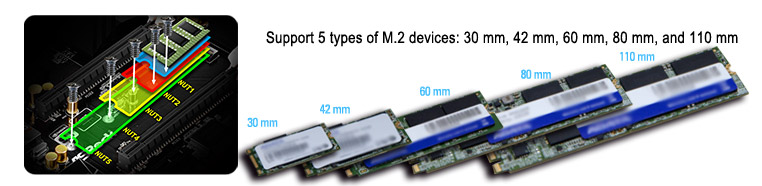

Ultra M.2 (PCIe Gen3 x4 & SATA3)

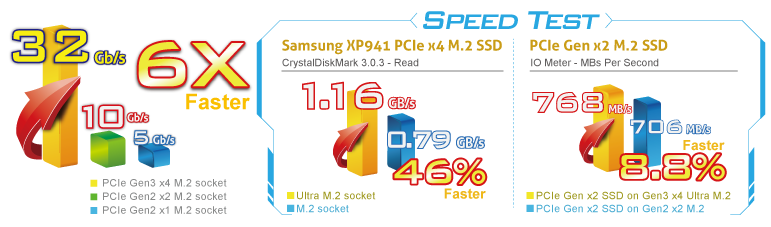

The World’s Fastest M.2 Socket - PCIe Gen3 x4
The onboard M.2 socket is a new interface for connecting Next Generation Form
Factor (NGFF) SSDs or other devices. ASRock is the first in the world to
implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2
interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2
Gen2 x1 solutions that are limited to 5Gb/s.
X Series OC Socket
ASRock’s newly designed LGA2011 CPU socket that adds more pins to boost the
performance of the CPU and memory, plus it also unlocks several hidden voltage
tweaking options for advanced overclocking.
Digi Power
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses
a next generation digital PWM (Pulse-Width Modulation) design, which provides
CPU Vcore voltage more efficiently and smoothly, so that the stability and
lifespan of the motherboard is greatly enhanced.

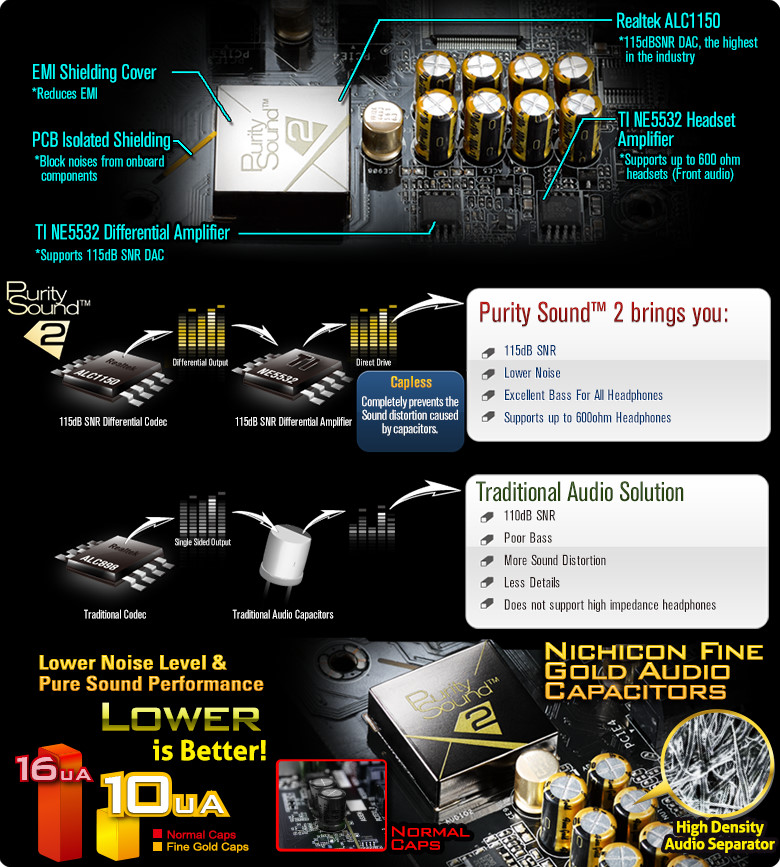

Purity Sound 2
Purity Sound 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec,
115dB SNR DAC with Differential Amplifier, TINE5532
Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding
cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are
what every audiophile has been longing for on a PC, ASRock applied these high
quality capacitors for Purity Sound 2.

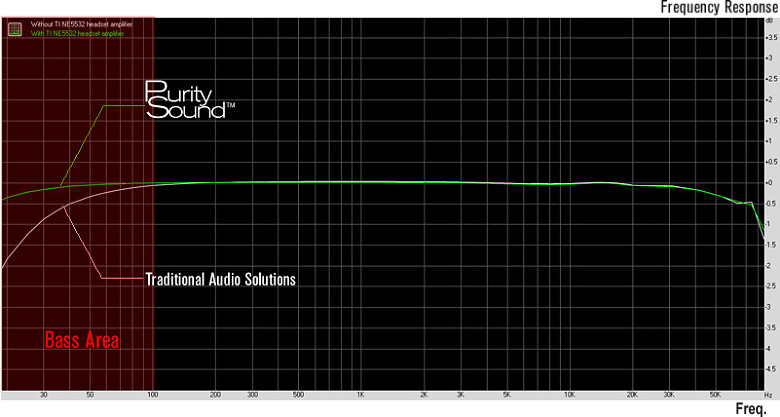

This frequency response chart was tested with 32 ohm normal headphones. It
indicates how traditional audio solution's frequency response drops drastically
at low frequencies. Compared to traditional audio solution's (2.0dB) at 20 Hz
bass low freq area, Purity Sound 2 still maintains its frequency response
(0.4dB) and provides better bass with the TINE5532
amplifier, improving the bass quality by 20% (1.6dB)!

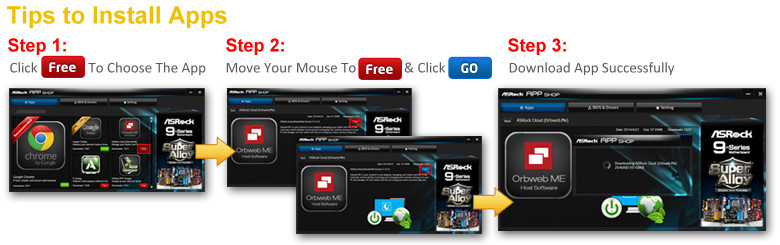

ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and
support software for users to download. You can easily optimize your system and
keep your motherboard up to date with ASRock APP Shop.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more
new features and improved utilities, including XFast RAM and a whole lot
more.
USB Key
In a world where time is money, why waste precious time everyday typing
usernames to log in to Windows? Why should we even bother memorizing those foot
long passwords? Nobody has time for that! Just plug in the USB Key and let your
computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup
utility during POST. Therefore, ASRock Restart to UEFI technology allows users
to easily enter the UEFI setup utility automatically when turning on the PC next
time. It is designed for those who constantly need to enter the UEFI setup
utility
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG
(Online Management Guard) technology allows you to establish an internet curfew
or restrict internet access at specified times. Administrators are able to
schedule the starting and ending hours of internet access granted to other
users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup
utility if you are having trouble with your personal computer. Users may try to
choose the category of the issue they have encountered, describe the problem in
detail, and then attach an optional picture or log file for our technical
support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal
computer dry. Now users may prevent motherboard damages due to dampness by
enabling Dehumidifier. When it is enabled, the computer will power on
automatically to dehumidify the system after entering S4/S5 state.
Easy Driver Installer
For users that dont have an optical disk drive to install the drivers from
our support CD, Easy Driver Installer is a handy tool in the UEFI that installs
the LAN driver to your system via an USB storage device, then downloads and
installs the other required drivers automatically through the internet.
Completely no CD or optical disk drive required!
ASRock XFast RAM fully utilizes the memory space
that cannot be used under Windows32-bit operating systems. It
shortens the loading time of previously visited websites, making web surfing
faster than ever. And it also boosts the speed of Adobe Photoshop 5 times
faster. Another advantage of ASRock XFast RAM is that it reduces the frequency
of accessing your SSDs or HDDs in order to extend their lifespan.
When Internet
Explorer loads very slowly for no clear reason, it's usually due to inefficient
management. ASRock is rolling out super efficient web management in the
motherboard industry. XFast LAN is a convenient tool that controls internet
related applications easily and efficiently. Creating a perfect Internet
environment, all you need is a smart manager. ASRock XFast LAN allows you to
enjoy more speed, easier multitasking, enhanced multimedia experience, and more
all without weighing you down.Specification

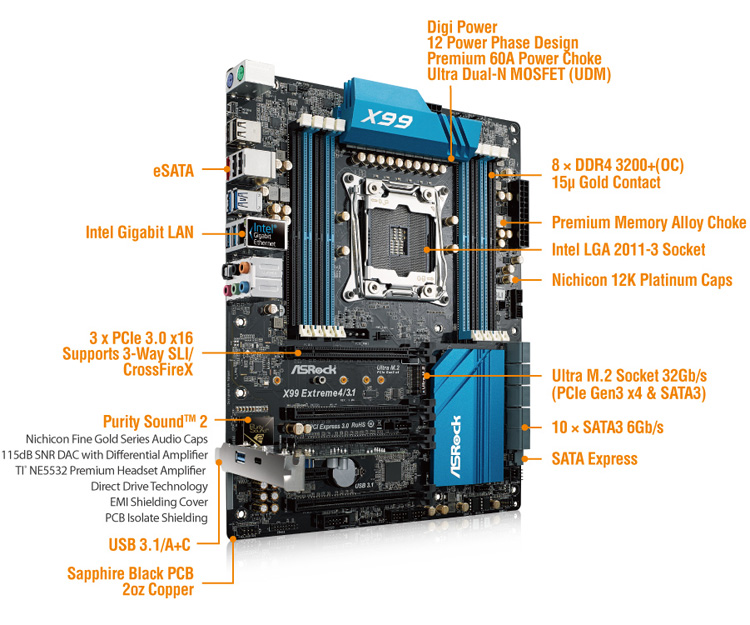

- ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for
the LGA 2011-3 Socket
- X Series OC Socket, Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3200+(OC)
- 3 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
- Supports AMD 3-Way CrossFireX™ and NVIDIA® 3-Way SLI™
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Soundâ„¢ 2
& DTS Connect
- Intel® Gigabit LAN
- 10 SATA3, 1 eSATA, 1 SATA Express, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 10Gb/s (1 x Type-A + 1 x Type-C) (Supported by the bundled
ASRock USB 3.1/A+C), 6 USB 3.0 (2 Front, 4 Rear), 8 USB 2.0 (4 Front, 4 Rear)
- 1 COM Port Header, 1 TPM Header, 1 Thunderboltâ„¢ AIC Connector
- Supports ASRock HDD Saver Technology, Full Spike Protection, APP
Shop
