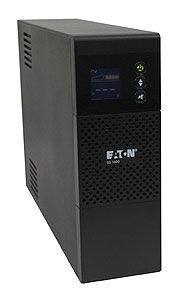

Eaton 5S1600AU Line-Interactive UPS - 1600VA/960W
The Eaton 5S UPS provides cost-effective line-interactive backup power and
voltage regulation for small and medium businesses with workstations, desktop
PCs, telephone equipment and POS applications. With its compact form factor, the
5S UPS can be utilized as a standalone tower or under a computer monitor.
Eaton 5S UPS – Features
- Delivers consistent, clean output with Automatic Voltage Regulation (AVR)
- Saves space with a compact design that can be deployed as a tower or under
a computer monitor
- HID-compliant USB port, for automatic integration with common operating
systems
- Protects networked equipment from back door power surges coming through
Ethernet, internet or telephone lines
- Extends UPS service life with replaceable batteries
Specifications
| General |
| Topology |
Line-Interactive (AVR with Booster + Fader) |
| Configuration |
Tower or under monitor |
| Part Number |
5S1600AU |
| Color |
Black |
| Rating (VA/Watts) |
1600/960 |
| Dimensions (H x W x D, mm) |
250 x 87 x 382 |
| Weight (kg) |
11.08 |
| Warranty |
2 years warranty including batteries |
| Electrical Input |
| Connection |
|
| Input Voltage Range |
175V-275 V |
| Nominal Voltage |
230 V |
| Operating Frequency |
50-60 Hz autoselect |
| Electrical Output |
| Nominal Voltage |
230 VAC |
| Output voltage regulation |
230 V +/- 10% |
| Output Receptacles |
|
|
| Battery Management |
Automatic battery test, deep-discharge protection, cold-start capable,
replaceable batteries |
Communications
| Communication Ports |
HID-compliant USB port for automatic integration with most common
operating systems (Windows Vista, 7 & 8, Linux, Mac OS X), cable
supplied |
| Environmental & Standards |
| Audible Noise |
< 40 dB at 1 Meter |
| Operating Temperature |
0 to 40C |
| Safety markings |
IEC/EN 62040-1, IEC/EN 62040 -5 |
| Markings |
CB Report, CE mark |
| Data Line Protection |
Tel/Fax/Modem/Internet and Ethernet |
