All stock codes associated to this product
ADV100505975, ADV100-505975
Application Certifications
The AMD FirePro professional graphics product family is certified on more than 100 different applications for improved performance and reliability, including the most popular design and engineering and media and entertainment applications.
8GB GDDR5 Memory
Helps to
improve overall workstation speed and responsiveness, and application
performance. Load large assemblies, models and data sets and manipulate
them with ease, or edit 4K video, layer in multiple effects and color
correct on the fly.
DirectGMA (Direct Graphics Memory Access) Support
DirectGMA bypasses any need to traverse the host's main memory, reducing CPU utilization and avoiding redundant transfers over PCIe, resulting in high throughput, low latency data transfers.
Support for DisplayPort 1.2a and Adaptive-Sync
The new DisplayPort 1.2a standard and its new Adaptive-Sync feature enables FreeSync technology from AMD that allows GPU control of display refresh rates for tear-free and jitter-free image quality when rotating models or viewing video content1.
GeometryBoost
Allows

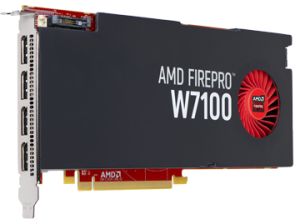

the AMD FirePro W7100 to process geometry data at a rate of four times
per clock cycle, doubling the per clock rate of primitive and vertex
processing compared to the AMD FireProâ„¢ W7000 workstation graphics card.
AMD Eyefinity Technology
A multidisplay technology enabling highly immersive and powerful multitasking experience across up to four displays, powered by a single AMD FirePro W7100 graphics card2.
OpenCL 2.0 Support
Tap into the parallel computing power of modern GPUs and multicore CPUs to accelerate compute-intensive tasks in leading CAD/CAM/CAE and media and entertainment applications that support OpenCL. AMD FireProâ„¢ W7100 supports OpenCL 1.2 and is expected to support OpenCL 2.0, allowing developers to take advantage of new features that give GPUs more freedom to do the work they are designed to do.
Specifications
Memory
- 8GB GDDR5 memory
- 256-bit memory interface
- Up to 160 GB/s bandwidth
Compute Performance
- 1792 stream processors (28 compute units)
- 3.3 TFLOPS peak single-precision floating-point performance
- 206 GFLOPs peak double-precision floating point performance
Display Outputs
- Four Standard DisplayPort outputs
- DisplayPort 1.2a support, including Adaptive-Sync and HBR2
- Maximum DisplayPort 1.2a resolution 4096x2160
- Maximum DisplayPort 1.1 resolution 2560x1600
API & OS Support
- DirectX 11.2 / 123
- OpenGL 4.43
- OpenCL 2.0
- AMD Mantle
- Shader Model: 5.0
- Microsoft Windows 10, Windows 8.1 and Windows 7 (32- or 64-bit)
- Linux (32- or 64-bit)
Cooling/Power/Form Factor
- <150W maximum power consumption
- Discreet active cooling solution
- Full height/full length single-slot form factor
- PCIe 3.0 compliant, x16 bus interface
System Requirements
- Available PCIe x16, 3.0 for optimal performance
- 8GB system memory
- Microsof Windows 10, Windows8.1, Windows 7 or Linux operating system (32- or 64-bit)
- Internet connection for driver installation
