ATEN VE801 HDMI HDBaseT-Lite Extender - HDBaseT Class B
Supports 4K @40m

Our Price:

$376.90

RRP:

~~$583.00~~

You Save:

$206.10

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Order In from SupplierShips from our warehouse in 1-3 business days

Part Number:

413503

(?) Brand:

ATEN

Manuf No:

VE801-AT-U
VE801ATU

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

VE801ATU, VE801-AT-U, ATVE801, 4719264642715

Overview

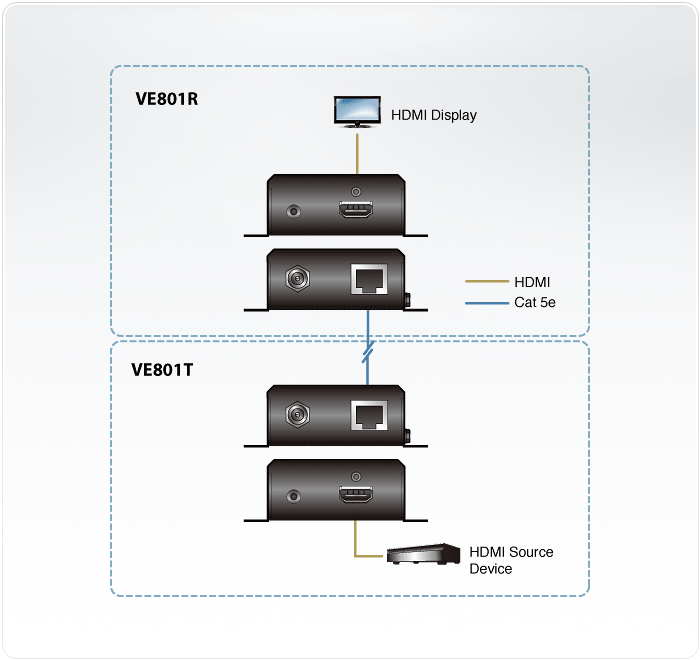

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances

HDBaseT HDMI ROHS Ultra HD (4k x 2k) Weee

Features

HDBaseT Connectivity â€“ extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
HDBaseT Anti-jamming â€“ resists signal interference during high-quality video transmission using HDBaseT technology
EDID Expert â€“ configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
Rack- Mountable

Specifications

Video Input	VE801R	VE801T
Interfaces	N/A	1 x HDMI Type A Female (Black)
Impedance	N/A	100
Max. Distance	N/A	1.8 m

Video Output
Interfaces	1 x HDMI Type A Female (Black)	N/A
Impedance	100	N/A

Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	340 MHz	340 MHz
Compliance	HDMI (3D, Deep Color, 4K)	HDMI (3D, Deep Color, 4K)
	HDCP Compatible	HDCP Compatible
	Consumer Electronics Control (CEC)	Consumer Electronics Control (CEC)
Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
	1080p@60m (Cat 5e/6) / 70m (Cat 6a)	1080p@60m (Cat 5e/6) / 70m (Cat 6a)
	*4K supported:	*4K supported:
	4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);	4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
	4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)	4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio
Input	N/A	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)	N/A

Power
Connectors	1 x DC Jack (Black) with locking	1 x DC Jack (Black) with locking
Consumption	DC 5V, 4.23W	DC 5V, 1.85W

Environmental
Operating Temperature	0-50C	0-50C
Storage Temperature	-20 - 60C	-20 - 60C
Humidity	40 - 85% RH, Non-Condensing	40 - 85% RH, Non-Condensing

Physical Properties
Housing	Metal	Metal
Weight	TBD	0.24 kg ( 0.53 lb )
Dimensions (L x W x H)	12.47 x 8.70 x 3.00 cm	12.47 x 8.70 x 3.00 cm
	(4.91 x 3.43 x 1.18 in.)	(4.91 x 3.43 x 1.18 in.)

Package Contents	1x VE801T/R HDMI HDBaseT-Lite Extender
	2x Power Adapters
	1x User Instructions
