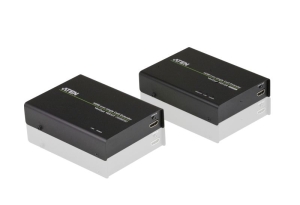

ATEN VE812 VanCryst HDMI HDBaseT Extender - HDBaseT Class A

Video Input

VE812R

VE812T

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100

Max. Distance

N/A

1.8 m

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100

N/A

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

Up to 340 MHz

Up to 340 MHz

Compliance

HDMI (3D, Deep Color, 4K)

HDMI (3D, Deep Color, 4K)

HDCP Compatible

HDCP Compatible

Consumer Electronics Control (CEC)

Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);

1080p@100m

1080p@100m

*4K supported:

*4K supported:

4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);

4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);

4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

Power

Connectors

1 x DC Jack

1 x DC Jack

Consumption

5.3 VDC, 4.5W

5.3 VDC, 1.9W

Environmental

Operating Temperature

0 - 50C

0 - 50C

Storage Temperature

-20 - 60C

-20 - 60C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.41 kg ( 0.9 lb )

0.40 kg ( 0.88 lb )

Dimensions (L x W x H)

14.17 x 10.30 x 3.00 cm

14.17 x 10.30 x 3.00 cm

(5.58 x 4.06 x 1.18 in.)

(5.58 x 4.06 x 1.18 in.)

Carton Lot

5 pcs

5 pcs

Package Contents

Package Option 1: VE812

1x VE812T HDMI Over Single Cat 5 Transmitter

1x VE812R HDMI Over Single Cat 5 Receiver

2x Power Adapters

1x Mounting Kit

1x User Instructions

Package Option 2: VE812T

1x VE812T HDMI Over Single Cat 5 Transmitter

1x Power Adapter

1x Mounting Kit

1x User Instructions

Package Option 3: VE812R

1x VE812R HDMI Over Single Cat 5 Receiver

1x Power Adapter

1x Mounting Kit

1x User Instructions
