All stock codes associated to this product
VM5404HATU, VM5404H-AT-U, 4719264642197
Overview

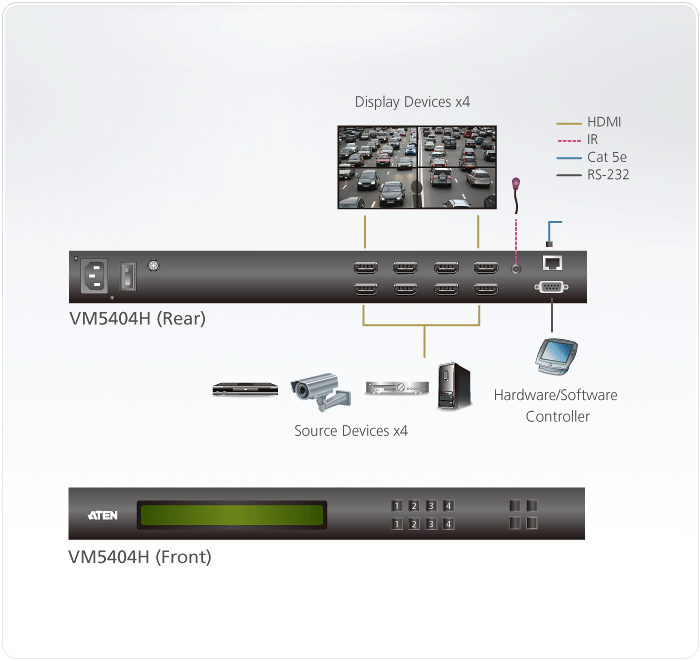

The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers
an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI
displays, with a quick view of all port connections via the front panel LCD
The VM5404H includes seamless switching that employs a FPGA matrix
architecture that ensures continuous video streams, real-time control and stable
signal transmissions. With a built in high-performance scaler, the VM5404H
easily converts various input resolutions into various output display
resolutions, giving viewers the best video and picture quality across all
displays. The switch integrates video wall functionality with an easy to use web
GUI that lets you create 8 connection profiles that can be customized into
different video wall layouts.
The VM5404H is an ideal solution for applications that require multiple HDMI
displays with multiple HDMI sources to be conveniently setup in multiple
locations, such as for stage presentations, competitions, control centers, and
installations that require real-time reports.
Features
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Long Distance Transmission – supports up to 15 m (24 AWG)
- HDMI (3D, Deep color); HDCP 1.4 compatible
- Seamless Switch™ – ATEN FPGA design unifies video formats to provide
continuous video streams, real-time switching and stable signal transmissions*
- Video Wall –allows you to create custom video wall layouts via intuitive
web GUI
- EDID Expert™ – selects optimum EDID settings for smooth power-up and
highest quality display
- Multiple Control Methods system management via front-panel pushbuttons,
IR, RS-232 and Ethernet (Telnet / Web GUI) connections
- Features a built in high-performance scaler for the best image quality
- Built-in bi-directional RS-232 serial port for high-end system control
- Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p
(1920 x 1080)
- ESD protection for HDMI
- Supports Dolby True HD and DTS HD Master audio
- Consumer Electronics Control (CEC) support
- Supports IR signals for remote control
- Firmware Upgradeable
- Rack Mountable
Specifications
|
Video
Input |
|
|
Interfaces |
4 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
1.8
m |
|
|
|
Video
Output |
|
|
Interfaces |
4 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
15
m |
|
|
|
Video |
|
|
Max. Data
Rate |
6.75 Gbps (2.25 Gbps
Per Lane) |
|
Max. Pixel
Clock |
225
MHz |
|
Compliance |
HDMI (3D, Deep
Color) |
|
HDCP 1.4
Compatible |
|
Consumer Electronics
Control (CEC) |
|
Max.
Resolution |
Up to
1080p |
|
Max.
Distance |
Up to 15
m |
|
|
|
Control |
|
|
RS-232 |
Connector: 1 x DB-9
Female (Black) |
|
Baud rate and
protocol: |
|
Baud Rate: 19200, Data
Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
|
IR |
1 x Mini Stereo Jack
Female (Black) |
|
|
|
EDID
Settings |
EDID Mode: Default /
Port1 / Remix / Customized (EDID Wizard support) |
|
|
|
Power |
|
|
Connectors |
1 x 3-Prong AC
Socket |
|
Maximum Input Power
Rating |
100-240 VAC; 50-60 Hz;
1.0A |
|
Consumption |
120 VAC, 36.6W; 230
VAC, 37.5W |
|
|
|
Environmental |
|
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
|
|
Physical
Properties |
|
|
Housing |
Metal |
|
Weight |
4.10 kg ( 9.03 lb
) |
|
Dimensions (L x W x
H) |
43.24 x 26.23 x 4.40
cm |
|
(17.02 x 10.33 x 1.73
in.) |
|
|
|
Carton
Lot |
1
pc |
|
|
|
Package
Contents |
1x VM5404H 4 x 4 HDMI
Matrix Switch with Scaler |
|
1x Power
Cord |
|
1x IR Remote
Control |
|
1x IR
Receiver |
|
1x Mounting
Kit |
|
1x User
Instructions |
