The VM0404H is a 4x4 HDMI Matrix Switch that provides a convenient way to
route high definition video and audio from any of four HDMI sources to any of
four HDMI displays. The VM0404H allows you to connect four HDMI devices (such as
an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home
theater PC, stand-alone streaming media player, or gaming console) to four HDMI
monitors, displays, projectors or TVs at the same time.
The remote control and convenient front panel pushbuttons allow you to
quickly and easily cycle through HDMI sources and displays, while the front
panel LEDs indicate the source device for each display at a glance.
Package Contents
- 1x VM0404H 4x4 HDMI Matrix Switch
- 1x IR Remote Control Unit
- 1x Powe Adapter
- 1x Rack Mount Kit
- 1x User Instructions
Features
- Connects any of four HDMI sources to any of four HDMI displays
- Toggle between HDMI sources and displays using remote control or front
panel pushbuttons
- Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p
(1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to
communicate and respond to one remote control
- HDMI (3D, Deep Color)
- Features EDID expert technology to set up different video configurations
via different EDID modes
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Built-in bi-directional RS-232 serial remote port for high-end system
control *
- Power On Detection – if one HDMI source is powered off, the VM0404H will
automatically switch to the next powered-on source
- DDC compatible
- Signaling rates up to 2.25 Gbits in support of 1080p display
- All-metal casing
- Easy and affordable way to add four HDMI inputs to your multiscreen home
theater system
- Rack Mountable
* Note: The VM0404H AP and GUI operation instructions can be downloaded from
the ATEN website (www.aten.com)

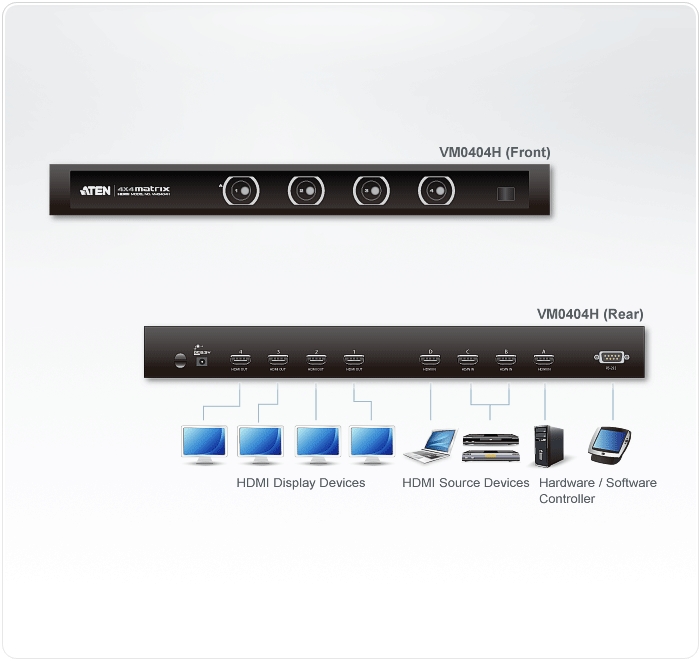

Diagram
Specifications
| Video
Input |
| Interfaces |
4 x HDMI Type A Female
(Black) |
| Impedance |
100
|
| Max.
Distance |
1.8
m |
|
| Video
Output |
| Interfaces |
4 x HDMI Type A Female
(Black) |
| Impedance |
100
|
| Max.
Distance |
15
m |
|
| Video |
| Max. Data
Rate |
6.75 Gbps (2.25 Gbps
Per Lane) |
| Max. Pixel
Clock |
225
MHz |
| Compliance |
HDMI (3D, Deep
Color) |
| HDCP 1.4
Compatible |
| Consumer Electronics
Control (CEC) |
| Max.
Resolution |
Up to
1080p |
| Max.
Distance |
Up to 15
m |
|
| Control |
| RS-232 |
Connector: 1 x DB-9
Female (Black) |
| Baud rate and
protocol: |
| Baud Rate: 19200, Data
Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
|
| EDID
Settings |
EDID Mode: Default /
Port1 / Remix |
|
| Power |
| Connectors |
1 x DC Jack
(Black) |
| Consumption |
5.3 VDC,
9W |
|
| Environmental |
| Operating
Temperature |
0-50C |
| Storage
Temperature |
-20 -
60C |
| Humidity |
0 - 80% RH,
Non-Condensing |
|
| Physical
Properties |
| Housing |
Metal |
| Weight |
1.86 kg ( 4.1 lb
) |
| Dimensions (L x W x
H) |
43.70 x 15.96 x 4.40
cm |
| (17.2 x 6.28 x 1.73
in.) |
|
| Carton
Lot |
3
pcs |
