All stock codes associated to this product
LH32MLEPLSC/XY, 8806088351476

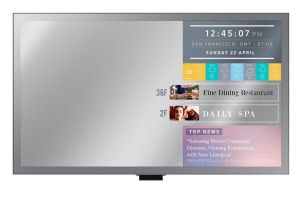

Samsung ML32E Full HD Mirror LED Display
Monitor
Overview
A harmonized hybrid display with integrated digital signage and mirror
functionalities.
Key Highlights
Mirror
Display
24/7
operation
Built-in
MagicInfo S3
Direct
LED
Quad
Core CPU
Wi-fi
module embedded
-
Clear visibility through a polarized film that ensures high
transparency (90%) and reflectivity (55%)
-
A proximity sensor that automatically transitions between a mirror and
signage as shoppers move
-
Easy content control with embedded MagicInfo Player S3, built-in Wi-Fi
and mobile-device compatibility
Features
A Captivating Mirror/Signage Hybrid Display
Samsungs MLE mirror displays create a more engaging and informative customer
experience by combining the power and reach of digital signage with the visual
clarity of a standard mirror. Featuring high (55 percent) reflectance, the MLE
displays clearly portray both real-time mirror imagery and complementary content
with minimal visual impairment. Through improved visual accuracy, the MLE
display can serve as a valuable sales tool that persuades and informs
customers.

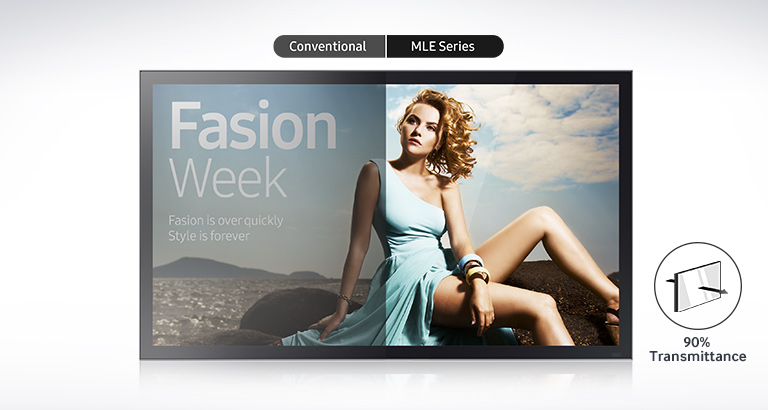

Clearer, More Visible Presentation
The unique composition of Samsungs MLE mirror displays offers consumers a
more realistic and complete product view. Featuring a polarized film overlay,
the MLE mirror displays deliver superb transmittance (90 percent) and advanced
reflectance (55 percent) that reduce visual distraction. As a result, customers
can enjoy clearer and more vivid content than standard half-mirror format
alternatives offer while simultaneously receiving higher-performing mirror
visibility.

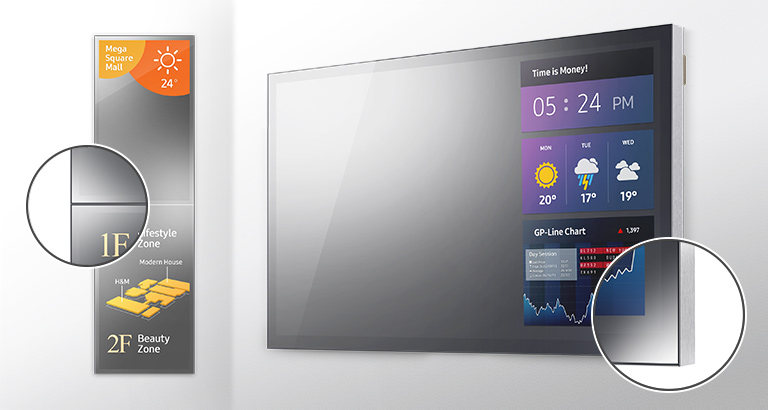

Distraction-Free Design
Samsungs MLE displays elevate the traditional mirror through a bezel-free
design that further keeps viewers focused on reflected and shared content rather
than on the signage itself. Additionally, this bezel-free composition grants
retail owners added flexibility to take their mirror display arrangements even
further. Several MLE displays can be combined into unique, video-wall style
arrangements without gaps or inconsistencies between screens, generating endless
visual possibilities.

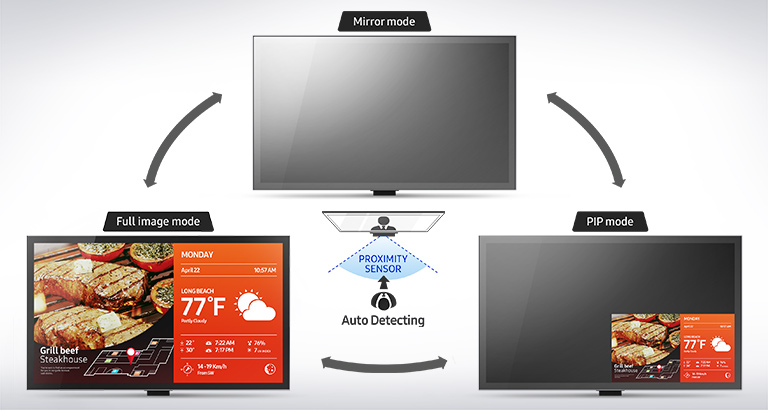

Seamless Mirror and Content Transition
As shoppers approach and depart, the MLE displays embedded proximity sensor
instinctively transitions between traditional promotional signage and a clear
mirror. Retailers can set the sensors to activate once motion is detected at one
of three distances (0.7m, 1.0m and 1.5m), while also pre-setting the display to
shrink (small-image mode) or expand (full-image mode) featured imagery. Users
also have the flexibility to set the shape and position of the expanded or
contracted content to match specific motions.
Easy Content Control
Enjoy the versatility of expanded connectivity to mobile devices, from easy
media sharing and screen control to simple content mirroring from a tablet or
mobile phone to your display. With Samsung MagicInfo content management
software, selecting and scheduling software is simple to control with either an
RS232 or LAN/WiFi connection.
Powerful
System-on-Chip Performance With a Quad Core CPU |
Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of
storage, Samsung's SMART Signage Platform is an open and integrated player side
media platform that provides a powerful, streamlined solution to reduce TCO for
digital signage deployments, through savings in hardware, installation and
operating costs

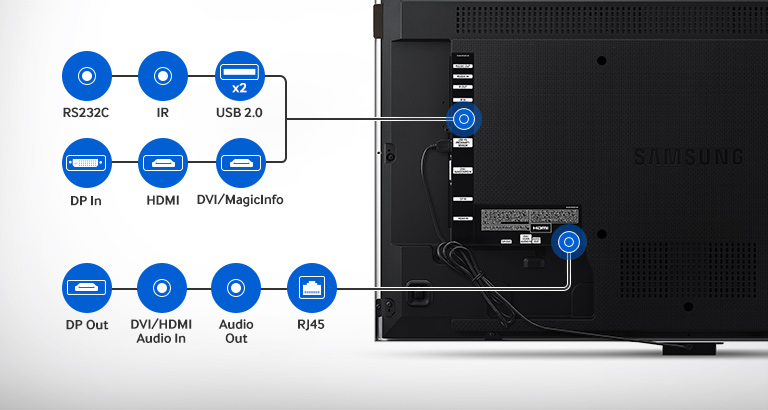

Enhanced Connectivity Options
2 USB, DVI, DP, HDMI, Component and Composite inputs provide enhanced
connectivity to meet your business' digital signage needs.
Specifications
Panel |
|
|
|
|
|
|
|
Diagonal
Size |
32 |
Type |
60Hz D-LED
BLU |
Resolution |
1920*1080 (Full
HD) |
Pixel
Pitch(mm) |
0.12125(H) x
0.36375(V) |
Active Display
Area(mm) |
698.4(H) x
392.85(V) |
Brightness(Typ.) |
300
nit |
Contrast
Ratio |
3500:01:00 |
Viewing
Angle(H/V) |
178:178 |
Response
Time(G-to-G) |
8ms |
Display
Colors |
10bit Dithering -
1.07Billion |
Color
Gamut |
0.72 |
Haze |
N/A |
|
|
|
|
Display |
|
|
|
|
|
|
|
Dynamic
C/R |
50,000:1 |
H-Scanning
Frequency |
30 ~
81kHZ |
V-Scanning
Frequency |
48 ~
75HZ |
Maximum Pixel
Frequency |
148.5MHz |
|
|
|
|
Display |
|
|
|
|
|
|
|
Speaker
Type |
Built in Speaker(10W x
1) |
|
|
|
|
Connectivity |
|
|
|
|
|
|
|
Input |
RGB |
DP1 |
Video |
HDMI1 |
Audio |
Stereo Mini Jack, DVI
Audio(Common) |
Usb |
USB 2.0 x
2 |
Output |
RGB |
DP1.2(Loop-out) |
Video |
N/A |
Audio |
Stereo mini
Jack |
Power
Out |
N/A |
External
Control |
RS232C(in/out) thru
stereo jack, RJ45 |
External
Sensor |
IR, Proximity
Sensor |
Tuner |
No |
|
|
|
|
Power |
|
|
|
|
|
|
|
Type |
Internal |
Power
Supply |
AC 100 - 240 V~ (+/- 10
%), 50/60 Hz |
Power
Consumption |
Max[W/h] |
TBD |
Typical[W/h] |
TBD |
BTU(Max) |
TBD |
Sleep
mode |
TBD |
Off
mode |
TBD |
|
|
|
|
Mechanical
Specification |
|
|
|
|
|
|
Dimension
(mm) |
Set |
740.2 X 433.5 X
57.4 |
Package |
817 X 503 X
146 |
Weight
(kg) |
Set |
7.9 |
Package |
9.8 |
VESA Mount
(mm) |
200*200mm |
Protection
Glass |
Yes |
Stand
Type |
Foot Stand
(Optional) |
Media Player Option
Type |
Embbeded, SBB(Not
Attachable) |
Bezel Width
(mm) |
1mm(Black Printing Line
20.4mm) |
|
|
|
|
Operation |
|
|
|
|
|
|
|
Recommended Usage
Hours |
'24/7 |
Operating
Temperature |
0.0
~ 40.0 |
Humidity |
10.0
% ~ 80.0 % |
|
|
|
|
Feature |
|
|
|
|
|
|
|
Key
Features |
Slim & Light LFD
with Built-in MagicInfo Player S3, SSSP 3.0 |
Special
Features |
HW : Super Clear
Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock
Battery(168hrs Clock Keeping), Built in Speaker(10W x 1), WiFi Module
Embedded SW : Magic Clone(to USB), Auto Source Switching & Recovery,
RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP
1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3,
Firmware Update by Network, LFD New Home Screen, PC-less VideoWall,
Predefined Template for Vertical Usage, Multi Channel, Mobile Control,
Event Schedule, Backup Player, PC-less Touch,
MagicPresenter |
Internal
Player |
Processor |
Cortex-A9 1GHz Quad
Core CPU |
On-Chip Cache
Memory |
L1 (I/D) : 32KB / 32KB
L2 (Unified) : 1MB |
Clock
Speed |
1GHz CPU
Quad |
Main Memory
Interface |
1.5GB Dual 48bit
DDR3-933 (1866MHz) |
Graphics |
2D & 3D Graphics
Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES |
Storage
(FDM) |
8GB (2.65GB Occupied by
O/S, 5.35GB Available, ) |
Multimedia |
Video Decoder -
MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3
(DD), MPEG, DTS and etc. |
IO
Ports |
USB
2.0 |
Operating
System |
Samsung Proprietary
OS(VDLinux) |
|
|
|
|
Certification |
|
|
|
|
|
|
|
Safety |
CB (Europe) :
IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) :
PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) :
IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) :
IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless :
NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1
INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1
RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) :
cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE |
EMC |
FCC (USA) Part 15,
Subpart B Class A CE (Europe) : EN55022:2006+A1:2007
EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A
KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan)
: CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) /
CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China)
:GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST
22505-97 EN55022:2006+A1:2007
EN55024:1998+A1:2001+A2:2003 |
Environment |
N/A |
|
|
|
|
Accessory |
|
|
|
|
|
|
|
Included |
Quick Setup Guide,
Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries,
RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8,
4EA) |
Optional |
Stand |
STN-L3240E |
Mount |
WMN4070SD,WMN450MD |
Specialty |
CML400D (Ceiling
Mount) |
|
|
|
|
Media
Player |
|
|
|
|
|
|
|
Media
Player |
SBB
(Optional) |
