All stock codes associated to this product
AC050CO1OTNC1, AC-050-CO1OTN-C1
Overview

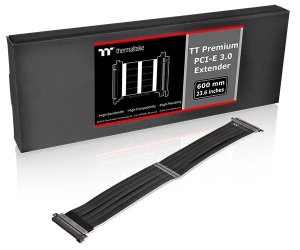

Thermaltake has launches the latest Thermaltake TT Premium PCI-E 3.0 Extender
series with ultra-excellent quality to meet the most demanding system. Features
like, extreme high-speed cable with highly-routable and foldable design, EMI
shielding with conducting polymer, special cable protector are crafted for
exceeding your expectation. Available in 300mm, 600mm and 1000mm length, the TT
Premium PCI-E 3.0 Extender series supports a wide range of GPU solutions and
matches the cable included in any chassis.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed "TT Premium" with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltake’s desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Ultimate High Speed Cable
The TT Premium PCI-E 3.0 Extender Series features extremely fast graphic data
transmission that means the extender is capable of expanding bandwidth up to 8
Gbps and beyond, offering an ultimate experience for graphic design, gaming or
watching video.
Crafted for Space-Saving
Made with ultra-realizable quality, the ribbonized format flat cable design
permits for multiple folds and an extreme-tight bend radius while delivering an
incredible performance. In other words, the TT Premium PCI-E 3.0 Extender Series
save the use of the space without compromising on the performance, and is an
ideal choice for those who want to build a tidy-looking system.
EMI Shielding with Conducting Polymer
The extender utilizes the latest materials for EMI shielding with five sole
flat cables design. This technique allows each cable to be fully covered by
electromagnetic interference shielding with conducting polymer to guard against
incoming or outgoing emissions of electromagnetic frequencies, minimize
disturbance and degradation on performance, and reduce the weight of the
extender.
Unique Cable Protector
The exclusive cable protector is used to enhance the durability of the
extender as well as prevent cable damage. Especially, when connecting to the
motherboard, the extender is folded or twisted in order to maximize the internal
space and optimize the airflow. In short, this design aims to avoid the signal
loss and help to achieve excellent signal integrity.
Easy Installation
The TT Premium PCI-E 3.0 Extender Series provides the best connectivity and
lifespan. Support both AMD and Intel motherboard.
Performance Quality Control with High Frequency Test and Folding
Performance Test
Thermaltake TT Premium is a guarantee of quality and performance. The test
results indicate that the TT Premium PCI-E 3.0 Extender Series has a capability
to offer outstanding signal integrity compared to the other extenders on the
market.
Figure 1. High Frequency Test
*Measurement Parameter: Differential Near-end crosstalk
Figure 2. Folding Performance Test
*Measurement Parameter: Differential Return Loss
Reliable Performance with Benchmark Testing
According to the benchmark results displayed as bellow, there is no
signifitcant difference in the performance between using the TT Premium PCI-E
3.0 Extender Series and appliying in-slot configuration. The y- axis represents
the benchmark scores, and test sofware is showed as the x-axis.
Comparision Chart 1.
*Test Enviromment:
CPU - IntelR Core i5-6500 (Skylake)
M/B - Gigabyte
Z170X-Gaming GT
Memory - Kingston DDR4-3000 8G
HDD - Apacer AS330
240G
VGA - NVIDIA Geforce GTX1080
PSU - Toughpower DPS G 1250W
System:
Windows 10 Pro-64-bit
Comparision Chart 2.
Test Enviromment:
CPU - IntelR Core i5-6500 (Skylake)
M/B - Gigabyte
Z170X-Gaming GT
Memory - Kingston DDR4-3000 8G
HDD - Apacer AS330
240G
VGA - AMD Radeon RX 480
PSU - Toughpower DPS G 1250W
System:
Windows 10 Pro-64-bit
Specifications
|
P/N |
AC-050-CO1OTN-C1 |
|
Cable Length |
600mm (23.6 inch) |
|
Net Weight |
0.13 kg / 0.3 lb |
|
Color |
Black |
|
Material |
Thermoplastic, FR4, Polyethylene(PE), Copper Alloy |
|
Connector |
PCI Express X16 Male to PCI Express X16 Female |
|
Rated Current |
1A |
|
Operating Temperature |
-20 to +80 deg.
C |
