All stock codes associated to this product
PS-SPR-0850FPCBAU-R, PSSPR0850FPCBAUR

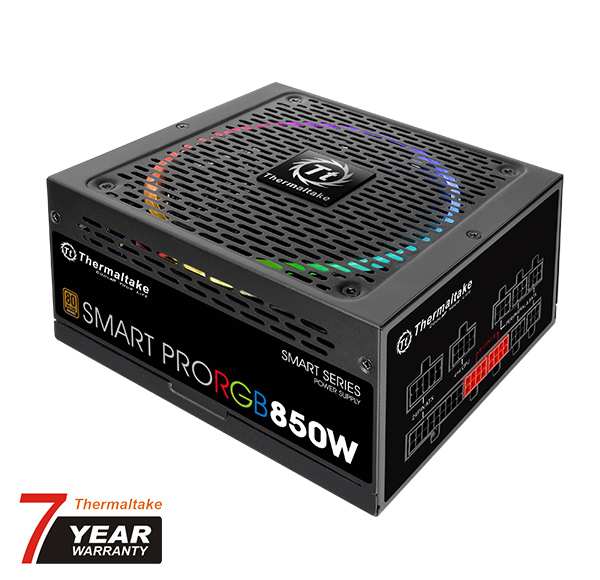

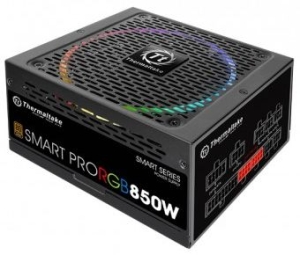

Overview
Thermaltake, as the pioneer who incorporates RGB lights into PSU, has
launched the Thermaltake Smart Pro RGB Bronze Series, coming with a
pre-installed, patented 256 colors Riing 14 RGB fan with 5 lighting modes to
choose from and built-in memory.
Featuring capacities ranging from 650W to 850W and 80 PLUS Bronze
certification, Smart Pro RGB Bronze Series adopts the high quality components
and fully modular design that always accommodate any mainstream build under any
circumstance.
One Button to Your Desired Color
By pressing the RGB lighting button, the fan color can be switched among a
256 Color RGB Cycle with variants including Solid Red, Green, Blue, White, and a
LED Off mode. The fan is also constructed with a built-in memory function,
saving the color applied and insuring the same color selection every time you
boot your PC.

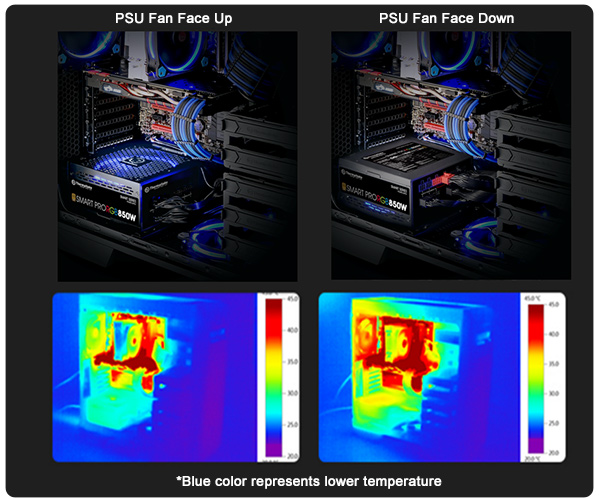

Power Supply Fan Face-Up Placement for Better Cooling
With the face-up placement of the fan, users can freely gaze upon their
patented circular 256 multi-colored RGB fan and at the same time obtaining
additional performance by using the fan as a additional exhaust mechanism,
repelling unwanted heat from your chassis. As the thermal image testing shown,
the temperature of PSU and computer system will decrease around 3C (5.4 F) by
placing PSU face-up.

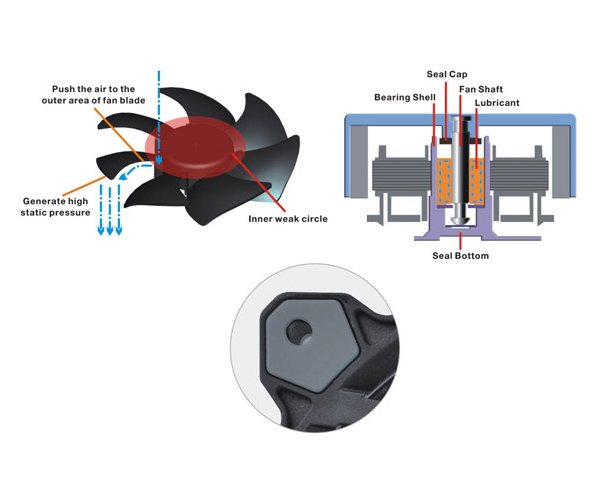

Riing 14 RGB Fan with Concentrated Compression Fan Blade
The fan blade is designed for high static pressure requirements of demanding
applications; the concentrated compression blade is engineered to focus the
weaker, inner circle of air outward, allowing the outer section to pressurize
the air. The fan blades are optimized to enhance static pressure for an
impressive cooling performance. Hydraulic bearings for silent operation
guarantee ultra-low noise, and the anti-vibration mounting system strengthens
the products stability during operation. Moreover, In-mold injection
anti-vibration rubber pads provide hassle-free usage for 80% protection
coverage, including all four corners.

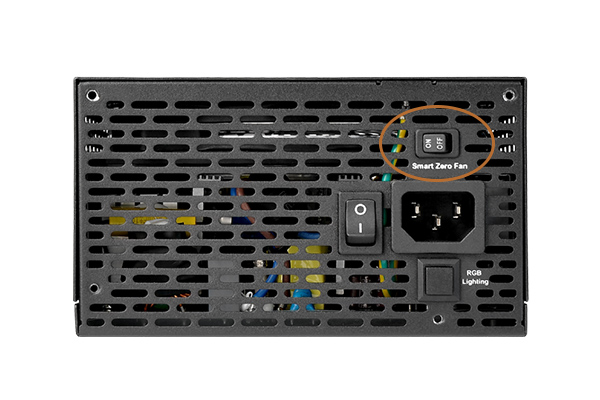

Ultra Quiet Smart Zero Fan
Smart Zero Fan ensures zero noise when the fan operates below approximately
10% working load to minimize audible noise. The fan will operate when the power
supply working load over 10%. A switch is provided for those who prefer the fan
to spin constantly.

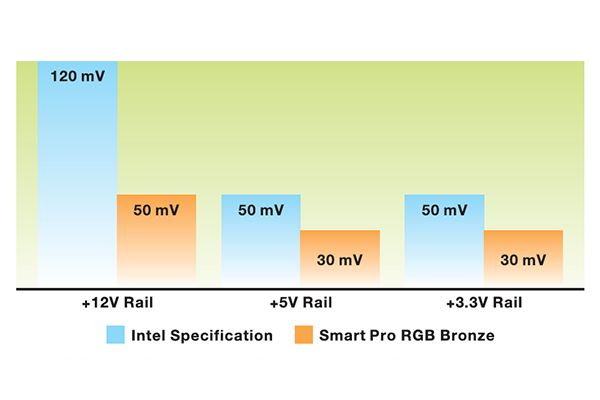

< 50 mV Low Ripple Noise
All ripples are lower than 50mV for high stability on +12V, +5V, or +3.3V
from 0% to 100% load to ensure a high quality power supply. Low ripple noise
will keep your performance-critical components, such as high-end graphics cards,
to operate reliably for longer.

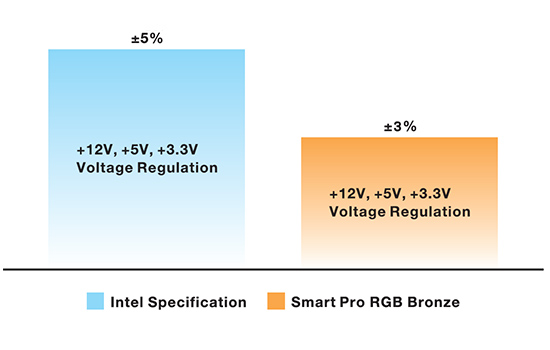

Strict Voltage Regulation < 3%
The voltage regulation of the PSU is set to no more than 3% for major rails
to meet the greater performance. The strict voltage regulation of the Smart Pro
RGB Bronze Series is better than Intels standard 5% for major rails and 10% for
-12V.

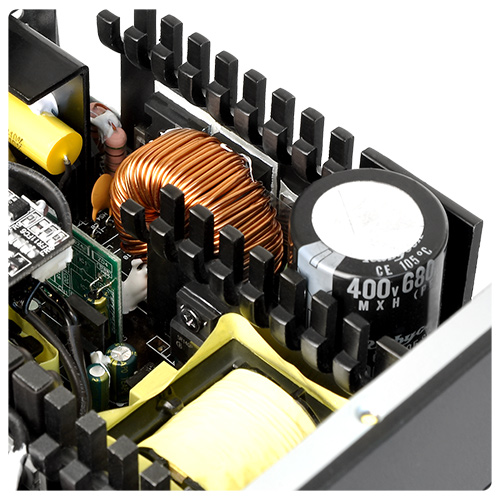

High Quality Japanese 105C/221F Main Capacitor
High quality 105 C (221 F) Japanese brand main capacitor which greatly
improve the durability and offer the highest stability and reliability.

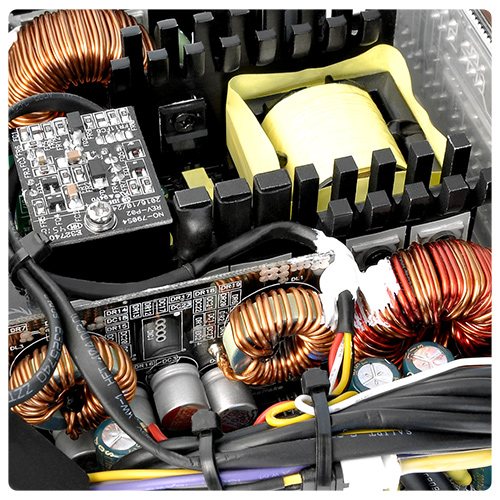

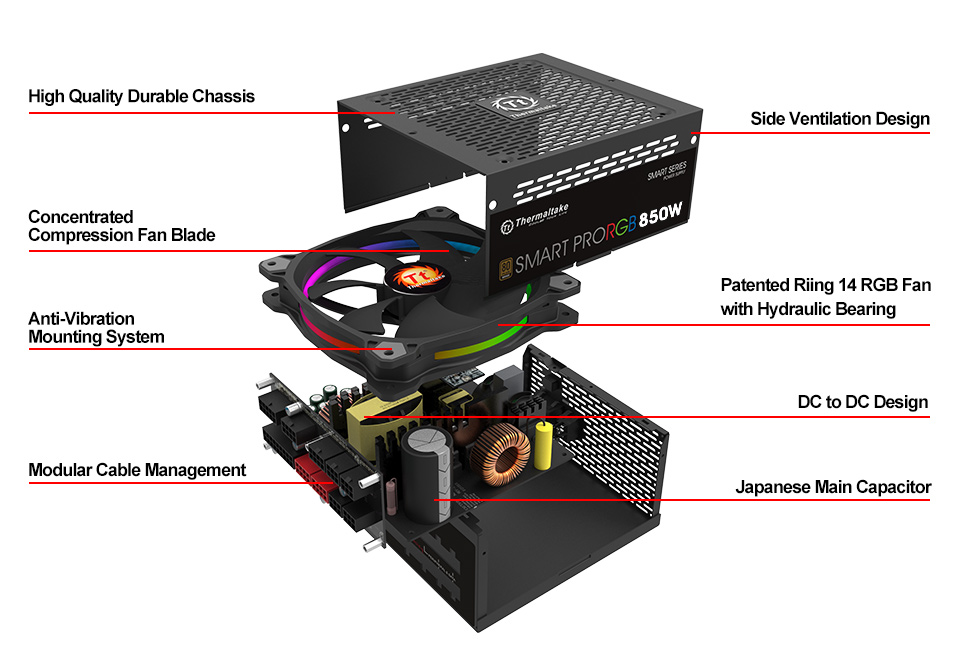

High Amperage Single +12V Rail & DC to DC Design
Smart Pro RGB 850W Bronze is equipped with a powerful single +12V rail,
eliminating the limitations caused by voltage distributions, delivering the
power your CPU and VGA demand in any situations. Besides, with DC to DC design,
the unit optimizes maximum energy harvest for computer systems, providing the
best compatibility, conversion efficiency and stable voltage output.
| AC INPUT |
Input Voltage: 100V-240V~
Input Current:
15A
Frequency: 50Hz-60Hz |
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| Max Output Current |
22A |
22A |
70.5A |
0.5A |
3.0A |
| Max Output Power |
140W |
846W |
6.0W |
15W |
| Total Power |
850W |

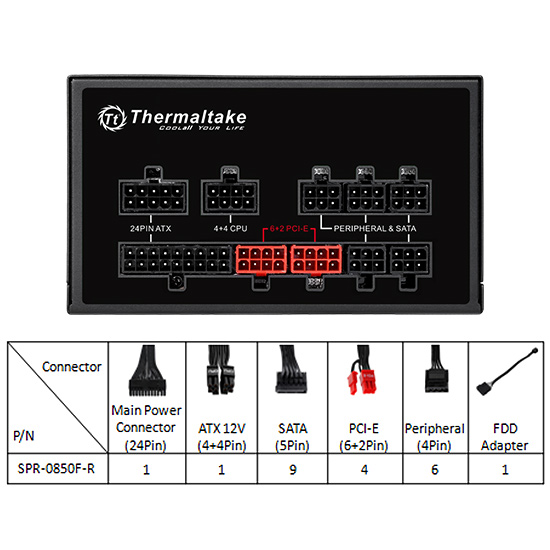

Fully Modular Low-Profile Flat Cable
Smart Pro RGB 850W Bronze offers cable selection for users while powering the
system at an advantageous voltage. Low-profile flat black cables can make cable
management easier, reduce clutter and increase airflow inside the chassis.
80 PLUS Bronze Certified and Skylake Ready
Deliver up to 85% efficiency under real world load conditions to promise
lowest power losses. Additionally, Smart Pro RGB 850W Bronze has been optimized
to work with Intels latest, Sixth-generation Skylake processors to achieve
maximum energy saving.

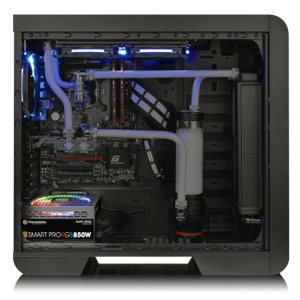

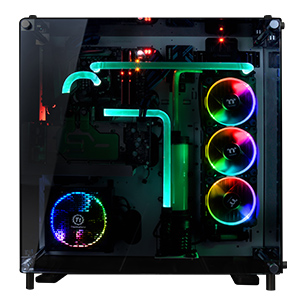

RGB Lighting Provides Best Aesthetics for All Chassis
Smart Pro RGB Bronze Series is the best idea for users to go with when they
are looking for an RGB PSU which permits remarkable functionality and aesthetics
in all cases, especially Open Frame or Tower cases.
Specifications
|
P/N |
PS-SPR-0850FPCBxx-R |
|
Short
P/N |
SPR-0850F-R |
|
Model |
SPR-850AH3FSB-R |
|
Type |
ATX 12V v2.4 and EPS
v2.92 |
|
Max. Output
Capacity |
850W |
|
Peak Output
Capacity |
1020W |
|
Color |
Black |
|
Dimension
W
/ H / D |
150mm(W) x 86mm(H) x
170mm(D) |
|
PFC Power
Factor Correction |
Active
PFC |
|
Power Good
Signal |
100-500
msec |
|
Hold Up
Time |
> 16msec at 75%
load |
|
Input
current |
15A |
|
Input Frequency
Range |
50Hz -
60Hz |
|
Input
Voltage |
100V
240V~ |
|
Operating
Temperature |
0C to +
40C |
|
Operating
Humidity |
20% to
90%,non-condensing |
|
Storage
Temperature |
-40C to +
70C |
|
Storage
Humidity |
20% to 95%,
non-condensing |
|
Cooling
System |
14cm hydraulic bearing
fan |
|
Efficiency |
Meet 80 PLUS Bronze at
115Vac input. |
|
MTBF |
100,000 hrs
minimum |
|
Safety
Approval |
CE/cTUVus/TV
SD/FCC/CCC/BSMI/EAC |
|
Pin
Connector |
PCI-E 6+2pin X
4 |
