This motherboard has a pair of onboard Type-A and Type-C USB 3.1 ports
built on the rear i/o for supporting next generation USB 3.1 devices and to
deliver up to 10 Gbps data transfer rates.
Dual M.2 For
SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to
32Gb/s, and is compatible with ASRocks U.2 Kit for installing some of the worlds
fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen2 x4 20Gb/s
transfer speed.
Purity
Sound 4
It's time to enjoy the most purified audio performance with ultra high
definition. Purity Sound4 is a combination of several hardware, software audio
solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec,
individual PCB layers for R/L audio channel, 120dB SNR DAC and other
technologies to deliver the crispest sound effects.
PCI-E
Steel SlotsThe advanced PCI-E Steel Slots packed with solid
cover that prevent any signal interference with graphics cards. It also ensures
the heavy graphics cards to be well-installed in the PCI-E slots
safely.
XXL
Aluminium Alloy HeatsinkExtra large aluminum alloy heat sinks
that effectively take away heat from the MOSFET and chipset so that your whole
system may perform more stable.
Premium
60A Power ChokeCompared to traditional chokes, ASRock’s premium
60A power chokes effectively make the saturation current up to three times
better, thus providing enhanced and improved Vcore voltage to the
motherboard.
Premium
Memory Alloy ChokeSpecifically designed for memory power
delivery, these new alloy chokes feature a highly magnetic and heat resistant
design, thus delivering more stable and reliable power to the motherboard and
memory modules.
Dual-Stack
MOSFET (DSM)Dual-Stack MOSFET (DSM) is another innovative
MOSFETs design by ASRock. The silicon die area is increased by stacking two dies
into one MOSFET. The larger the die area, the lower Rds(on). Compared to
traditional discrete MOSFET, DSM with larger die area provides extreme lower
Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.
Nichicon
12K Black CapsA combination of 820uF and 100uF capacitors.
Together these capacitors provide clearer, efficient and more responsive CPU
Vcore power, and overclockers may achieve higher scores.
I/O Armor
A new designed protective cover for all of the crucial parts near the
motherboard's rear I/O, so that they won't easily be damaged by static
electricity.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the
prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the
PCB layers to protect the motherboard against electrical shorts caused by
humidity.
Intel LAN
Intel LAN provides the best throughput performance, lower CPU
utilization, enhanced stability and is able to deliver ultimate network
experience to users!
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the
NVIDIA GeForce GTX 1080 and 1070 graphics cards that doubles the
available transfer bandwidth, thus delivering rock stable gameplay and
experiencing surround gaming in the best way.

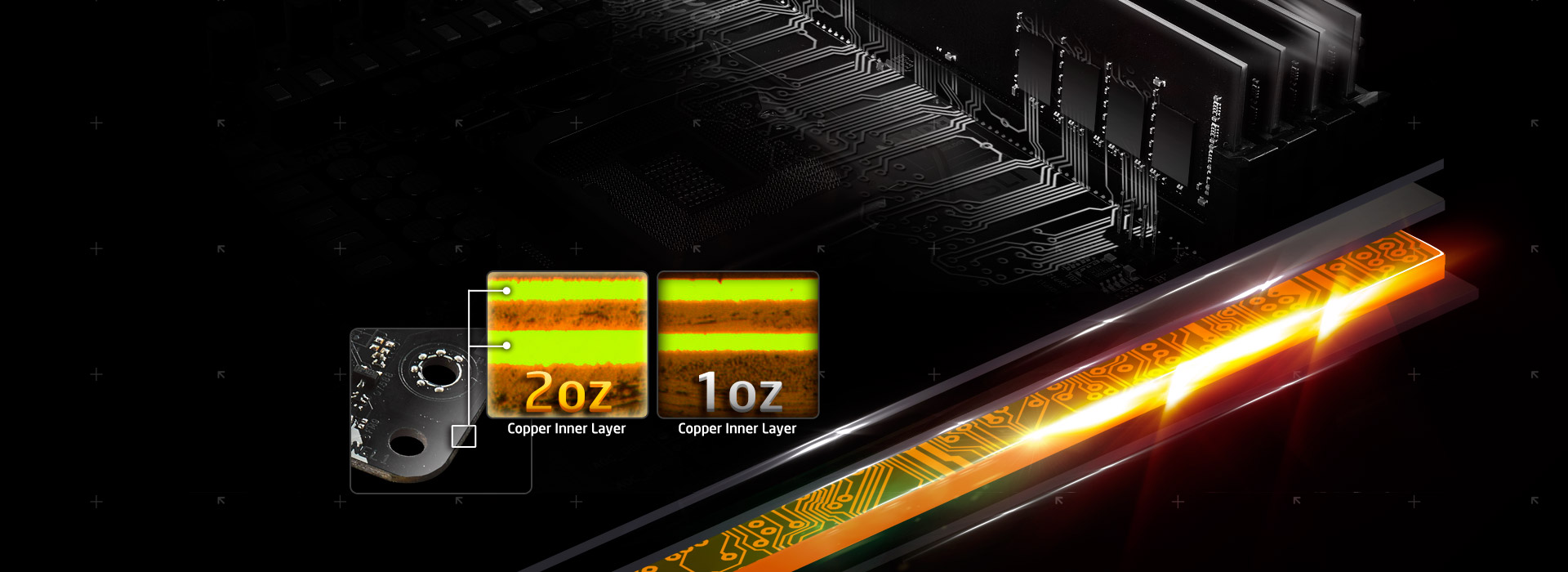

2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected
copper materials for PCB layers, delivering lower temperature and higher energy
efficiency for overclocking.
Water Pump
Header
This is not only a standard CPU fan header, but also supports water pumps!
This header provides a maximum of 1.5A power for supporting the most popular
water pumps. User also can adjust the voltage of water pump to get higher
cooling performance with lower noise.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface,
more new features and improved utilities.
Specifications
-
Unique Feature
ASRock USB 3.1
- ASRock USB 3.1 Type-A Port (10 Gb/s)
-
ASRock USB 3.1 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL
Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy
Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack
MOSFET (DSM)
- Nichicon 12K Black Caps (100% Japan made high quality
conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High
Density Glass Fabric PCB
- 2oz Copper PCB
Intel 802.11ac
WiFi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4
& SATA3)
ASRock Full Spike Protection (for all USB, Audio,
LAN Ports)
ASRock Live Update & APP Shop
-
CPU
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)
- IR
Digital PWM
- 16 Power Phase design
- Supports 300W EX OC
- Supports
ASRock Hyper BCLK Engine II
-
Chipset
- AMD Promontory X370
-
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
-
Supports DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC and non-ECC, un-buffered
memory*
- Max. capacity of system memory: 64GB**
- 15 Gold Contact in
DIMM Slots
*Please refer to Memory Support List on ASRock's website for more
information.
Please refer to below table for DDR4 UDIMM maximum frequency
support.
Ryzen Series CPUs:
| UDIMM Memory Slot |
Frequency(MHZ) |
| A1 |
A2 |
B1 |
B2 |
| - |
SR |
- |
- |
2667 |
| - |
DR |
- |
- |
2667 |
| - |
SR |
- |
SR |
2667 |
| - |
DR |
- |
DR |
2400-2667 |
| SR |
SR |
SR |
SR |
2133-2400 |
| SR/DR |
DR |
SR/DR |
DR |
1866-2133 |
SR: Single rank DIMM, 1Rx4 or 1Rx8
on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module
label
**Due to the operating system limitation, the actual memory size
may be less than
4GB for the reservation for system usage under
Windows
32-bit OS.
For Windows
64-bit OS with 64-bit
CPU, there is no such limitation.
-
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and
Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
-
SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP,
PROM 2.5V,
Voltage Multi-adjustment
-
Graphics
- n/a
-
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio
Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
-
Supports Purity Sound 4
- Nichicon Fine Gold Series Audio Caps
- 120dB
SNR DAC with Differential Amplifier
- TI NE5532 Premium Headset
Amplifier for Front Panel Audio Connector
(Supports up to 600 Ohm
headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate
shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers
for R/L Audio Channel
- Gold Audio Jacks
- 15 Gold Audio Connector
-
Supports DTS Connect
-
LAN
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel I211AT
-
Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports
Energy Efficient Ethernet 802.3az
- Supports PXE
-
Wireless LAN
- Intel 802.11ac WiFi Module (Free Bundle)
- Supports IEEE
802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed
wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High
speed class II
-
Slots
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8
(PCIE2) / x8 (PCIE3))*
- 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4
mode)**
- 2 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX
and CrossFireX
- Supports NVIDIA
Quad SLI and SLI
- 1 x
Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear
I/O)
- 15 Gold Contact in VGA PCIe Slot (PCIE2)
*Supports NVMe SSD as boot disks
**If PCIE5 slot is occupied, M2_2
will be disabled
-
Storage
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID
10),
NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia
ASM1061, support NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1),
supports M Key type 2242/2260/2280
M.2 SATA3 6.0 Gb/s module and M.2 PCI
Express module up to Gen3 x4 (32 Gb/s)
- 1 x M.2 Socket (M2_2), supports M
Key type 2230/2242/2260/2280
M.2 PCI Express module up to Gen2 x4 (20
Gb/s)*
*If M2_2 is occupied, PCIE5 slot will be disabled
Supports NVMe SSD as
boot disks
Supports ASRock U.2 Kit
-
Connector
- 1 x Power LED and Speaker Header
- 1 x AMD Fan LED Header
- 2 x
RGB LED Headers*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU
Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2
x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x
Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed
Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power
Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power
Connector)
- 1 x Front Panel Audio Connector (15 Gold Audio Connector)
-
1 x AMD LED Fan USB Header
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
(Supports ESD Protection)
- 2 x USB 3.0 Headers (Support 4 USB 3.0 ports)
(Supports ESD Protection)
- 1 x Dr. Debug with LED
*Supports up to 12V/3A, 36W LED Strip
**The CPU Fan Connector
supports the CPU fan of maximum 1A (12W) fan power.
***The CPU
Optional/Water Pump Fan supports the water cooler fan of
maximum 1.5A
(18W) fan power.
****The Chassis Optional/Water Pump Fan supports the
water cooler fan of
maximum 1.5A (18W) fan power.
*****CPU_FAN1,
CHA_FAN1, CHA_FAN2 can auto detect if
3-pin or 4-pin fan is in
use.
-
Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical
SPDIF Out Port
- 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD
Protection)
- 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD
Protection)
- 6 x USB 3.0 Ports (Supports ESD Protection)
- 1 x RJ-45
LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch
-
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone (Gold Audio Jacks)
-
Software and UEFI
Software- ASRock A-Tuning
- ASRock RGB LED
- ASRock APP
Charger
- ASRock XFast LAN*
UEFI- ASRock Full HD UEFI
-
ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless
BIOS
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP
Shop.
-
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Browser and Toolbar
-
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data
Cables
- 1 x ASRock SLI_HB_Bridge_2S Card
- 2 x ASRock WiFi 2.4/5 GHz
Antennas
- 2 x Screws for M.2 Sockets
-
Hardware Monitor
- Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis
Optional/
Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/Water
Pump, Chassis, Chassis Optional/
Water Pump Fans
- Quiet Fan (Auto
adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump,
Chassis, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control:
CPU, CPU Optional/Water Pump, Chassis,
Chassis Optional/Water Pump
Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM,
PCH 1.05V, +1.8V, VDDP
-
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
-
OS
- Microsoft
Windows
10 64-bit*
*For the updated Windows 10 driver, please visit ASRock's
website for details.
-
Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is
required)
