All stock codes associated to this product
CL1308NATAAU, CL1308N-ATA-AU, ATCL1308NATA, ATCL1308N-ATA, 4719264642401
Overview
With limited server room space and rising
maintenance costs, network administrators are now more than ever looking for
solutions that reduce both costs and space requirements. ATEN LCD KVM Switches
offer a space saving, streamlined approach to KVM switching technology by
integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable
sliding housing.

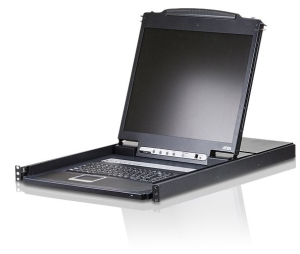

The CL1308 LCD KVM Switch features an integrated 19"
LED-backlit LCD panel allowing access and control with up to 8 computers from a

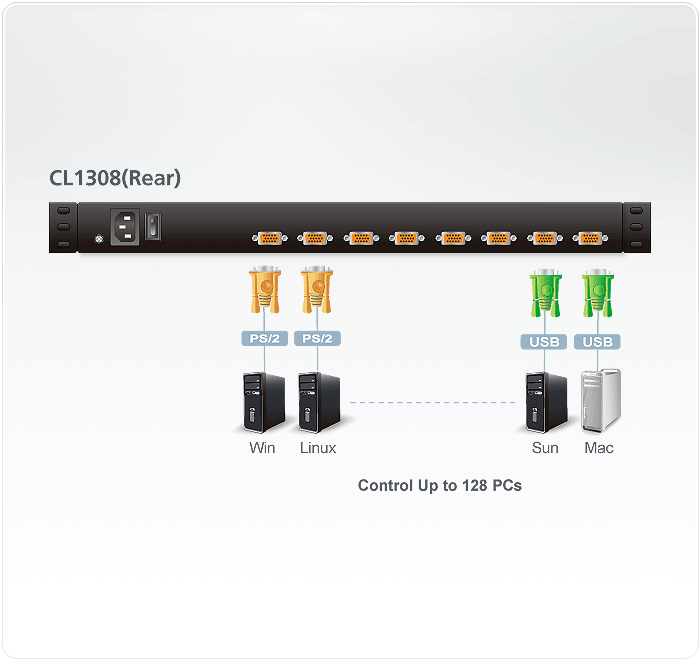

single console (keyboard, mouse, and monitor). As many as 8 additional switches
can be cascaded bringing the total number of connected computers to 128
computers that can be controlled from a single keyboard-monitor-mouse
console.
Setup is fast and easy; plugging cables into their appropriate
ports is all that is needed. The switch supports both USB and PS/2 connections
for the computers. The CL1308 intercepts keyboard input directly, thus
eliminating the need for any software configuration. Switching between computers
can be easily accomplished either by manually pressing the front panel push
button port LEDs, entering hotkey combinations from the keyboard, or via a menu
driven multilingual on-screen display (OSD) system.
Features
- Exclusive LED illumination light - designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions
- A single console controls up to 128 computers by cascade to 2 levels and
connect up to 8 switches.
- Integrated KVM console with 19 LED-backlit LCD panel
- Dual Interface supports computers with PS/2 or USB keyboards and mice
- Multiplatform support Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation computers boot even when the
console focus is elsewhere
- Superior video quality up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or
multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control
computers; up to four users and an administrator with a separate profi le for
each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode operations simultaneously performed on all selected
computers
- Hot pluggable add or remove computers without having to power down the
switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
- Keyboard language supports English (US), English (UK), French, German,
German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish,
Swedish and Traditional Chinese
Specifications
| Computer Connections |
Direct |
8 |
| Maximum |
128 (via Cascade) |
| Port Selection |
OSD, Hotkeys, Pushbuttons |
| Connectors |
KVM Ports |
8 x SPHD-17 Female (Yellow) |
| FW Upgrade |
1 x RJ-11 Female (Black) |
| Power |
1 x 3-prong AC Socket (IEC60320/C14) |
| Switches |
Reset |
1 x Semi-recessed Pushbutton |
| Power |
1x Rocker |
| FW Upgrade |
1 x Slide |
| LCD Control |
4 x Pushbutton |
| LCD On/Off |
1 x Pushbutton |
| Port |
8 x Pushbutton |
| LEDs |
Online |
8 (Orange) |
| Selected |
8 (Green) |
| Power |
KVM |
1 (Dark Green) |
| LCD |
1 (Orange) |
| Lock |
Num |
1 (Green) |
| Caps |
1 (Green) |
| Scroll |
1 (Green) |
| Emulation |
Keyboard /
Mouse |
PS/2, USB |
| Video |
19-Inch LCD |
12801024 @ 75 Hz ; DDC2B |
| Scan Interval |
1-255 seconds |
| I/P Rating |
100-240 VAC; 50/60 Hz; 1A |
| Power Consumption |
19-Inch LCD |
120V, 22W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
0 - 80% RH, Non-condensing |
Physical
Properties |
Housing |
Metal + Plastic |
| Weight |
27.75 lb. (12.59 kg) |
Dimensions
( L x W x H ) |
19.01 x 27.13 x 1.73 in.
(48.30 x 68.92 x 4.40 cm) |
Package Contents
- 1x CL1308 LCD KVM Switch with Rack Mount Kit
- 2x Custom KVM Cable Cables
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User
Instructions
