Overview
With limited server room space and rising maintenance costs, network
administrators are now more than ever looking for solutions that reduce both
costs and space requirements. ATEN LCD KVM Switches offer a space saving,
streamlined approach to KVM switching technology by integrating an LCD panel,
full keyboard, and touchpad into a 1U rack-mountable sliding housing.
The CL1316 LCD KVM Switch features an integrated 19" LED-backlit LCD panel
allowing access and control with up to 16 computers from a single console
(keyboard, mouse, and monitor). As many as 16 additional switches can be
cascaded bringing the total number of connected computers to 256 computers that
can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all
that is needed. The switch supports both USB and PS/2 connections for the
computers. The CL1316 intercepts keyboard input directly, thus eliminating the
need for any software configuration. Switching between computers can be easily
accomplished either by manually pressing the front panel push button port LEDs,
entering hotkey combinations from the keyboard, or via a menu driven
multilingual on-screen display (OSD) system.
Features
- Exclusive LED illumination light - designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions.
- A single console controls up to 256 computers by cascade to 2 levels and
connect up to 16 switches..
- Integrated KVM console with 19" LED-backlit LCD panel.
- Dual Interface – supports computers with PS/2 or USB keyboards and mice.
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun.
- Supports USB keyboards for PC, Mac and Sun.
- Auto PS/2 and USB interface detection.
- USB or PS/2 keyboard and mouse emulation – computers boot even when the
console focus is elsewhere.
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B.
- Convenient computer switching via front panel push buttons, hotkeys, or
multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control
computers; up to four users and an administrator with a separate profi le for
each.
- Auto Scan feature for monitoring user-selected computers.
- Broadcast mode – operations simultaneously performed on all selected
computers.
- Hot pluggable – add or remove computers without having to power down the
switch.
- Buzzer on/off via hotkey and OSD.
- Rack mountable.
- Keyboard Language support: English (US), English (UK), French, German,
German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish,
Swedish and Traditional Chinese.

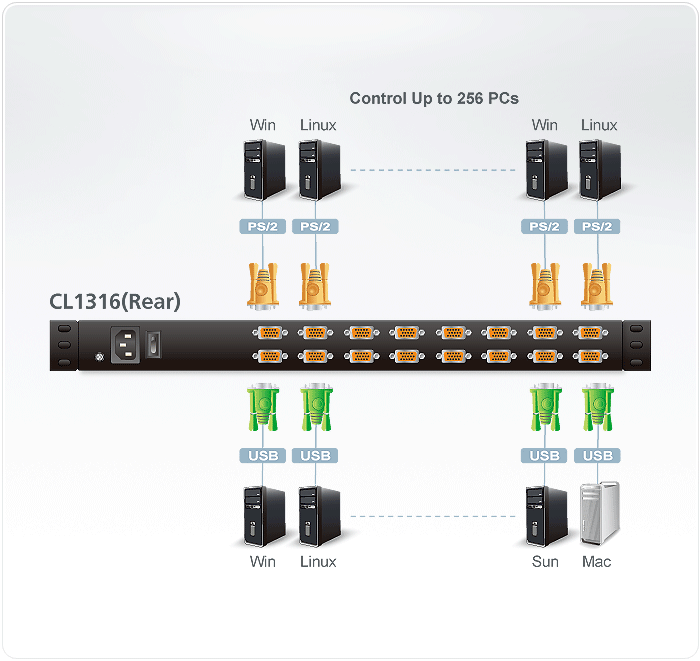

Diagram
Specifications
Computer Connections |
|
Direct |
16 |
Maximum |
256 (via Cascade) |
|
|
Port Selection |
OSD, Hotkey, Pushbuttons |
|
|
Connectors |
|
KVM Ports |
16 x SPHD-17 Female (Yellow) |
Firmware Upgrade |
1 x RJ-11 Female (Black) |
Power |
1 x 3-prong AC Socket (IEC60320/C14) |
|
|
Switches |
|
Reset |
1 x Semi-recessed Pushbutton |
Power |
1x Rocker |
Firmware Upgrade |
1 x Slide |
LCD Control |
4 x Pushbutton |
LCD On/Off |
1 x Pushbutton |
Ports |
16 x Pushbutton |
|
|
LEDs |
|
Online |
16 (Orange) |
Selected |
16 (Green) |
Power |
1 (Dark Green) |
|
1 (Orange) |
Lock |
1 (Green) |
|
|
Panel Spec |
|
LCD Module |
19" TFT-LCD |
Pixel Pitch |
0.294 mm x 0.294 mm |
Support Color |
16.7M colors |
Contrast Ratio |
1000:01:00 |
Luminance |
250 cd/m |
Response time |
5 ms |
Viewing Angle |
170 (H), 160 (V) |
|
|
Emulation |
|
Keyboard / Mouse |
PS/2, USB |
|
|
Video |
|
19" LCD |
12801024 @ 75 Hz DDC2B |
|
|
Scan Interval |
1 255 |
Maximum Input Power Rating |
100-240 VAC; 50/60 Hz; 1A |
|
|
Power Consumption |
|
19" LCD |
120V/22W; 230V/22.9W |
|
|
Environmental |
|
Operating Temperature |
0-50C |
Storage Temperature |
-20-60C |
Humidity |
0 - 80% RH, Non-condensing |
|
|
Physical Properties |
|
Housing |
Metal + Plastic |
Weight |
12.77 kg ( 28.13 lb ) |
Dimensions (L x W x H) |
48.30 x 68.92 x 4.40 cm |
|
(19.02 x 27.13 x 1.73 in.) |
|
|
Package Contents |
1x CL1316 LCD KVM Switch with Rack Mount Kit |
|
2x Custom KVM Cable Cables |
|
1x Firmware Upgrade Cable |
|
1x Power Cord |
|
1x User Instructions |
