All stock codes associated to this product
24BK550YB, 24BK550Y-B, MNL24BK550Y, MNL-24BK550Y, 4957045, LG24BK550YB, 8806087804454, 8806084080233, 8806098697526, MON-LG-I24BK550Y-B, MON-LG-I24BK550Y-B
Overview

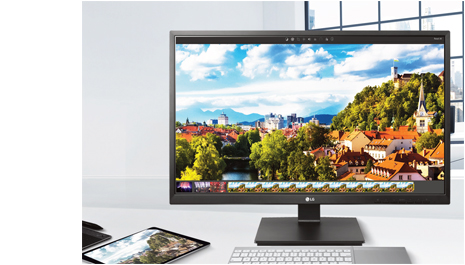

FULL HD IPS DISPLAY
Designed for professionals, this Full HD display with IPS technology
minimizes color shifts and provides outstanding picture quality from virtually
any viewing angle.

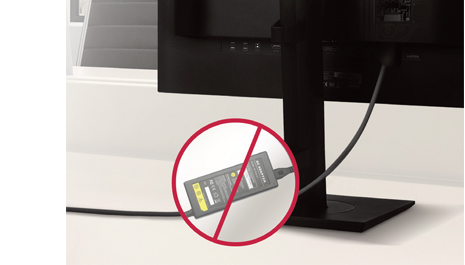

INTEGRATED POWER MODULE FOR ORGANIZED WORKSPACES
The power module is integrated with the monitor, helping to reduce the amount
of power modules in your workspace.

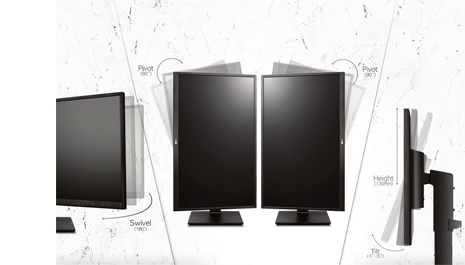

PERSONALIZED VIEWING ANGLES AND EASY ASSEMBLY
The monitors provide comfortable viewing with versatile screen
height/tilt/pivot/swivel adjustments. You can customize the display condition to
create a more personal, comfortable workstation. The monitor can be easily
assembled without any tools, and is also able to be wall-mounted*.
* Wall mount sold separately

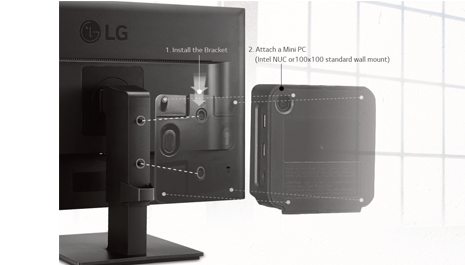

MINI PC MOUNTING CAPABILITIES
The BK550 is designed to allow for the discreet mounting of compatible mini
PCs on the rear. Using an Intel NUC or 100x100mm wall mount, users can easily
mount their mini PC*
*Bracket and PC sold separately
Specifications
|
PANEL |
|
|
Size |
24" Class (23.8" diag) |
|
Panel Type |
IPS |
|
Color Gamut (CIE1976) |
72% |
|
Color Depth (Number of Colors) |
16.7M |
|
Pixel Pitch(mm) |
0.2745 x 0.2745 |
|
Aspect Ratio |
16:09 |
|
Resolution |
1920 x 1080 |
|
Brightness (Typ.) |
250 cd/m2 |
|
Contrast Ratio (Original) |
1000:01 |
|
(DFC) |
5000000 : 1 |
|
Response Time (GTG) |
5ms |
|
Viewing Angle (CR10) |
178/178 |
|
Surface Treatment (Glare/non Glare) |
Anti-Glare 3H |
|
|
|
SIGNAL (INPUT) |
|
|
D-Sub |
Yes |
|
DVI |
Yes |
|
Display Port |
Yes(1.2) |
|
HDMI |
Yes (1.4) |
|
Jack Location |
Vertical |
|
PC Audio In |
Yes |
|
[ Jack Location ] |
Vertical |
|
Headphone Out |
Yes |
|
USB |
USB 2.0 (1 up 2 down) |
|
|
|
POWER |
|
|
Speaker |
2ch stereo |
|
Audio output (watt) |
1.2W x 2 |
|
Type |
Built-in |
|
Input |
100~240V (50/60Hz) |
|
Output |
28W |
|
Normal On (EPA) |
17.1W |
|
Normal On (typ. / outgoing)) |
23.6W |
|
Sleep Mode (Max) |
0.5W |
|
DC Off(Max) |
0.3W |
|
|
|
FREQUENCY |
|
|
H-Frequency (D-Sub) |
30 ~ 83kHz |
|
V-Frequency (D-Sub) |
56 ~ 75Hz |
|
H-Frequency (DVI-D) |
30 ~ 83kHz |
|
V-Frequency (DVI-D) |
56 ~ 75Hz |
|
H-Frequency (HDMI) |
30~83kHz |
|
V-Frequency (HDMI) |
PC: 56~75Hz, AV: 50~61Hz |
|
H-Frequency (DisplayPort) |
30~83kHz |
|
V-Frequency (DisplayPort) |
56~75Hz |
|
|
|
RESOLUTION |
|
|
D-sub |
1920 x 1080 |
|
DVI-D |
1920 x 1080 |
|
DisplayPort |
1920 x 1080 |
|
HDMI |
1920 x 1080 |
|
|
|
LANGUAGE |
|
|
Country |
English, Germanic, French, Spanish, Italian, Swedish, Finnish,
Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian,
Portuguese (Brazil), Hindi, Tranditional Chinese |
|
Number of Language |
18 |
|
|
|
SPECIAL FEATURE |
|
Picture Mode |
Yes |
|
Ratio |
Yes |
|
Reader Mode |
Yes |
|
DDC/CI |
Yes |
|
HDCP |
Yes (1.4) |
|
Intelligent Auto (Auto Adjustment) |
Yes |
|
Key Lock |
Yes |
|
Plug & Play |
Yes |
|
Response Time |
Yes |
|
Color Calibrated |
Yes |
|
Dual Control |
Yes |
|
Flicker Safe |
Yes |
|
Off Timer |
Yes |
|
Six Axis Control |
Yes |
|
Smart Energy saving |
Yes (Conserve energy by using luminance compensation
algorithm) |
|
Super Resolution+ |
Yes |
|
OSC (On Screen Control / Screen Split) |
Yes |
|
|
|
COLOR |
|
Front / Back Cover / Stand / Base |
Black (Texture) |
|
|
|
STAND |
|
Base Detachable |
Yes |
|
Tilt (Angle) |
-5 ~ 35 |
|
Height range |
130mm |
|
Down Height |
70mm |
|
Pivot |
Yes (Bi-directional, 90) |
|
Mini PC Bracket Ready |
Yes |
|
|
|
CABINET |
|
Set (with Stand) |
21.8 x 9.4 x 15.1 |
|
Set (without Stand) |
21.8 x 2.3 x 13.1 |
|
Box |
24.7 x 19.9 x 7 |
|
VESA / Wall Mount |
100 x 100 (Wall mount) |
|
Set (with Stand) |
12.6 lbs |
|
Set (without Stand) |
7.9 lbs |
|
Box Weight |
17.4 lbs |
|
|
|
STANDARD |
|
TCO (Ver.) |
Yes (7.0) |
|
UL (cUL) |
Yes |
|
TUV-GS |
Yes |
|
TUV-Ergo |
Yes |
|
CB |
Yes |
|
FCC-B |
Yes |
|
CE |
Yes |
|
EPA |
Yes (7.0) |
|
ISO 9241-307 |
Yes |
|
EPEAT |
Yes (Gold,US/DG) |
|
Windows |
Win 10 |
|
ROHS, REACH |
Yes |
|
PVC-Free |
Yes |
|
ACCESSORIES |
|
Power Cord |
Yes |
|
DisplayPort |
Yes |
|
HDMI |
Yes |
|
CD (Manual / Software) |
Yes (Manual, Driver) |
|
|
|
OTHER |
|
UPC |
7 19192 60907 5 |
|
Warranty |
3-Year Limited Warranty
(Parts/Labor/Backlight) |
