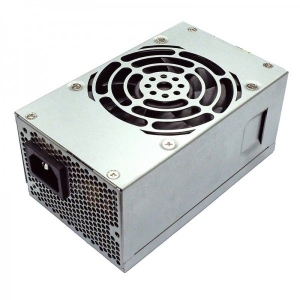

Seasonic SSP-300TGS Active PFC
Overview
This industrial power supply is TFX 12 V v.2.31 compliant and offers DC to DC
converter design and important protection features for safe operations. It is
perfect for desktop of mini ITX cases and with its 80 PLUS Gold rating it can
achieve up to 90 % efficiency at 115 V AC at 50 % load. This unit supports the
latest Intel and AMD platforms and with above 100,000 hours MTBF rate it is
highly reliable.
Features
- SATA-ready
- DC to DC converter design
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control (S2FC)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
Specifications
DC Outputs |
+3.3 V |
+5 V |
+12 V (combined) |
-12 V |
+5 V sb |
Total continuous power |
Input Type |
10A |
14 A |
25 A |
0.3 A |
2A |
300 W |
Full Range |
70 W |
300 W |
3.6 W |
10 W |
Specifications |
|
Input
frequency |
50 / 60
Hz |
Inrush current at cold
sta |
100 A
max. |
Efficiency (at normal
input voltage) |
> is = to 87 % |
Line
regulation |
±1 %
(typical) |
Load
regulation |
±5 %
(typical) |
Cross
regulation |
±5 %
(typical) |
Ripple /
noise |
1% |
MTBF, full load @ 25 C
ambient (excl. DC fan) |
> 100,000
hours |
Power Factor
Correction |
99 %
(typical) |
