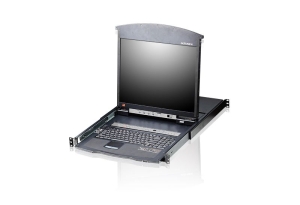

Aten CL5708N-ATA-AU 8-Port Slideaway 19in. Single
Rail LCD KVM
Overview
The CL5708N Slideawayâ„¢ LCD KVM Switch is a control unit that allows access to
multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse)
console. A single CL5708 can control up to 8 computers. As many as 31 additional
KVM switches can be daisy-chained to the CL5708N, so that up to 256 computers
can all be controlled from a single KVM console.
The CL5708N offers a space-saving, streamlined approach to KVM switch
technology by integrating a keyboard, 19" LED-backlit LCD monitor, and touchpad
in a 1U rack-mountable sliding housing.
Package Contents
- 1x CL5708N KVM Switch with standard Rack Mount Kit
- 2x Custom KVM Cable Sets (2L-5202P / 2L-5202U)
- 1x 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x Power Cord (6ft.)
- 1x Grounding Wire (4ft.)
- 1x User Manual
- 1x Quick Start Guide
Features
- Integrated KVM console with 17" LED-backlit LCD monitor in a Slideawayâ„¢
housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 8
computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a
single console (With compatible KVM Switches: ACS1208A, ACS1216A,
CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards
and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and
simultaneous booting of multiple computers even when the console focus is
elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel
pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for
manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control
computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all
available computers on the installation
- Hot pluggable - add or remove computers without having to power down the
switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the
daisy-chain cable
- Keyboard Language support: English (US), English (UK), French, German,
German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish,
Swedish and Traditional Chinese
*The USB peripheral function only works with USB cable set connections. It
will not work with PS/2 cable set connections.
The fingerprint reader can be used as an alternate means of logging in to the
switch. From 1 to 4 fingers can be scanned for each user and the administrator,
with any one of the recorded fingerprints used to log in.

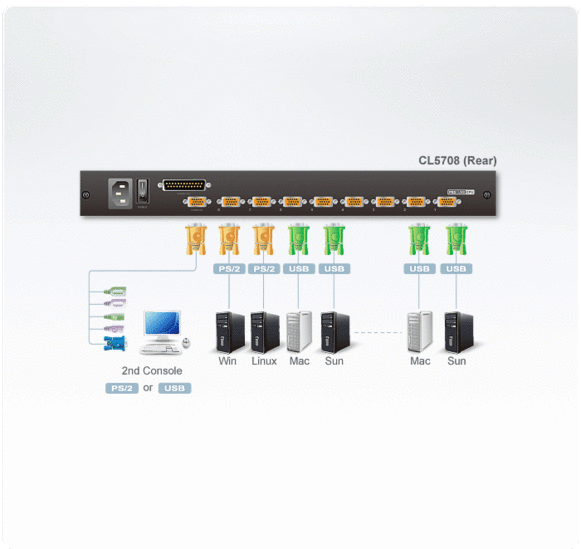

Diagram
Specifications
|
Computer
Connections |
|
|
Direct |
8 |
|
Daisy Chain or
Cascading |
256(via
Daisy-Chain) |
|
Port
Selection |
OSD, Hotkey,
Pushbutton |
|
Console
Connectors |
|
|
Keyboard, Mouse, and
Monitor |
1 x SPHD-18 Male
(Yellow) |
|
Monitor |
1 x USB Type-A Female
(White) |
|
Flash ROM
Upgrade |
1 x RJ-11
Female |
|
Connectors |
|
|
Computer/KVM |
8 x SPHD-15 Female
(Yellow) |
|
Power |
1 x 3-prong AC
Socket |
|
USB |
1 x USB Type-A Female
(White) |
|
Switches |
|
|
Power |
1 x
Rocker |
|
LCD
Power |
1 x
Pushbutton |
|
LCD
Adjustment |
4 x
Pushbuttons |
|
Port
Selection |
2 x Pushbuttons [port]
2 x Pushbuttons[station] |
|
F/W
Upgrade |
1 x
Slide |
|
Reset |
1 x Semi-recessed Push
Button |
|
LEDs |
|
|
Port
ID |
2 x 7-segment LED
[Yellow] |
|
Power
On |
1 (Dark
Green) |
|
LCD
Power |
1
(Orange) |
|
Station
ID |
2 x 7-segment LED
[Yellow] |
|
On
Line |
8
(Orange) |
|
Video
Resolution |
1280 x 1024 @ 75 Hz
(DDC2B) |
|
Daisy
Chain |
1 x DB-25 Male
(Black) |
|
Emulation |
|
|
Keyboard |
PS/2,
USB |
|
Mouse |
PS/2,
USB |
|
Scan
Interval |
1 - 255
sec. |
|
Power |
|
|
Amps |
1 A |
|
Voltage |
110 - 230 VAC 50 - 60
HZ |
|
Power
Consumption |
120V, 24W/230V,
25W |
|
Environment |
|
|
Storage
Temperature |
-4~140 DegreeF (-20~60
DegreeC) |
|
Humidity |
0 ~ 80% RH,
Noncondensing |
|
Operation
Temperature |
32~122 DegreeF(0~50
DegreeC) |
|
Housing |
|
|
Case |
Metal +
Plastic |
|
Unit
Dimensions |
|
|
Width |
18.9
in |
|
Height |
1.7
in |
|
Depth |
24.9
in |
|
Unit Package
Dimensions |
|
|
Width |
25.75
in |
|
Height |
5.375
in |
|
Depth |
12.9
in |
|
Weight |
|
|
Master Carton
Wt. |
34
lbs |
|
Unit Pack
Wt. |
33
lbs |
|
Unit Wt.
w/accessories |
32
lbs |
|
Unit
Wt. |
30.3
lbs |
|
Physical
Properties |
|
|
Case
Dimension |
18.89 x 27.13 x 1.73
in |
|
Case
Weight |
29.51
lbs |
|
Case
Qty |
1 |
