All stock codes associated to this product
AVDPH2000, AV-DPH2000, 4710747389943
Overview
-
Works with any desktop or notebook computer which has
DisplayPort output connectivity.
-
Fully HD compatible and provides full display
performance with virtually zero latency and no display application
limitations.
-
Hot Plug & Plug-n-play feature without
configuration.
-
Compatible with DisplayPort v1.1a, HDMI V1.3, VESA
DDM, and EDID v1.4 Standards.
-
Supports main link rates of 2.7Gbps (HBR) and
1.62Gbps (RBR) from the source.
-
Supports exceptional Secured Content Protection with
HDCP 1.3 for digital content.
-
Supports 2 HDMI Monitor output resolutions up to
3840x1200@60Hz.
-
Supports video mirror and extension
mode.
-
Driver free under Windows and Linux operation
systems.
-
Certified by CE, FCC, VCCI, BSMI, and
RoHS.
Introduction
SUNIX DPH2000 DisplayPort graphics splitter dongle is an innovative, external
multi-display adapter that allows end users to enjoy multiple monitors from a
single digital DisplayPort source for each application, such as gaming, graphics
design or spreadsheet analysis; or the user can choose to dedicate each monitor
to a separate application.
SUNIX DisplayPort graphics splitter dongle lets you combine two DisplayPort
monitors as one display, at a maximum resolution of 3840x1200, to make the
ultimate wide screen desktop. This graphics expansion module can also clone your
primary display and function as a 2 Port HDMI Video Splitter.
Compatible with a DisplayPort video card, SUNIX HDMI graphics splitter dongle
requires no software installation for multi-display applications, plug-n-play,
simplifying configuration and saving time. It works for standard Microsoft
Windows and Linux PC with DisplayPort connectivity.
Features

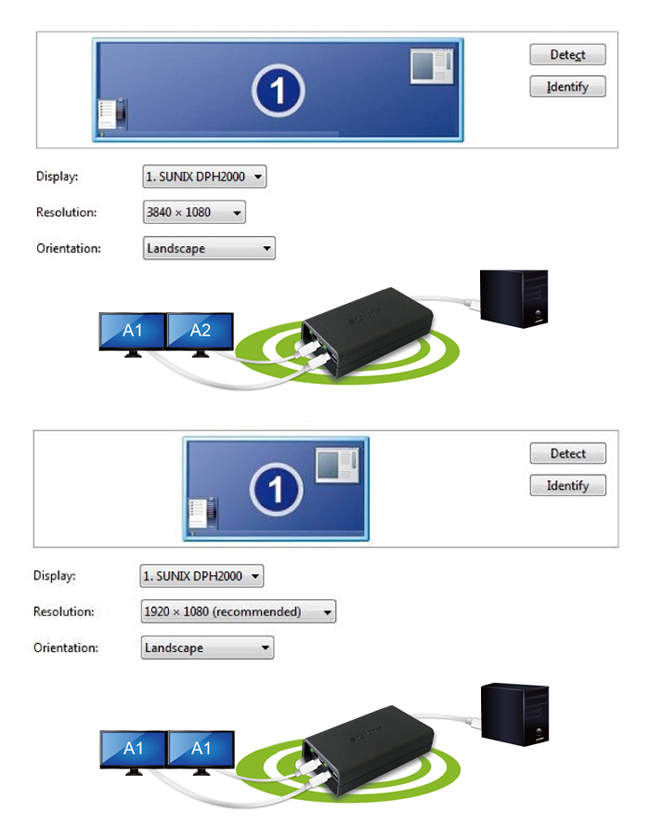

Application 1

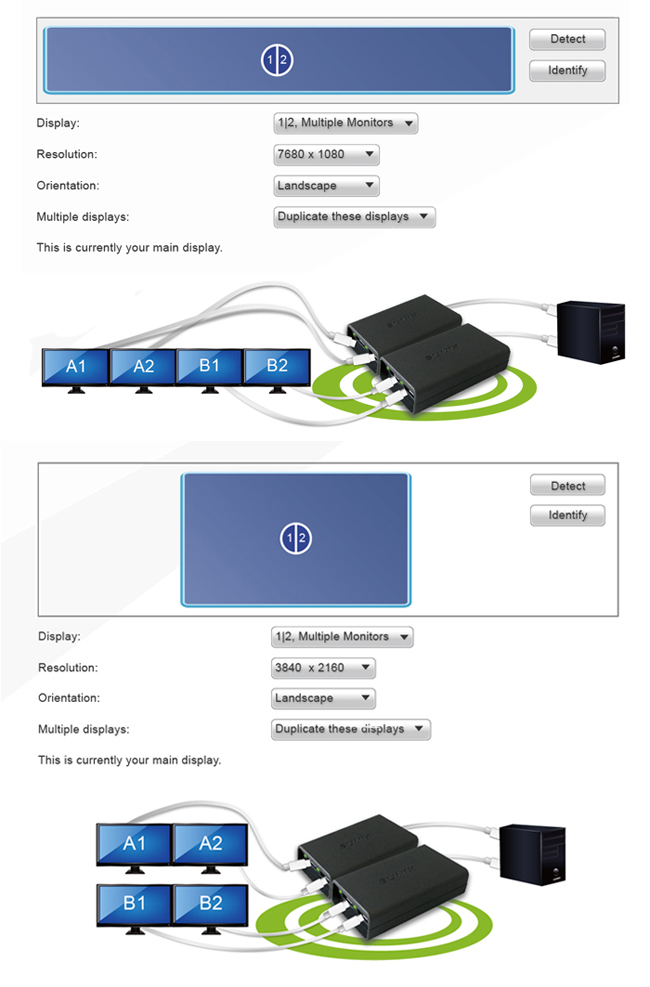

Application 2
Specifications
|
Model |
DPH2000 |
|
Description |
DisplayPort Splitter |
|
Video input Connectivity |
DisplayPortv1.1a x 1-port Female |
|
Video output Connectivity |
HDMI v1.3 x 2-port Female |
|
Audio output Connectivity |
Audio (pass-through) up to 7.1 channel / 192KHz
rate |
|
LED |
Green LED for each downstream port to indicate HDMI link
status. |
|
Resolution Support |
Two Monitors |
|
Computer Settings |
Each Monitor |
|
3840 x 1200 |
1920 x 1200 |
|
3840 x 1080 |
1920 x 1080 |
|
2560 x 1024 |
1280 x 1024 |
|
2048 x 768 |
1024 x 768 |
|
3360 x 1050 |
1680 x 1050 |
|
3200 x 1200 |
1600 x 1200 |
|
2880 x 900 |
1440 x 900 |
|
1600 x 600 |
800 x 600 |
|
1280 x 480 |
640 x 480 |
|
2800 x 1050 |
1400 x 1050 |
|
* Note |
|
Power Consumption |
1.2W |
|
+3.3VDC DisplayPort Bus Power |
|
Case Material |
PC (polycarbonate) |
|
Weight |
65g ± 2g (2.3oz) |
|
Regulatory Approvals |
EUR: CE, EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3-3 |
|
US: FCC Part 15 Class B |
|
TAIWAN: BSMI: CNS13438 |
|
JAPAN: VCCI |
|
O.S. support |
Windows XP/2003/Vista/7/2008/8/.1, (32/64-bit) |
|
Linux 2.6.x or later |
|
Environment |
Operation temp. 0 °C ~ 40 °C (32-104°F) |
|
Operation humidity: < 85% non-condensing |
|
Storage temp. -10 °C ~ 85 °C
(14~176°F) |
