Aten CE610A DVI HDBaseT KVM Extender w.
ExtremeUSB
The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports
ExtremeUSB and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals
up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
The CE610A is equipped with USB connectors which allow you to extend any USB
device between the units. The USB functionality provides not only peripheral
sharing but also the support for touch panel control and fi le transfer. The
CE610A is ideal for situations where touch panel is required, such as
transportation centers, medical facilities, shopping malls, industrial kiosks,
and when synchronizing for files / folders between portable and desktop
computers are required.
Package Contents
- 1x CE610AL DVI HDBaseT KVM Extender with ExtremeUSB ® (Local Unit)
- 1x CE610AR DVI HDBaseT KVM Extender with ExtremeUSB ® (Remote Unit)
- 1x Custom DVI Cable (DVI Dual Link; 1.8m/6ft)
- 1x USB Cable (1.8m/6ft)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Features
- Uses a single Cat 5e cable to connect the local and remote units
- Allows access to a computer or KVM installation from a remote console
- Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
- Anti-jamming – resists signal interference during high-quality video
transmissions using HDBaseT technology
- ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play
(no software or drivers required)
- Supports USB 1.1 web cameras
- USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash
drive, printer, touch panel other USB devices which require moderate amounts
of bandwidth
- Extends local PC Video/Keyboard/Mouse to remote side
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Works with all major operating systems: Windows®, OS X®, and
Linux®

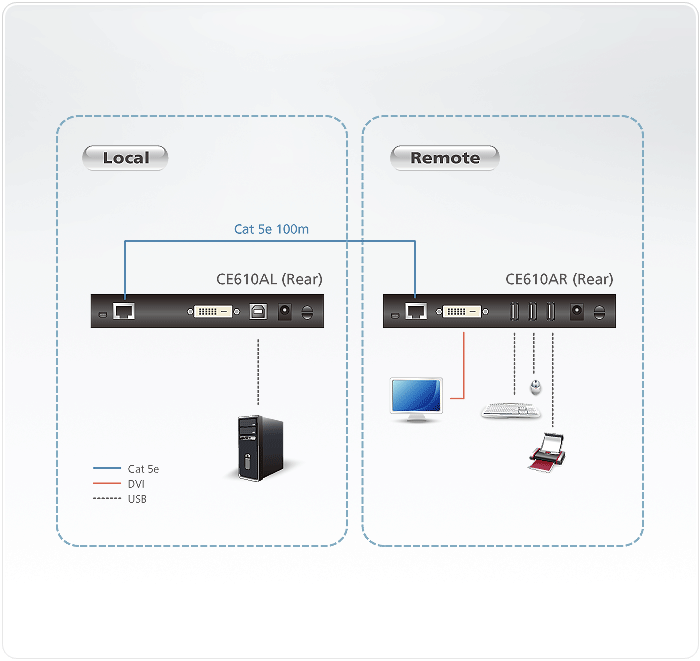

Diagram
Specifications
|
Function |
CE610AL |
CE610AR |
|
Connectors |
|
|
|
Video In |
1 x DVI-D Female (White) |
N/A |
|
Video Output |
N/A |
1 x DVI-D Female (White) |
|
Power |
1 x DC Jack |
1 x DC Jack |
|
Firmware Upgrade |
1 x mini-USB |
1 x mini-USB |
|
USB Port |
1 x USB Type B Female (White) |
3 x USB Type A Female (White) |
|
Unit To Unit |
1 x RJ-45 Female (Black) |
1 x RJ-45 Female (Black) |
|
|
|
|
|
LEDs |
|
|
|
Power |
1 (Green) |
1 (Green) |
|
Link |
1 (Green) |
1 (Green) |
|
USB |
1 (Green) |
1 (Green) |
|
Video |
1 (Green) |
1 (Green) |
|
|
|
|
|
USB |
USB 2.0 (Transfer Rate: Up to 40Mbps) |
USB 2.0 (Transfer Rate: Up to 40Mbps) |
|
Video |
1920 x 1200 @ 60Hz (100 m) |
1920 x 1200 @ 60Hz (100 m) |
|
Power Consumption |
DC 5V, 15 W |
DC 5V, 15 W |
|
|
|
|
|
Environmental |
|
|
|
Operating Temperature |
0–40°C |
0–40°C |
|
Storage Temperature |
-20–60°C |
-20–60°C |
|
Humidity |
0–80% RH, Non-condensing |
0–80% RH, Non-condensing |
|
|
|
|
|
Physical Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.62 kg ( 1.37 lb ) |
0.62 kg ( 1.37 lb ) |
|
Dimensions (L x W x H) |
18.20 x 11.79 x 2.87 cm |
18.20 x 11.79 x 2.87 cm |
|
|
(7.17 x 4.64 x 1.13 in.) |
(7.17 x 4.64 x 1.13 in.) |
|
|
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
