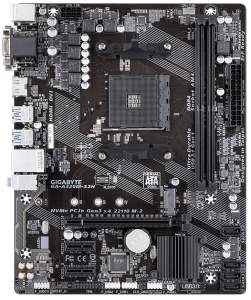

Gigabyte GA-A320M-S2H Motherboard
Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32
Gb/s)
GIGABYTE M.2 solution offers considerably faster storage performance and
support for both PCIe and SATA interfaces* for M.2 SSD devices.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital
output technologies on todays HD displays and TVs.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content
delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than
four times today's standard HD pixel density. GIGABYTE motherboards provide
native 4K support with integrated AMD RadeonGraphics
via HDMI.
HDMIâ„¢ - The Next Generation Multimedia Interface
HDMI is
a High-Definition Multimedia Interface which provides up to 5Gb/s video
transmitting bandwidth and 8-channel high quality audio all through a single
cable. Able to transmit superior, uncompressed digital video and audio, HDMI
ensures the crispest rendering of digital content up to 1080p without the
quality losses associated with analog interfaces and their digital-to-analog
conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital
Content Protection), allowing the playback of Blu-ray/HD DVD and other protected
media content.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
All Hybrid Fan Pin Headers
- All Hybrid Fan Headers can automatically detect the type of cooling device
whether it be fan or pump with different PWM or Voltage mode.
- Supports up to 2 amps with built-in overcurrent protectiona must for
high-end high current fans.

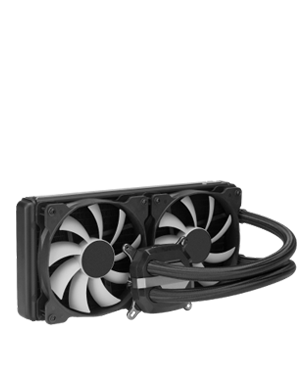

Closed Loop Watercooling

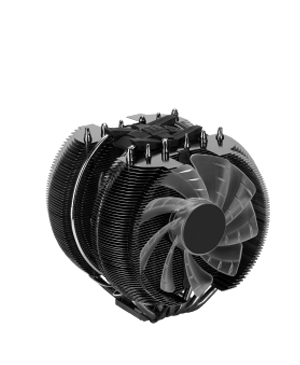

CPU Fan

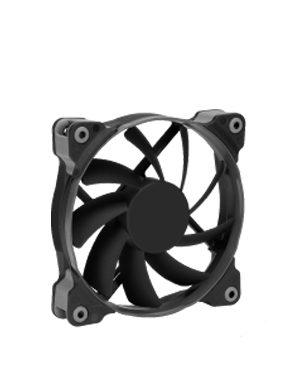

System Fan

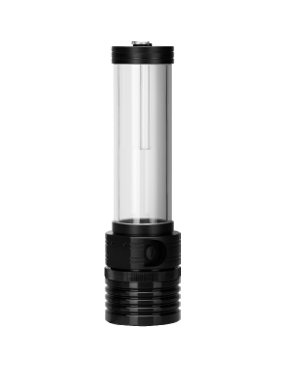

Watercooling Pump
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage
scenario. For each fan or pump, you can use the intuitive fan curve to define
trigger thresholds and corresponding fan speeds.
Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any
defined temperature source input (except the CPU fan).
Fan Curve
Customize fan curves based on specific temperatures with the intuitive
graphical UI.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart
Fan 5 UI, such as: the ability to set triggers based on different temperature
sensors on the board, fan curve definition and the temperature interval setting,
which can prevent fan rotation noise caused by sudden temperature changeall
without having to load Windows.

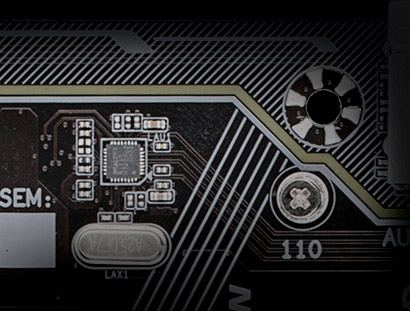

Realtek GbE LAN with cFosSpeed Internet Accelerator
Software
Realtek Gigabit LAN features cFosSpeed, a network traffic management
application which helps to improve network latency and maintain low ping times
to deliver better responsiveness in crowded LAN environments.
Anti-Sulfur Resistor Design
Sulfur compounds in the air can penetrate tiny onboard resistors creating
chemical change and causing these resistors to open or short. If either of these
occurs the motherboard will fail to function. By equipping resistors with an
Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new
meaning.
High Quality Onboard Audio Design
Audio Noise Guard

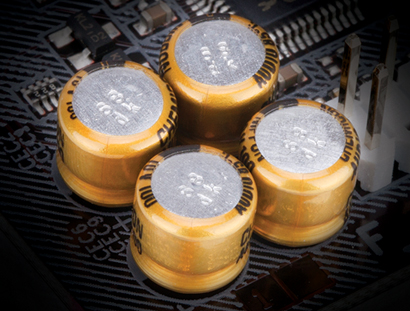

High-End Audio Components
Delivers high quality sound resolution and sound expansion to create the most
realistic sound effects for professional gamers.
Humidity Protection Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and
most parts of the world experience moisture in the air as humidity at some point
during the year. GIGABYTE motherboards have been designed to make sure that
humidity is never an issue, incorporating a new Glass Fabric PCB technology that
repels moisture caused by humid and damp conditions. Glass Fabric PCB technology
uses a new PCB material which reduces the amount of space between the fiber
weave, making it much more difficult for moisture to penetrate compared to
traditional motherboard PCBs. This offers much better protection from short
circuit and system malfunction caused by humid and damp conditions.
High Temperature Protection Lower RDS(on) MOSFETs Design
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage
through unnecessary residual heat dissipation. This all amounts to tangible
energy savings which are beneficial for both end-users and the environment
without impacting system performance.
Refreshed BIOSEasy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most
optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has
been able to reinvent the BIOS to give users a better experience while setting
up their new system.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps
that help you get the most from your GIGABYTE motherboard. Using a simple,
unified user interface, GIGABYTE APP Center allows you to easily launch all
GIGABYTE apps installed on your system, check related updates online, and
download the latest apps, drivers, and BIOS.

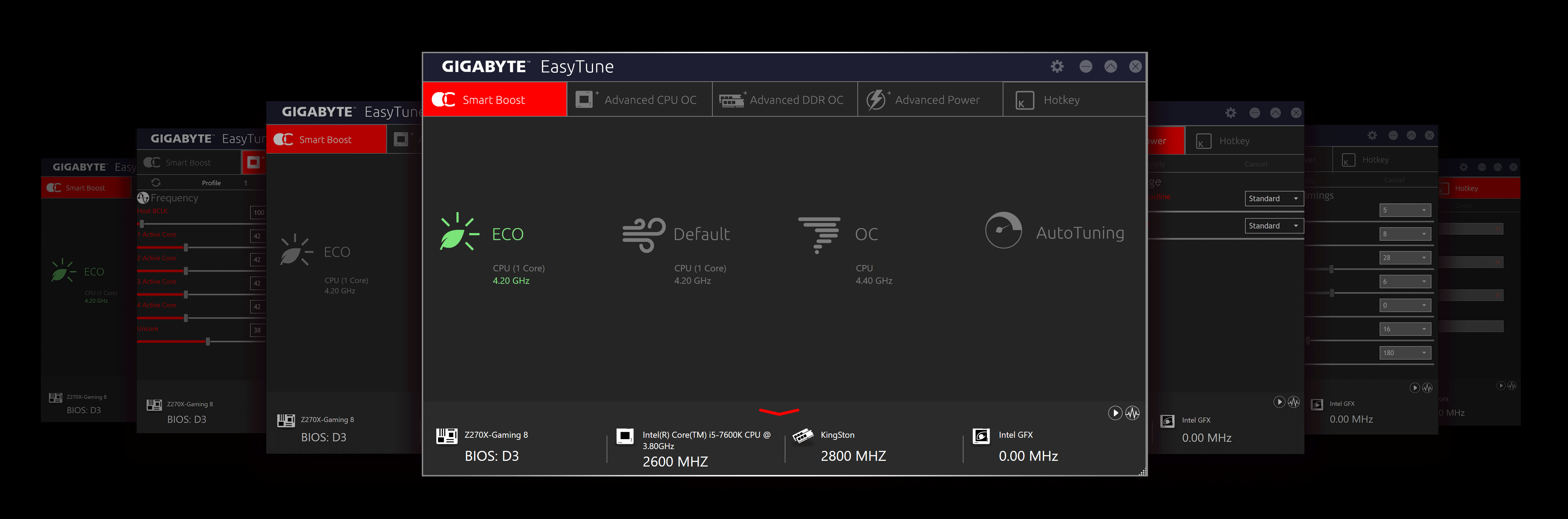

EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users
to fine-tune their system settings or adjust system and memory clocks and
voltages in a Windows environment. With Smart Quick Boost, one click is all it
takes to automatically overclock your system, giving an added performance boost
when you need it the most.

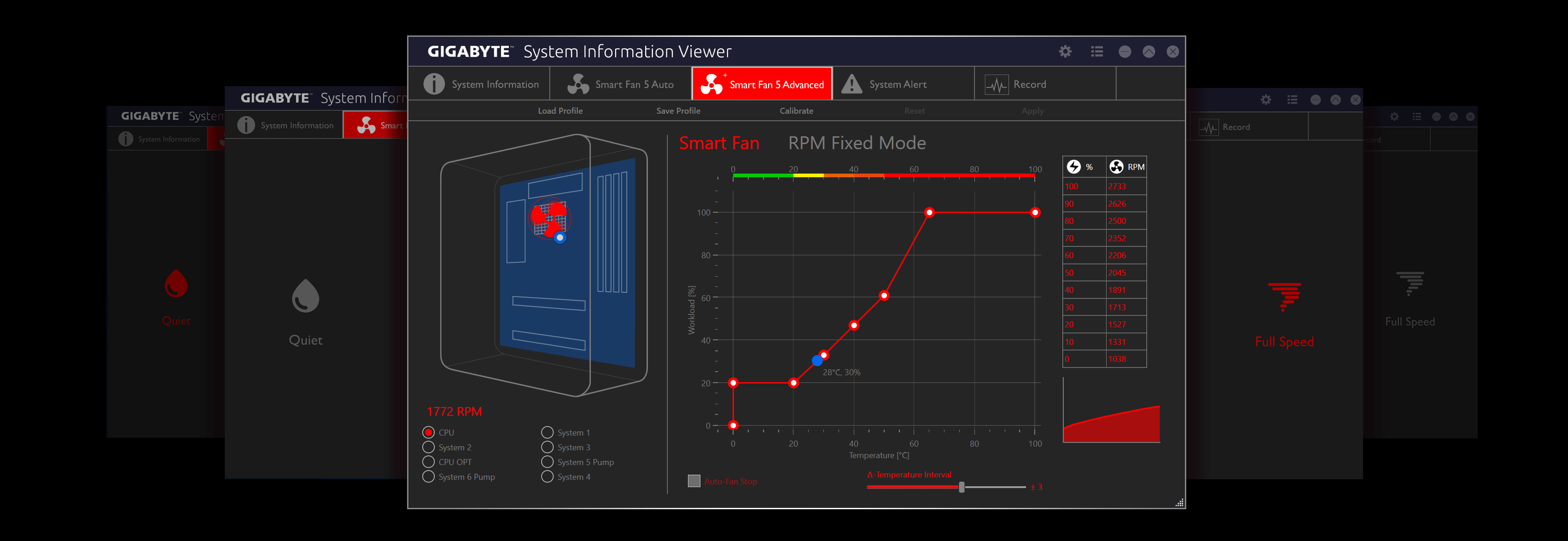

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you
access to your current system status. Monitor components such as the clocks and
processor, set your preferred fan speed profile, create alerts when temperatures
get too high or record your systems behavior; these are the possibilities of the
System Information Viewer.

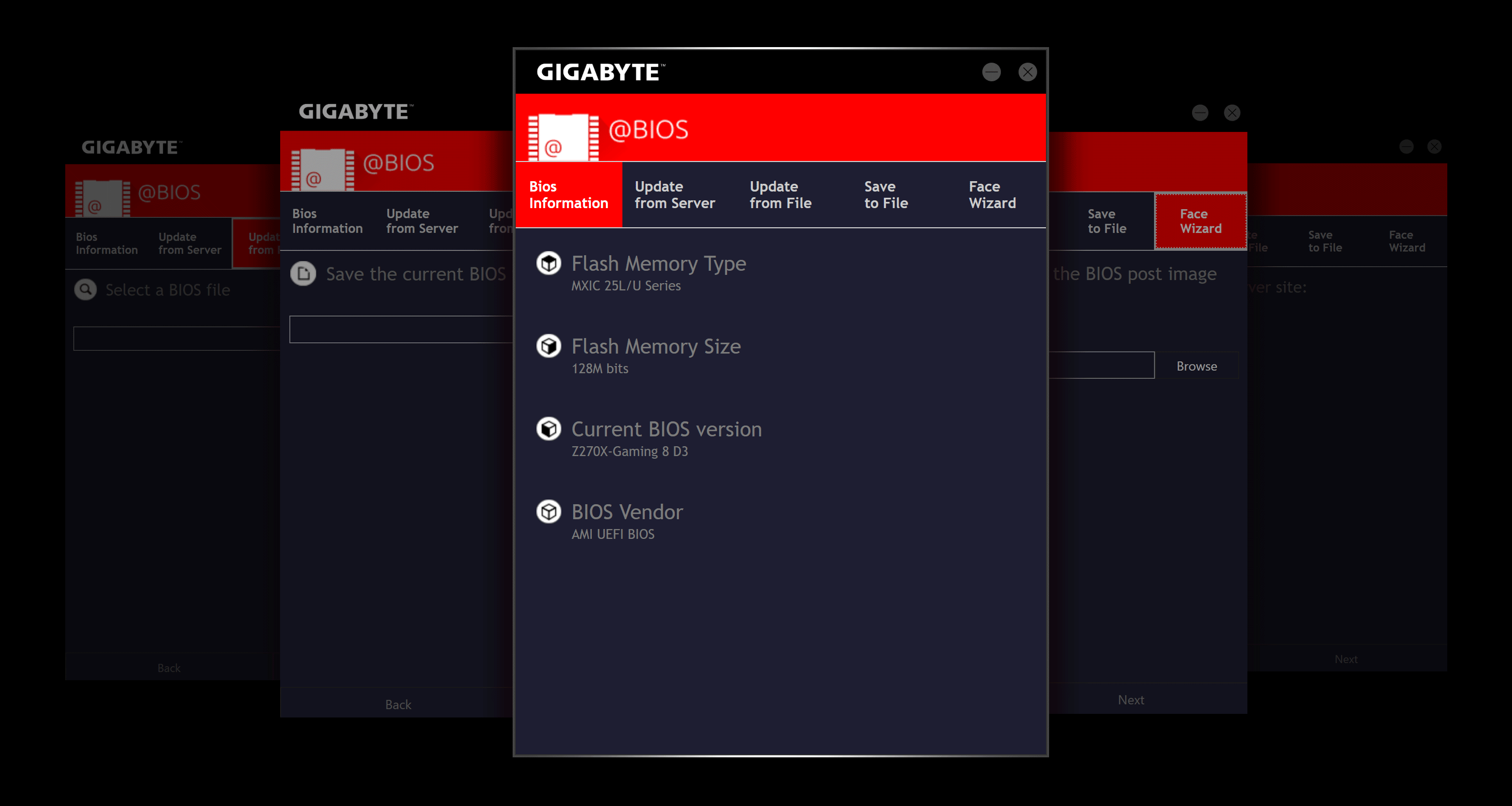

@BIOS
The GIGABYTE @BIOS app allows you to update your systems BIOS from within
Windows using a simple and slick graphical user interface. @BIOS can
automatically download the latest version from the GIGABYTE serversor you can
update your BIOS from a file on your computer. @BIOS also allows you to save
your current BIOS to a file, recover your previous BIOS from an image and backup
your BIOS to an image.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime,
Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster + Broadcaster! Fully optimized social media integration is ready for
real-time chatskeeping you notified yet focused in the game. It takes just one
click to stream your gameplay to Twitch. Host your game like a pro!
TriDef® SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each GIGABYTE motherboard
includes TriDefSmartCam
software, you are now able to remove backgrounds without the hassle of using a
green screen. Through the SmartCam application you can now apply live filters,
and fully control your background, not only while streaming, but also through
other video applications such as Skype.
Specifications
CPU |
|
AM4 Socket: |
1. AMD Ryzen processor |
|
2. AMD 7th Generation A-series/ Athlon
processor |
|
(Please refer "CPU Support List" for more
information.) |
|
|
Chipset |
1. AMD A320 |
Memory |
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system
memory |
|
2. Dual channel memory architecture |
|
3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory
modules |
|
* Actual support may vary by CPU. |
|
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate
in non-ECC mode) |
|
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules |
|
6. Support for Extreme Memory Profile (XMP) memory
modules |
|
(Please refer "Memory Support List" for more
information.) |
|
|
Onboard Graphics |
Integrated Graphics Processor: |
|
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60
Hz |
|
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60
Hz |
|
* The DVI-D port does not support D-Sub connection by
adapter. |
|
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24
Hz |
|
* Support for HDMI 1.4 version. |
|
Maximum shared memory of 2 GB |
|
* Actual support may vary by CPU. |
|
|
Audio |
1. Realtek ALC887 codec |
|
2. High Definition Audio |
|
3. 2/4/5.1/7.1-channel |
|
* To configure 7.1-channel audio, you have to use an HD front panel
audio module and enable the multi-channel audio feature through the audio
driver. |
|
4. Support for S/PDIF Out |
|
|
LAN |
1. Realtek GbE LAN chip (10/100/1000 Mbit) |
|
|
Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16
(PCIEX16) |
|
* Actual support may vary by CPU. |
|
(The PCIEX16 slot conforms to PCI Express 3.0
standard.) |
|
2. 2 x PCI Express x1 slots |
|
(The PCI Express x1 slots conform to PCI Express 2.0
standard.) |
|
|
Storage Interface |
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA
and PCIe x4/x2* SSD support) |
|
* Actual support may vary by CPU. |
|
* Supports only M.2 SATA SSDs when using an AMD 7th Generation
A-series or Athlon processor. |
|
2. 4 x SATA 6Gb/s connectors |
|
3. Support for RAID 0, RAID 1, and RAID 10 |
|
* Refer to "1-7 Internal Connectors," for the installation notices for
the M.2 connector. |
|
|
USB |
|
Chipset: |
1. 2 x USB 3.1 Gen 1 ports available through the internal USB
header |
|
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available
through the internal USB headers) |
|
|
CPU: |
1. 4 x USB 3.1 Gen 1 ports on the back panel |
|
|
Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
|
2. 1 x 8-pin ATX 12V power connector |
|
3. 1 x CPU fan header |
|
4. 1 x system fan header |
|
5. 1 x M.2 Socket 3 connector |
|
6. 4 x SATA 6Gb/s connectors |
|
7. 1 x front panel header |
|
8. 1 x front panel audio header |
|
9. 1 x S/PDIF Out header |
|
10. 1 x USB 3.1 Gen 1 header |
|
11. 2 x USB 2.0/1.1 headers |
|
12. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the
GC-TPM2.0 module only) |
|
13. 1 x speaker header |
|
14. 1 x Clear CMOS jumper |
|
15. 1 x chassis intrusion header |
|
|
Back Panel Connectors |
1. 1 x PS/2 keyboard port |
|
2. 1 x PS/2 mouse port |
|
3. 1 x D-Sub port |
|
4. 1 x DVI-D port |
|
5. 1 x HDMI port |
|
6. 4 x USB 3.1 Gen 1 ports |
|
7. 2 x USB 2.0/1.1 ports |
|
8. 1 x RJ-45 port |
|
9. 3 x audio jacks (Line In, Line Out, Mic In) |
|
|
I/O Controller |
1. iTE I/O Controller Chip |
|
|
H/W Monitoring |
1. Voltage detection |
|
2. Temperature detection |
|
3. Fan speed detection |
|
4. Overheating warning |
|
5. Fan fail warning |
|
6. Fan speed control |
|
* Whether the fan speed control function is supported will depend on
the cooler you install. |
|
|
BIOS |
1. 1 x 128 Mbit flash |
|
2. Use of licensed AMI UEFI BIOS |
|
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 |
|
|
Unique Features |
1. Support for APP Center |
|
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications. |
|
@BIOS |
|
3D OSD |
|
AutoGreen |
|
BIOS Setup |
|
Cloud Station |
|
Color Temperature |
|
EasyTune |
|
Fast Boot |
|
Game Boost |
|
ON/OFF Charge |
|
Smart Backup |
|
Smart Keyboard |
|
Smart TimeLock |
|
System Information Viewer |
|
USB Blocker |
|
V-Tuner |
|
2. Support for Q-Flash |
|
3. Support for Xpress Install |
|
|
Bundle Software |
1. Norton Internet Security (OEM version) |
|
2. cFosSpeed |
|
|
Operating System |
1. Support for Windows 10 64-bit |
|
2. Support for Windows 7 64-bit |
|
* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7. |
|
|
Form Factor |
1. Micro ATX Form Factor; 24.4cm x 19.5cm |
|
|
Remark |
1. Due to different Linux support condition provided by chipset
vendors, please download Linux driver from chipset vendors' website or 3rd
party website. |
|
2. Most hardware/software vendors may no longer offer drivers to
support Win9X/ME/2000/XP. If drivers are available from the vendors, we
will update them on the GIGABYTE
website. |
