VE8950R-AT-U | ATEN VE8950R 4K HDMI over IP Receiver

Aten VE8950R-AT-U 4K HDMI over IP Receiver

Overview

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.

The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

• Limitless scalability and flexibility
• No complicated IP setup
• No additional server PCs or software required required
• Go further for less with daisy chaining

Engineered to meet todays demands oflarge scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

Package Contents

• 1x VE8950R 4K HDMI over IP Receiver
• 1x RS-232 Terminal block
• 1x 5V Power adapter
• 1x User instructions

Features

• Lightweight Compression with Ultra-low Latency
  • Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
  • Ensures stunning quality video using ATEN advanced video lossless compression technology
  • EDID Expertâ„¢ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
• Limitless Scalability and Flexibility
  • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations

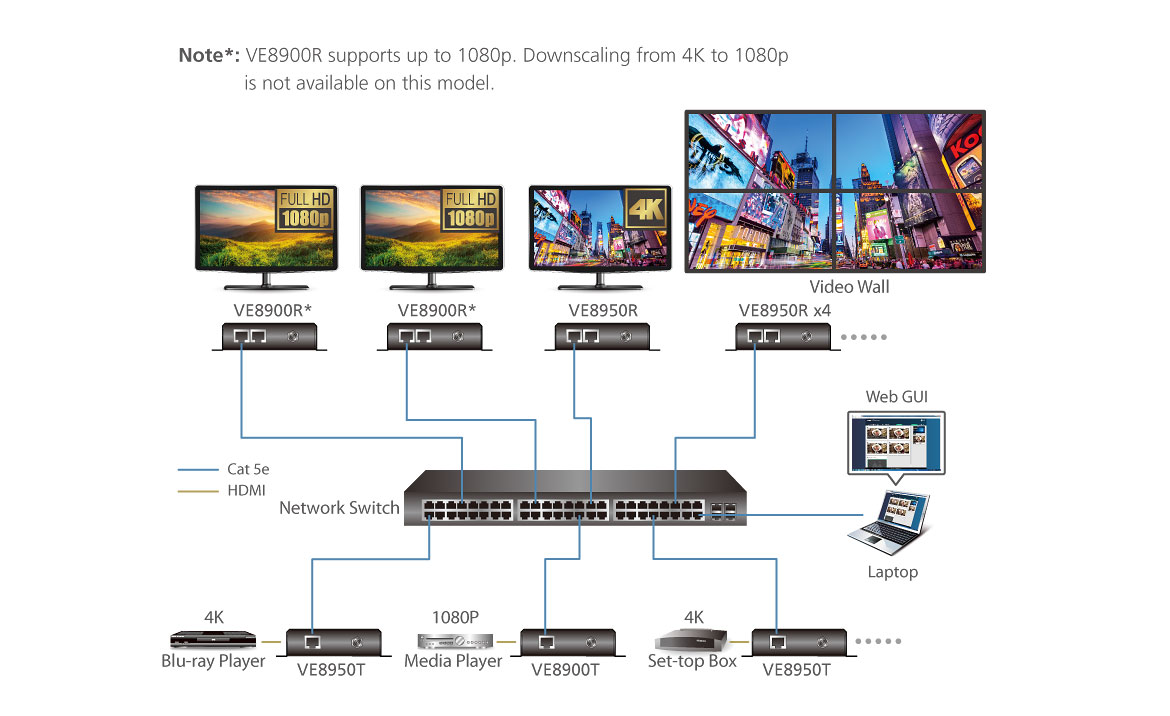

  • Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
  • Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signals to match the maximum resolution of the connected display devices

• No Complicated IP Setup
  • Simple configuration that requires no extensive IT experience or extra learning

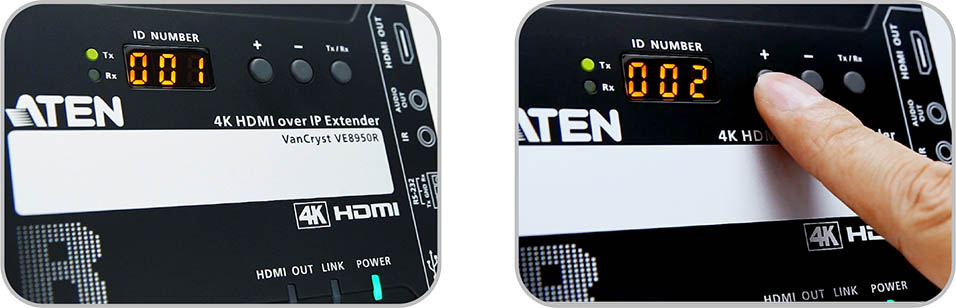

  • Effortlessly switches among input sources via top panel pushbuttons

• No Additional Server PCs or Software Required
  • Supports web GUI for device management
  • No additional server PCs, control boxes, or software/drivers are needed

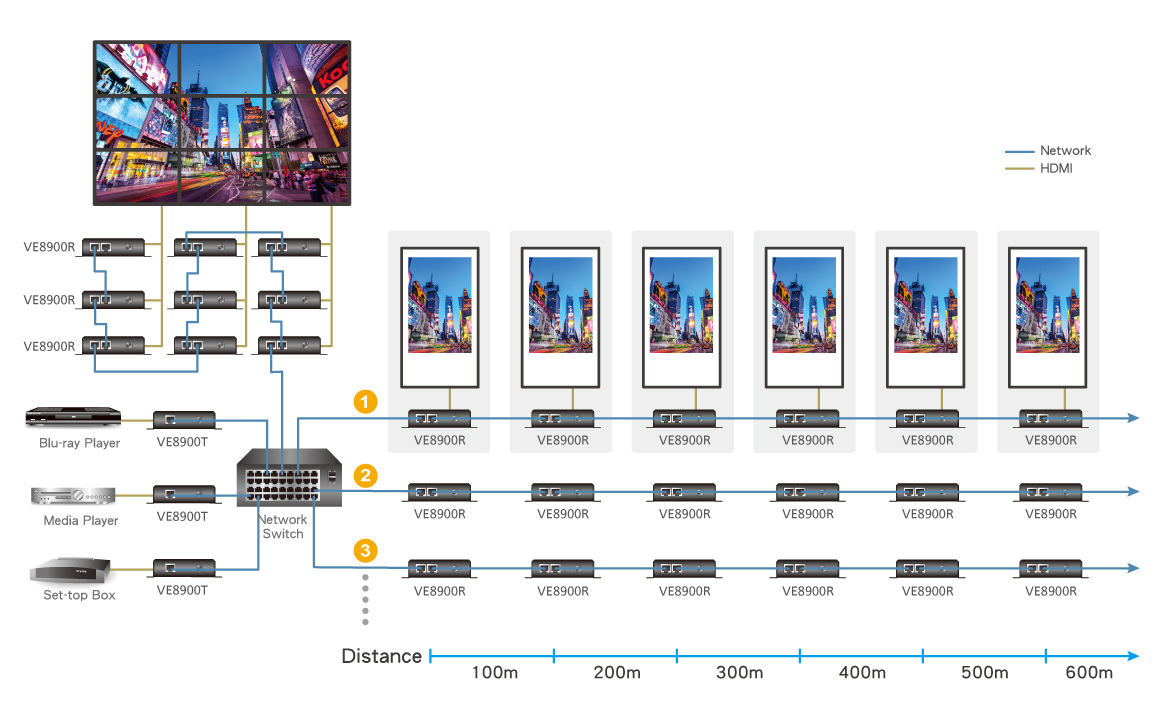

• Go Further For Less with Daisy Chaining*
  • Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
  • Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
  • Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers

* Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.

• Video Wall Support
  • Supports up to 8 x 8 video wall (64 displays)*
  • Supports horizontal or vertical (90° rotation) display orientation
  • Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI

*Depends on your network architecture, please contact ATEN representatives for more details.

• Embedded / De-embedded Audio Support
  • Audio stream can be extracted from the HDMI stream and delivered as a separate audio signal
• Multiple Control Channels
  • Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
  • USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals
  • Bi-directional IR Channel – IR transmission is processed one way at a time
  • RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and barcode scanners

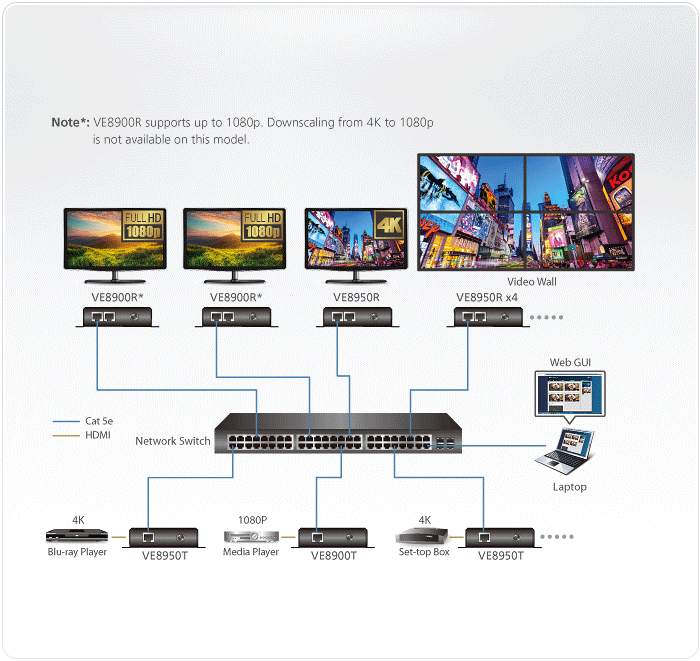

Diagram
