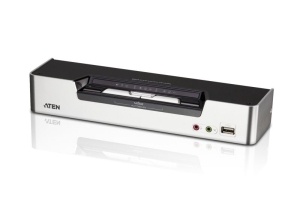

Aten 2-Port USB DVI Dual-Link Dual-Display/Audio KVMP
Switch
The CS1642A 2-Port USB DVI Dual View KVMP Switch is a multi-application
device that integrates a 2-port KVM switch with 2-port USB hub. The newest
version now supports Quad-View functionality with two Dual View KVM Switches
connected.
The new CS1642A features multi-view capabilities, which allow two switches to
be daisy chained for a dual, triple, or quadview display across multi-monitor
installations. The CS1642A supports advanced nVidia 3D Vision ready 120Hz 3D
displaying,allowing you to manage various 3D visual effects. It allows you to
manipulate all connected computers from a single console to save resources and
work space. It enables each computer to access connected peripherals on a
one-computer-at-a-time basis, making it ideal for users who need delicate visual
effects and multi-tasking on several computers. The CS1642A is perfect for
graphic designers, banking and financial consultants, gamers and medical
professionals-demanding a high quality switch that provides stunning color,
clarity and functionality.
Features
- One dual-screen USB console controls two/four dual-screen computers and
two additional USB devices
- Multi-View Display – Easily connect two CS1642A/1644A's units for a second
dual-screen setup controlled through a single connection
- Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D
displays up to 1920 x 1200 at 120Hz (DVI Single link)
- Supports widescreen resolutions
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with DVI
specifications; and HDCP compliant
- Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun,and
FreeBSD
- Sun/Mac keyboard support and emulation **
- Video DynaSync, exclusive ATEN technology, to eliminate boot-up display
problems and optimizes resolution when switching between ports

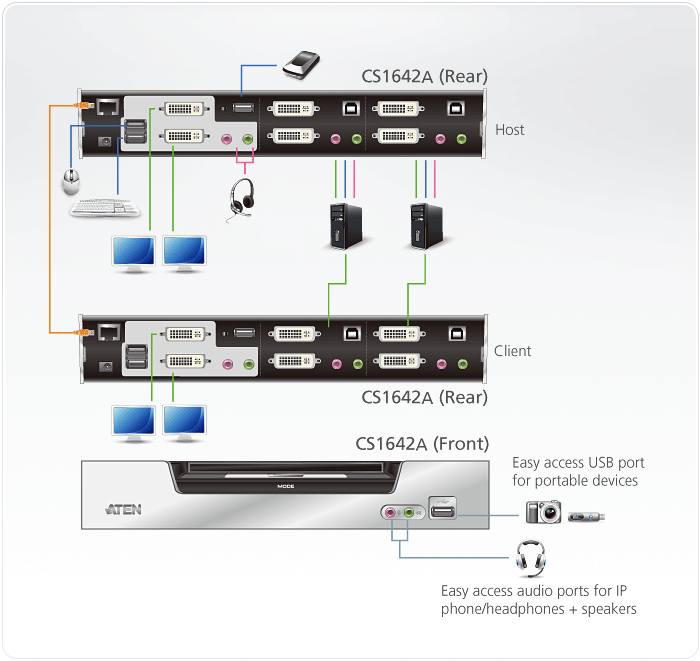

Diagram
Specifications
|
Computer Connections |
2 |
|
Port Selection |
Hotkey, Pushbutton, Mouse |
|
|
|
|
Connectors |
|
|
Console Ports |
2 x USB Type A Female (rear panel) |
|
|
2 x DVI-I Female (White) |
|
|
1 x 3.5mm Audio Jack Female (Green) |
|
|
1 x 3.5mm Audio Jack Female (Pink) |
|
KVM Ports |
2 x USB Type B Female |
|
|
4 x DVI-I Female (white) |
|
|
2 x 3.5mm Audio Jack Female (Green) |
|
|
2 x 3.5mm Audio Jack Female (Pink) |
|
Daisy Chain Ports |
1 x RJ-45 Female (rear panel) |
|
Power |
1 x DC Jack |
|
USB Hub |
2 x USB Type A Female (1 x front panel; 1 x rear
panel) |
|
|
|
|
Switches |
|
|
Selected |
3 x Pushbutton |
|
|
|
|
Emulation |
|
|
Keyboard / Mouse |
USB |
|
|
|
|
Video |
DVI Dual Link: 2560 x 1600 @ 60Hz; |
|
|
3D Display: 1920 x 1200 @ 120Hz |
|
Scan Interval |
1-99 seconds (default: 5 secs.) |
|
Power Consumption |
DC5.3V:3.77W:43BTU |
|
|
|
|
Environmental |
|
|
Operating Temperature |
0–50°C |
|
Storage Temperature |
-20–60°C |
|
Humidity |
0-80% RH, Non-condensing |
|
|
|
|
Physical Properties |
|
|
Housing |
Plastic, Metal |
|
Weight |
0.56 kg ( 1.23 lb ) |
|
Dimensions (L x W x H) |
26.23 x 7.68 x 4.40 cm |
|
|
(10.33 x 3.02 x 1.73 in.) |
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
|
Package Contents |
1x CS1642A 2-Port USB DVI Dual View KVMPâ„¢ Switch |
|
|
2x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft) |
|
|
2x DVI-D DL Cable (1.8m/6ft) |
|
|
1x Power Adapter |
|
|
1x User
Instructions |
