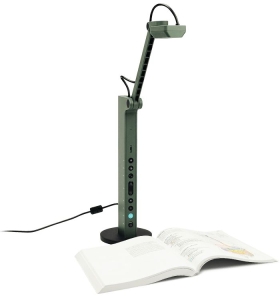

IPEVO VZ-R HDMI/USB Dual-Mode 8MP Document Camera

Ipevo VZ-R HDMI/USB Dual-Mode 8MP Document Camera

Direct HDMI projection to TV and projector. No computer required.

VZ-R HDMI/USB Dual Mode 8MP Document Camera captures all your material-documents, textbooks, artwork, devices and 3D objects-and streams real-time images directly to your TV. It is also compatible with most projectors and monitors with an HDMI input.

Note: VZ-R needs to be powered on when used in HDMI mode. You can plug it into a wall outlet using any of your phone or tablet 5V/1A USB power adapter, or, connect it to a powered USB port of your TV, projector or computer. A power bank will work too.

Compatible with different software in USB mode. One document camera, many uses.

Use VZ-R in its *USB mode with a computer (Mac, Windows PC or Chromebook) via USB when an HDMI connection is not available. You can then project real-time images to a large screen through a projector connected to your computer. When in USB mode, VZ-R is compatible with a variety of software, allowing you to use it in different ways.

You may use it with our newly developed IPEVO Visualizer software that features an intuitive UI and borderless window display to present student work, or, create flipped classroom videos with video recording software such as Camtasia or OBS. Additionally, you can even double it up as a webcam for online meetings, video conferencing or remote teaching when used with video conferencing software such as GoToMeeting, Skype or Google Hangouts.

*VZ-R features a built-in microphone that is only functional in USB mode.

Performance boost with Sony CMOS image sensor and Ambarella SoC.

Fast focus, low noise, excellent color reproduction.

With a Sony CMOS image sensor and a powerful Ambarella integrated system-on-a-chip (SoC), you’ll find enhanced performance in areas of focusing speed, noise reduction under low-light conditions and reproduction of colors as compared with previous models of IPEVO doc cams. This lets you teach or present with lesser disruptions, distortions and latency even in dimly lit environments.

Glass fiber reinforced stand. Stronger yet lighter.

Inside VZ-R’s stand, you’ll find a type of glass fiber reinforced thermoplastic-GVX-5H (developed by the Swiss company EMS-GRIVORY). Having the strength of metal yet light-weighted than most, GVX-5H has been widely used to replace metal components in many different applications. With it, you’ll enjoy increased durability as VZ-R is less likely to break from heavy daily usage. And talking about lightweight, you’ll appreciate VZ-R’s portability as it only weighs 2.2 lbs (1 kg)-perfect for swapping between classrooms or conference rooms!

Swiveling head and multi-jointed stand. Capture from different height, angle and orientation.

With a swiveling head and strengthened multi-jointed stand, you’re free to position VZ-R at different heights, angles and various orientations for capturing your material.

Small footprint. Big impact.

VZ-R’s small footprint allows you to do more with a limited amount of space. Its base won’t take up too much of your desk, and the unit can be folded together and transported between classrooms, home or office.

To reduce packaging footprint, VZ-Rs base is not attached to its stand right out of the box. Watch this video to learn how to attach the base.

Built-in LED light. Light up when you need it.

VZ-R features a built-in LED light that gives you additional illumination for capturing material in dimly lit environments. It is ideal for use in classrooms or conference rooms that don’t have adequate lighting.

Features at a Glance

• Streams real-time images directly to TVs, projectors, or monitors via HDMI.
• Dual mode versatility use it with your computer via *USB mode when an HDMI connection is not available.*VZ-R features a built-in microphone that is only functional in USB mode.
• Compatible with a variety of third-party software such as Skype, Google Hangouts, GoToMeeting, Camtasia, OBS and more.
• 8 Megapixel camera lets you capture stunning details of your material.
• Performance boost with Sony CMOS image sensor and Ambarella integrated system-on-a-chip (SoC) faster focusing speed, better noise reduction under low-light conditions and excellent reproduction of colors for lesser disruptions, distortions and latency.
• Stronger yet lighter with glass fiber reinforced stand (GVX-5H). Increased durability for daily usage yet light-weighted (2.2 lbs/1 kg) for swapping between classrooms or conference rooms.
• Capture from different height, angle and orientation with VZ-Rs swiveling head and multi-jointed stand.
• Small footprint and vertical design give you a decisive space advantage.
• Built-in LED light for capturing material in dimly lit environments.
• Adjust real-time images instantly with buttons conveniently located on VZ-R. You can rotate, adjust exposure, apply video filters and do much more.

Specifications

• 8.0 Megapixel camera
• High-definition resolutionsup to 3264 x 2448 (USB mode), and up to 1920 x 1080 (HDMI mode)
• Full autofocus lens
• Up to 30 fps live video streaming at 1920 x 1080
• HDMI output
• USB outputUSB 2.0 Video Class (UVC) interface
• Mac, Windows PC &Chromebook compatible
• Max shooting area:
  10.6 x 18.9 (270 x 480mm) [16:9]
  13.5 x 18.1 (344 x 460mm) [4:3]
• D x W x H (when folded):
  With base4.1 x 4.2 x 11.8 (10.5 x 10.8 x 30.1cm)
  Without base3.1 x 1.5 x 11.4 (7.8 x 4.0 x 29.0cm)
• Weight: 2.2lbs (1.0kg)
• USB cable length: 4.9ft (150cm)
• Color: Green
• Model name: CDVH-01IP

System Requirements

For Mac:
Minimum Requirements

• Intel Core 2 Duo 2.4GHz CPU or higher
• OS X 10.10 or higher
• 2 GB RAM
• 200MB of free hard disk space
• 256MB of dedicated video memory
  (For lag-free live streaming up to 1280 x 720)

Recommended Requirements

• Intel Core i5 CPU or higher
• OS X 10.10 or higher
• 2 GB RAM
• 200MB of free hard disk space
• 256MB of dedicated video memory
  (For lag-free live streaming up to 3264 x 2448, and video recording of 1920 x 1080)

For Windows:

• Microsoft Windows 7 Service Pack 1 or higher
• Intel Core i3 CPU 530 @ 2.93GHz or higher
• 4 GB RAM
• 200MB of free hard disk space
• 256MB of dedicated video memory

Works on

• PC
• Mac
• Chromebook

Package Contents

• VZ-Rs camera and stand
• VZ-Rs Base
• USB cable
• Screwdriver
• Screws x 4
